Instrument Panel Speaker

Instrument Panel Speaker

Removal





1 Remove the instrument panel center speaker grille.

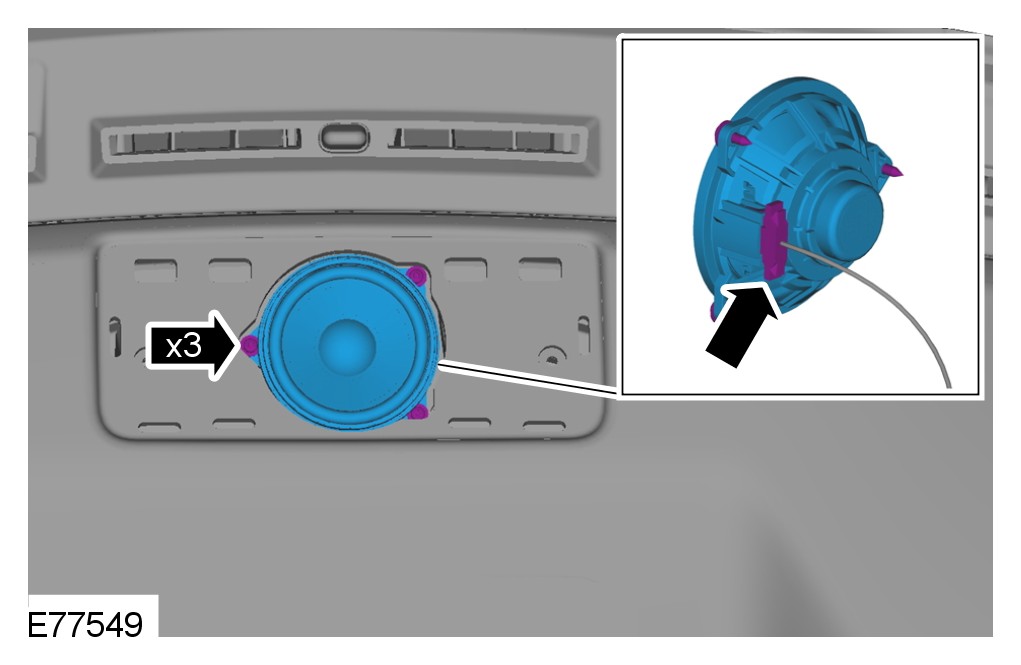

2 Remove the instrument panel speaker.
- Remove the 3 screws.
- Disconnect the electrical connector.

Installation
1 Install the instrument panel speaker.
- Connect the electrical connector.
- Tighten the 3 screws.
2 Install the instrument panel center speaker grille.
