Front Door Speaker

Front Door Speaker

Removal
1 Remove the front door trim panel. For additional information, refer to Front Door Trim Panel
2 Remove the front door speaker wiring harness.

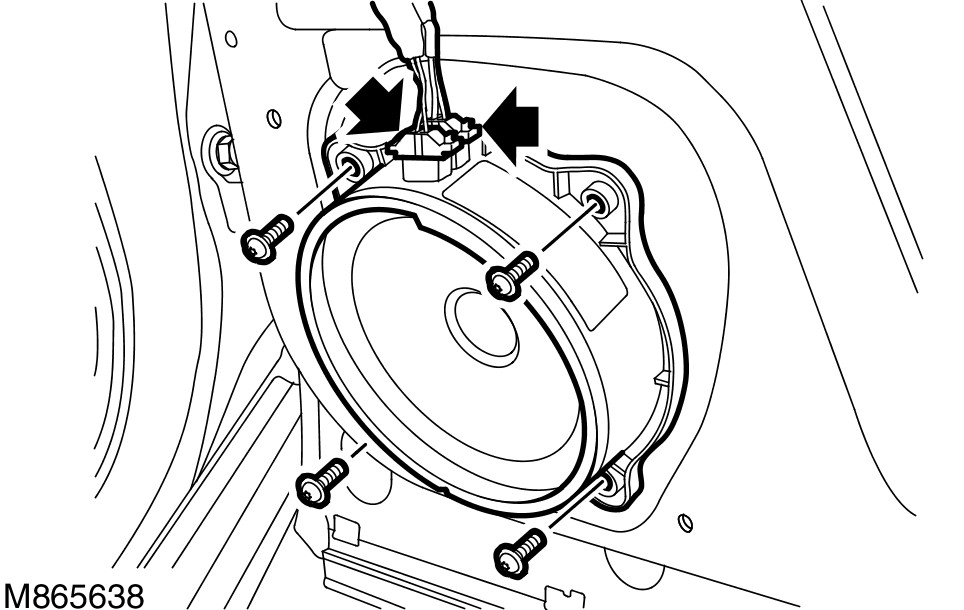

3 Remove the front door speaker.
- Remove the 4 screws.
- Disconnect the electrical connector.

Installation
1 Install the front door speaker.
- Connect the electrical connector.
- Install the screws.
2 Install the front door speaker wiring harness.
3 Install the front door trim panel. For additional information, refer to Front Door Trim Panel
