Speaker: Description and Operation

Speakers

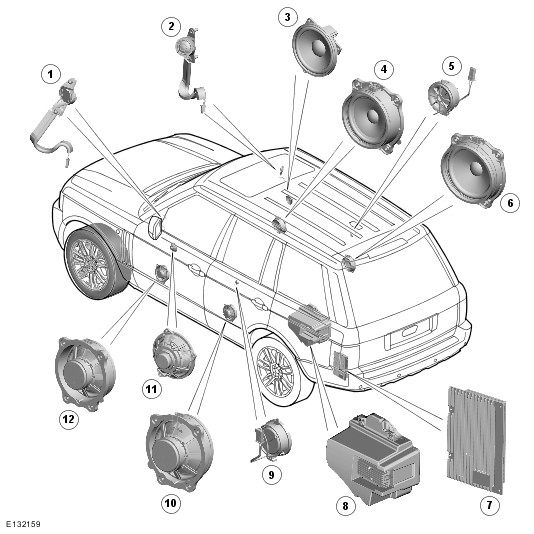

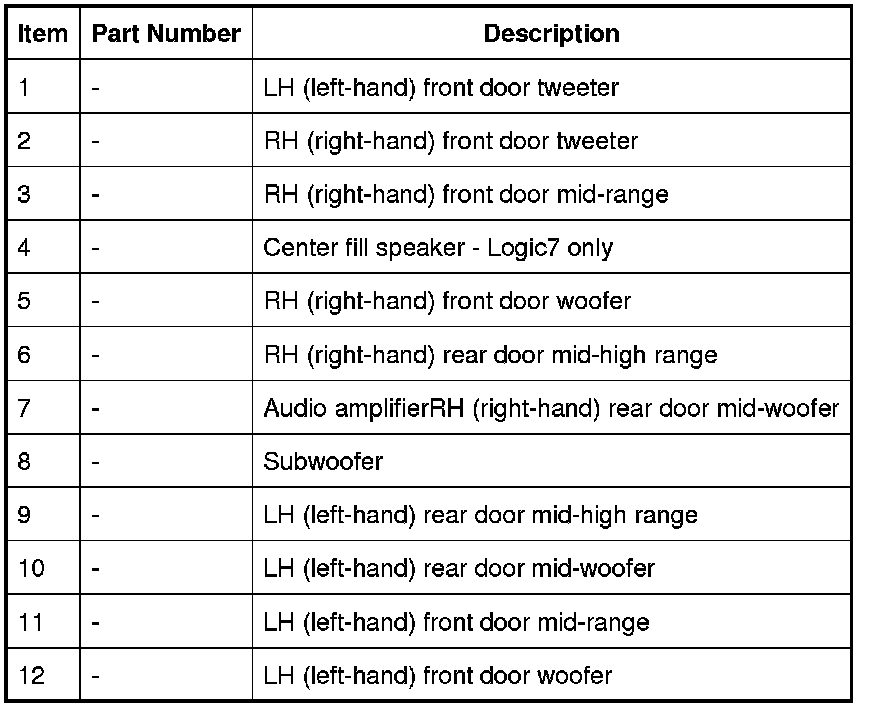

SPEAKER COMPONENT LOCATION - DSP SYSTEM

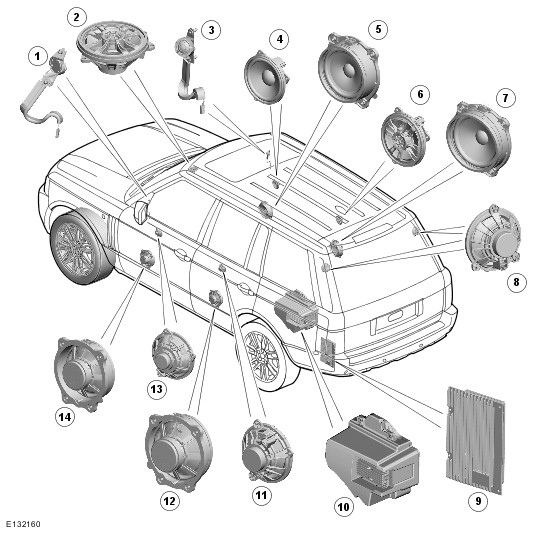

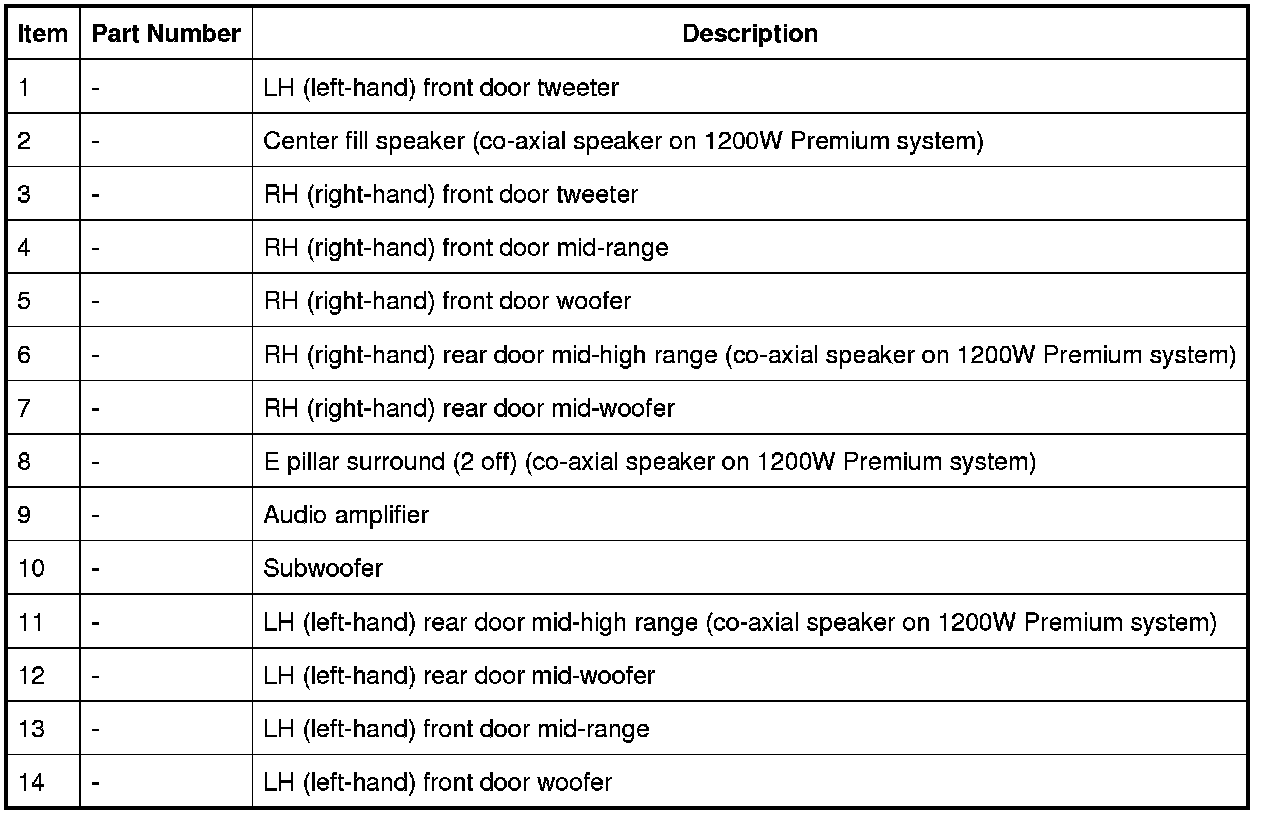

SPEAKER COMPONENT LOCATION - LOGIC7/LOGIC7 HD 1200W PREMIUM SYSTEM









The speaker configuration depends on the level of audio unit fitted to the vehicle. Three systems are available; DSP, Logic7 and Logic7 HD Premium. The following details the speaker configuration and control for each system.

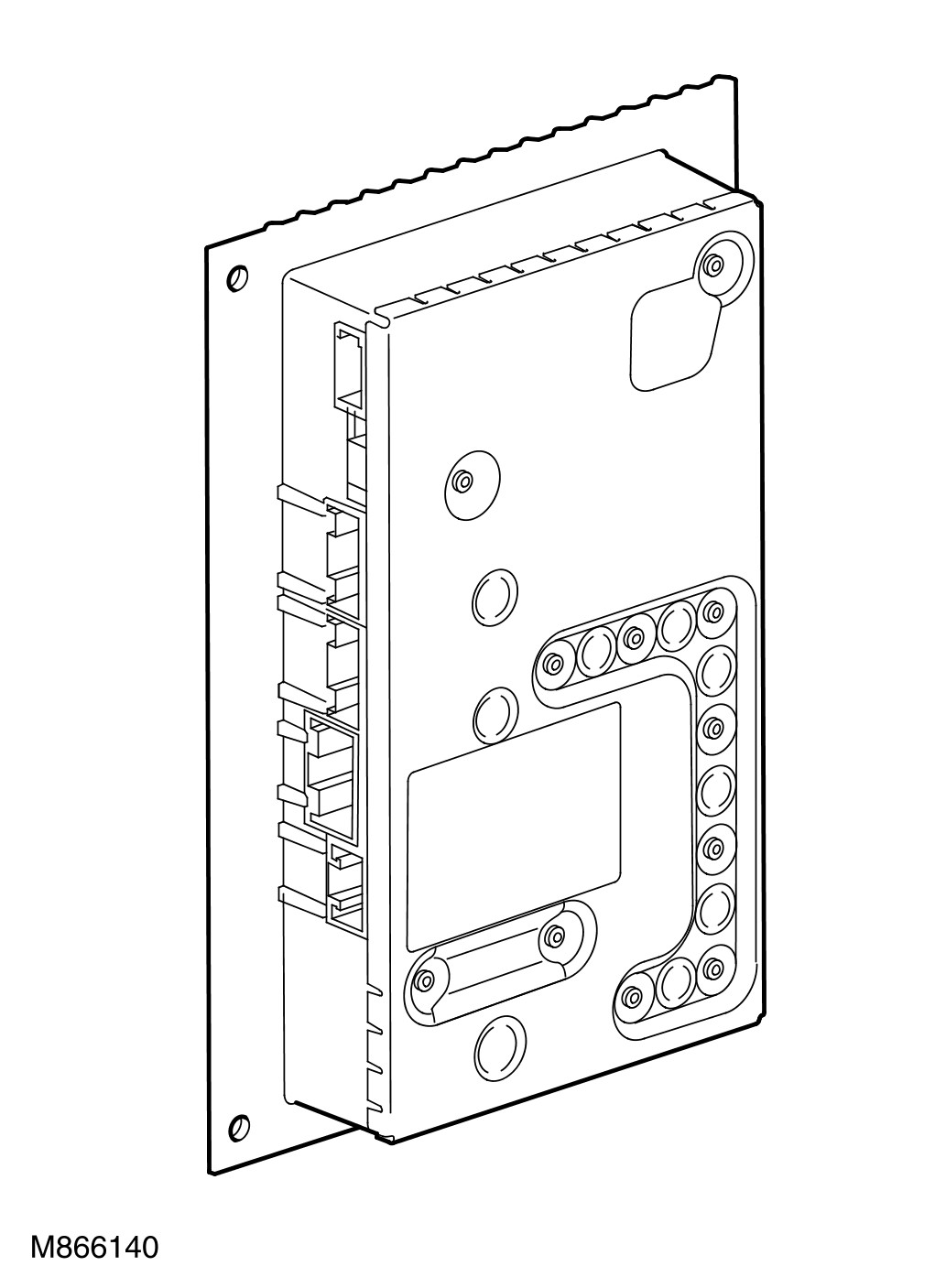

DSP SYSTEM AMPLIFIER





The Digital Sound Processor (DSP) amplifier is located in the rear LH (left-hand) side of the luggage compartment. The DSP amplifier drives 11 speakers; two front door mid-range, four front and rear door bass, four front and rear door tweeters on eight channels and a passive subwoofer. The amplifier produces 320 Watts of digital amplification to power the speakers.

HARMAN KARDON LOGIC7/LOGIC7 HD 1200W PREMIUM SYSTEM AMPLIFIER





The Logic7 and Logic7 HD 1200W Premium system amplifiers are located in the rear LH (left-hand) side of the luggage compartment.

Logic7 System
The Logic7 amplifier drives 14 speakers on 5.1 surround channels; two front door mid-range, four front and rear door bass woofers, two front and rear door tweeters on eight channels and a passive subwoofer as on the DSP system, but with two additional surround sound speakers located in the upper tail door and a center surround speaker located in the fascia.
The Logic 7 system amplifier produces 720W of digital amplification to power the speakers.

Logic7 HD 1200W Premium System
The Logic7 HD 1200W Premium system amplifier drives 19 speakers on 5.1 surround channels; two front door mid-range, two front door bass woofers, two front mid range, two front tweeters, two rear door bass woofers, two rear door co-axial mid-high range, a passive subwoofer as on the DSP system, with a co-axial surround sound speaker located in each E pillar and a center co-axial surround speaker located in the instrument panel.
The Logic7 HD 1200W Premium system amplifier produces 1200 Watts of digital amplification to power the speakers.

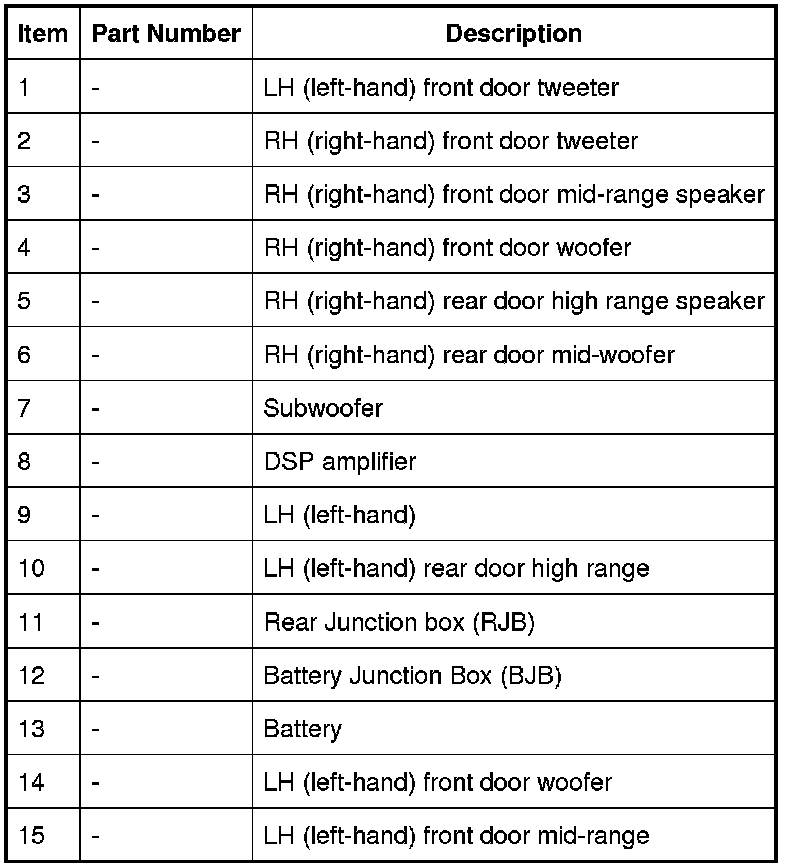

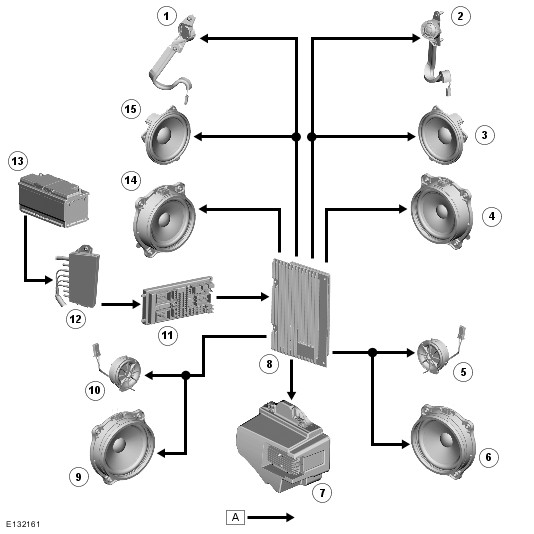

CONTROL DIAGRAM - DSP SPEAKER SYSTEM

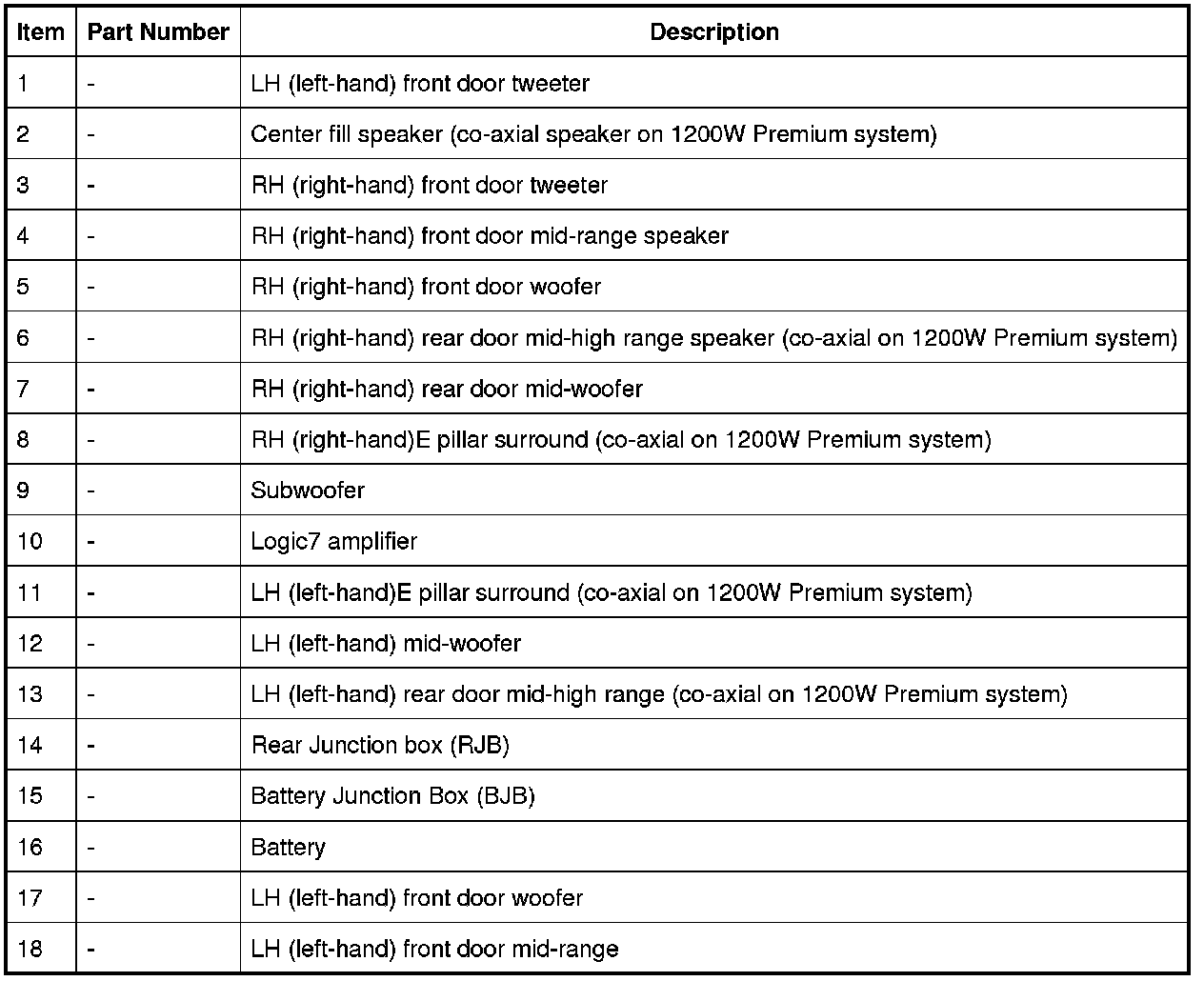

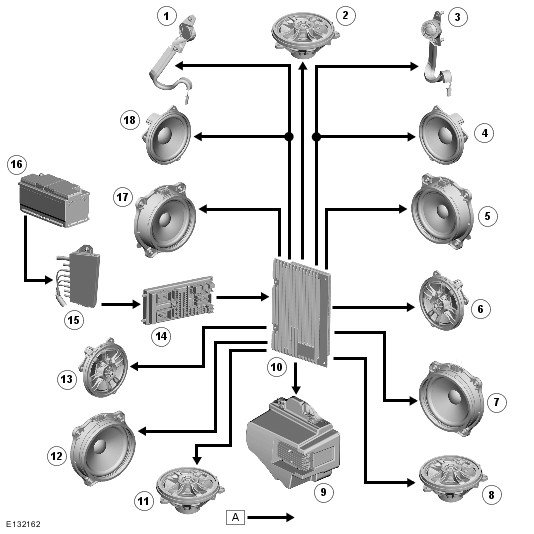

CONTROL DIAGRAM - LOGIC7/LOGIC7 HD 1200W PREMIUM SPEAKER SYSTEM
