Rear Parking Aid Camera Wiring Harness





Rear Parking Aid Camera Wiring Harness

Removal

CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
1 Remove the liftgate upper trim panel. For additional information, refer to Liftgate Upper Trim Panel Liftgate Upper Trim Panel
2 Remove the LH rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel
3 Repeat procedure for the other side.




4
NOTE:
LH illustration shown, RH is similar.
Remove the RH loadspace trim panel.




5 Remove the towing ball.
- Release the strap.




6 Remove the towing ball holder.
- Remove the 2 bolts.




7 Release the liftgate aperture seal.




8 Remove the headliner retainer.
- Remove the Torx bolt.
- Repeat to the other side.




9 Carefully release the headliner for access.
- Carefully release the clip.

10 Remove the rear seats. For additional information, refer to Rear Seat Rear Seat

11 Remove the C-pillar lower trim panel For additional information, refer to C-Pillar Lower Trim Panel C-Pillar Lower Trim Panel

12 Repeat procedure for the other side.

13 Remove the B-pillar trim panel. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel

14 Repeat procedure for the other side.





15 Remove the 2 rear bolts from the LH front seat.





16 Release the LH front seat.
- Move the LH front seat fully backwards.
- Remove the 2 front seat front bolts.

17 Remove the RH front seat. For additional information, refer to Front Seat Front Seat





18 With assistance remove the LH front seat.
- Disconnect the 4 electrical connectors.





19
NOTE:
Left-hand shown, right-hand similar.
Remove the front scuff plate trim panel.
- Release the 7 clips.
- Repeat to the other 3 scuff plate trim panels.





20 Remove the B-pillar floor covering trim panel.
- Remove the 2 clips.
- Repeat to the other side.





21 Remove the 2 center wiring harness covers.
- Remove the 4 clips.
- Remove the nut.





22 Remove the parking aid camera module cover.
- Remove the 2 scrivets.
- Repeat to the other side.





23 Release the seat heating module bracket.
- Remove the 2 nuts.





24 Remove the rear seat brackets.
- Remove the 4 Torx bolts.





25 Remove the wiring harness cover.
- Remove the 6 bolts.





26
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
If installed, release the wiring harness clip.





27 Disconnect the camera wiring harness.





28 Disconnect the camera wiring harness.

Installation





1 Remove the connectors from the camera overlay wiring harness.
- Remove the locking tab.
- Carefully release the clip.
- Apply suitable tape to protect the end of the camera overlay wiring harness.
- Repeat to the other connector.




2
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the camera overlay wiring harness.




3 Insert the camera overlay wiring harness under the floor console.
- Route the camera overlay wiring harness along the main body wiring harness up to the parking camera module.




4 Install the connector to the camera overlay wiring harness.
- Remove the protective tape.
- Install the electrical connector.
- Secure the locking tab.




5 Connect the camera overlay wiring harness.




6
CAUTION: Make sure that excessive force is not used when installing the tie straps to the wiring harness. Failure to follow this instruction may result in damage to the harness.
Using suitable tie straps, secure the camera overlay wiring harness to the main body wiring harness.
7 Feed the camera overlay wiring harness to the rear of the vehicle along the main body wiring harness.




8 Release the liftgate conduit.
- Release the 2 grommets.




9 Feed the camera overlay wiring harness through the liftgate conduit.





10 Install the connector to the camera overlay wiring harness.
- Remove the protective tape.
- Install the electrical connector.
- Secure the locking tab.
- Make sure the camera overlay wiring harness protrudes the same distance as the existing camera wiring harness.





11 Connect the camera overlay wiring harness.





12
CAUTION: Make sure that a wiring harness clip is installed to the vehicle. Failure to follow this instruction may result in damage to the vehicle.
Secure the camera overlay wiring harness.





13 Secure the liftgate conduit.
- Secure the 2 grommets.





14 Using suitable tie straps, secure the camera overlay wiring harness to the main body wiring harness.





15 Install the wiring harness cover.
- Tighten the 6 bolts to 25 Nm.

16 Install the floor covering.





17 Install the rear seat backrest retaining brackets.
- Tighten the 4 Torx bolts to 45 Nm.





18 Secure the seat heating module bracket.
- Install the 2 nuts.





19 Install the parking aid camera module cover.
- Install the 2 scrivets.





20 Install the 2 center wiring harness covers.
- Install the nut.
- Secure the 4 clips.





21 Install the B-pillar floor covering trim panel.
- Secure the 2 clips.
- Repeat to the other side.





22 With assistance, install the LH front seat.
- Connect the 4 electrical connectors.

23 Install the RH front seat. For additional information, refer to Front Seat Front Seat





24
NOTE:
Make sure the 3 seat rail covers are fitted to their original positions. Note: The inner front seat rail does not have a seat rail cover.
Install the 2 front bolts to the front seat.
- Align the front seat locating pegs.
- Position the front seat fully rearwards.
- Tighten the front seat front bolts to 45 Nm.





25
NOTE:
Make sure the 3 seat rail covers are fitted to their original positions. Note: The inner front seat rail does not have a seat rail cover.
Install the 2 rear bolts to the front seat.
- Position the front seat fully forwards.
- Tighten the front seat rear bolts to 45 Nm.

26 Install the LH B-pillar upper trim panel. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel





27
CAUTION: Make sure the safety belt is secure and correctly installed.

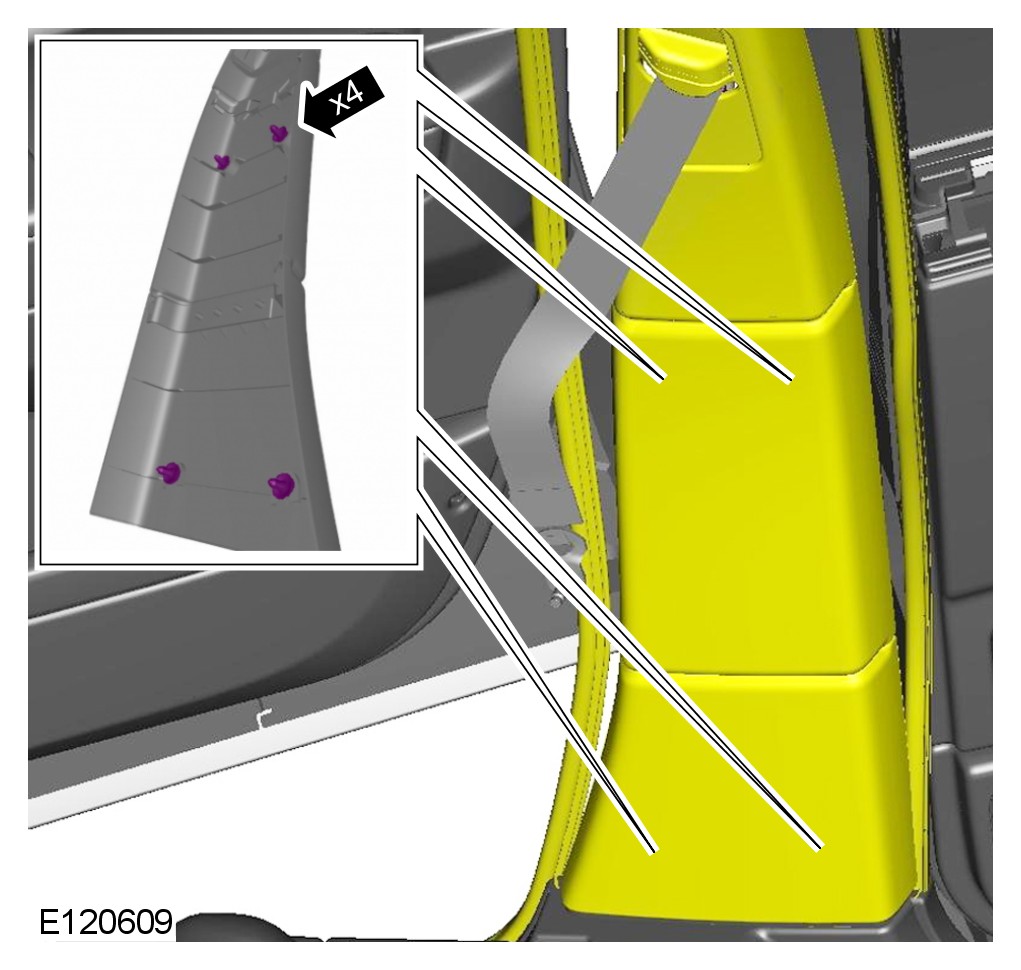

Install the RH B-pillar trim panel.





28
NOTE:
Make sure the safety belt is operating correctly.
Secure the RH B-pillar trim panel.
- Secure the 4 clips.
- Secure the front and rear door aperture weatherstrips.

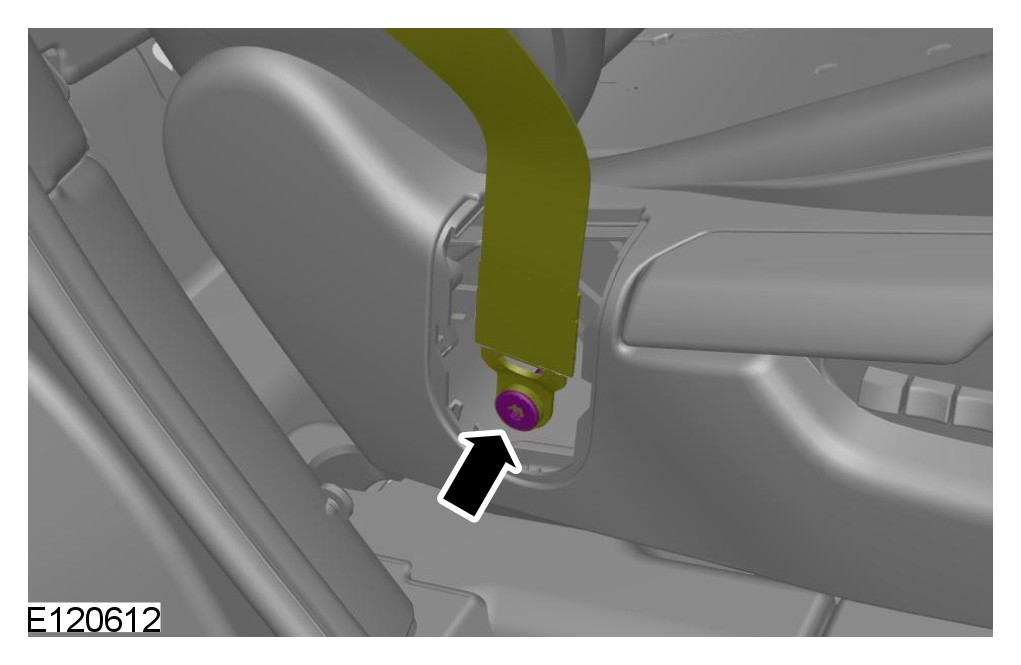

29 Attach the RH safety belt lower anchor to the seat.
- Install a new bolt and tighten to 45 Nm.





30 Install the safety belt lower anchor bolt cover.

31 Install the C-pillar lower trim panel. For additional information, refer to C-Pillar Lower Trim Panel C-Pillar Lower Trim Panel

32 Repeat procedure for the other side.

33 Install the rear seats. For additional information, refer to Rear Seat Rear Seat





34 Secure the headliner.
- Secure the clip.





35 Install the headliner retainer.
- Tighten the bolt to 7 Nm.
- Repeat to the other side.





36 Install the liftgate aperture seal.





37 Install the towing ball holder.
- Tighten the 2 bolts to 25 Nm.





38 Install the towing ball.
- Secure the retaining strap.





39 Install the RH loadspace trim panel.

40 Install the LH rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel

41 Repeat procedure for the other side.

42 Install the liftgate upper trim panel. For additional information, refer to Liftgate Upper Trim Panel Liftgate Upper Trim Panel
