Front Parking Aid Camera Wiring Harness - Bumper Section

Front Parking Aid Camera Wiring Harness - Bumper Section

Removal
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2 Remove the front bumper cover. For additional information, refer to Front Bumper Cover Front Bumper Cover




3
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
NOTE:
Right-hand shown, left-hand similar.

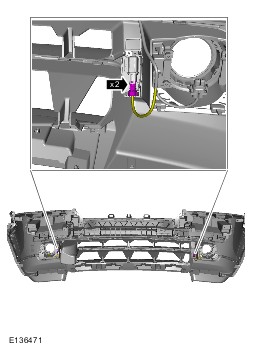

Disconnect the electrical connector.

Installation





1
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the wiring harness




2
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
NOTE:
Right-hand shown, left-hand similar.
Connect the electrical connector.
3
CAUTION: Make sure that excessive force is not used when installing the tie straps to the wiring harness. Failure to follow this instruction may result in damage to the vehicle.
Using suitable tie straps, secure the camera overlay wiring harness to the bumper wiring harness.
4 Install the front bumper cover. For additional information, refer to Front Bumper Cover Front Bumper Cover
