Antenna, Phone: Service and Repair

Cellular Phone Antenna

Removal
1 Remove the access panel from the loadspace trim panel LH.

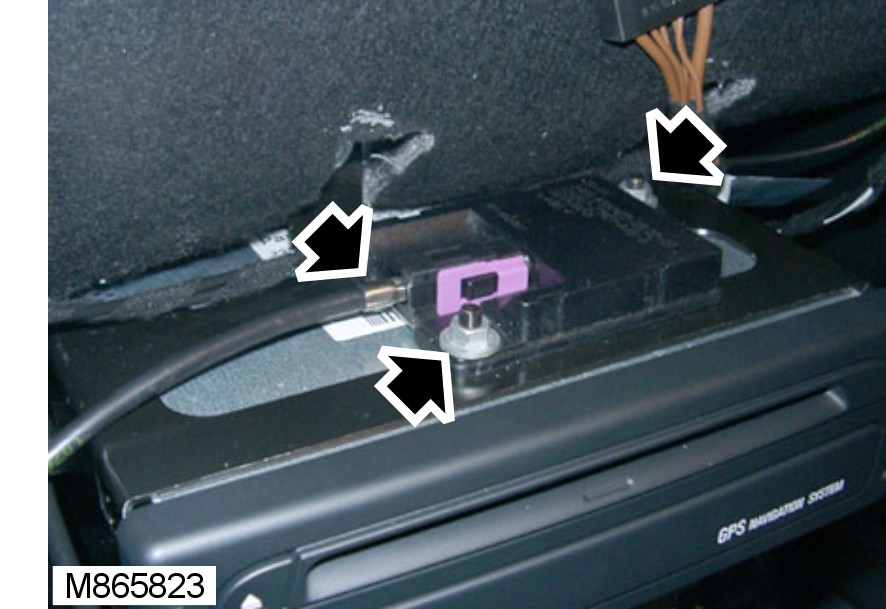

2 Release the cellular phone antenna.
- Remove the 2 nuts.




3 Remove the cellular phone antenna.
- Disconnect the electrical connector.

Installation
1 Install the cellular phone antenna.
- Connect the electrical connector.
2 Secure the cellular phone antenna.
- Tighten the nuts to 6 Nm (4 lb.ft).
3 Install the access panel to the loadspace trim panel LH.
