Antenna Amplifier: Service and Repair

Antenna Module

Removal
1 Remove the access panel from the loadspace trim panel LH.

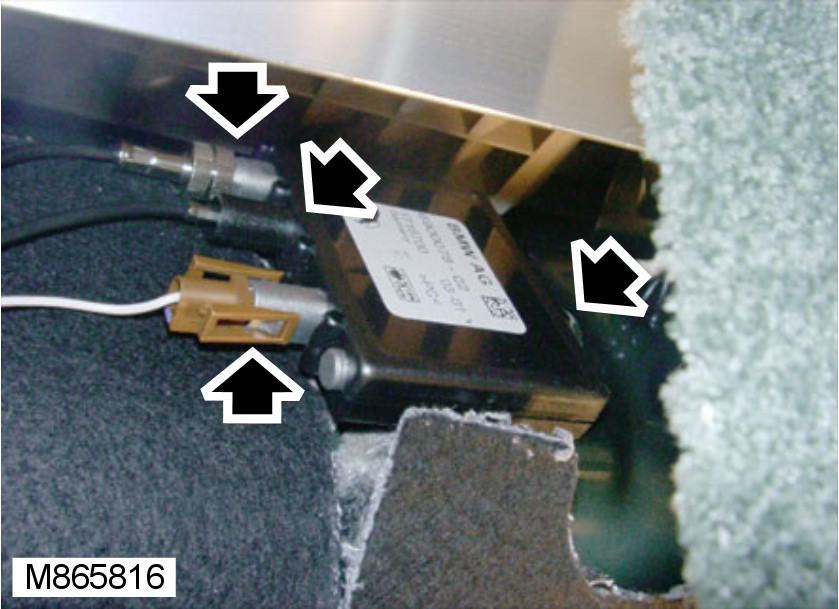

2 Disconnect the antenna module coaxial cable connector.
3 Disconnect the antenna module electrical connector.
4 Disconnect the coaxial cable connector.
- Release the nut.
5 Remove the antenna module.
- Remove the bolt.

Installation
1 Install the antenna module.
- Tighten the bolt to 6 Nm (4 lb.ft).
2 Connect the antenna module coaxial cable connector.
- Tighten the nut.
3 Connect the antenna module coaxial cable connector.
4 Connect the antenna module electrical connector.
5 Install the access panel to the loadspace trim panel LH.
