Home >> Land Rover >> 2011 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Damping Control Actuator >> Locations >> Solenoid-Damper-Rear-LH

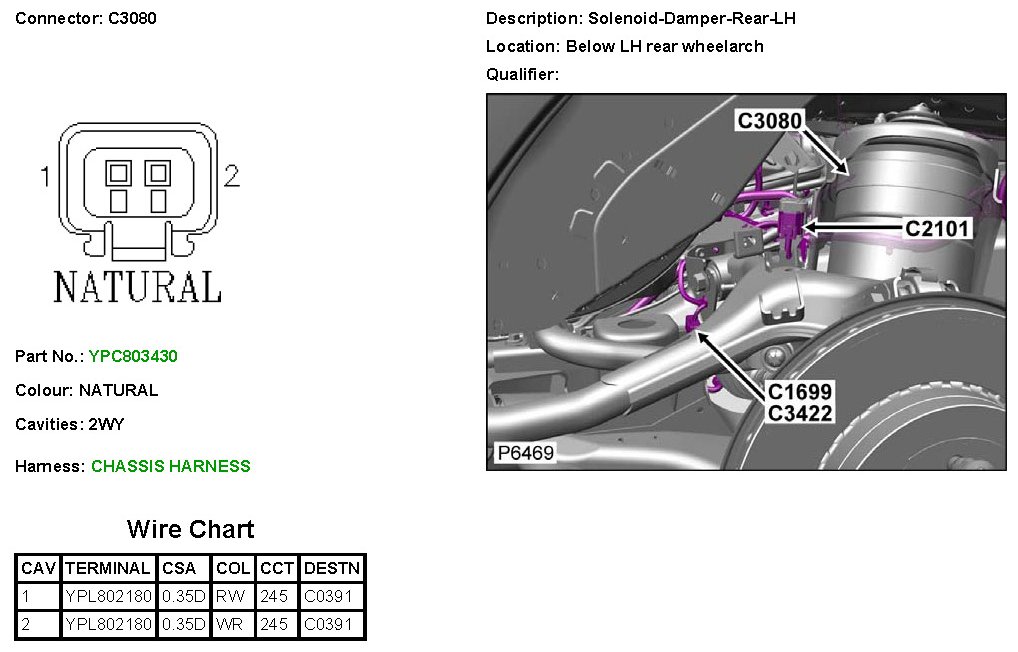

Solenoid-Damper-Rear-LH



C3080


C3080:
