Home >> Land Rover >> 2011 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Locations >> Sensor-Pressure-Air Conditioning

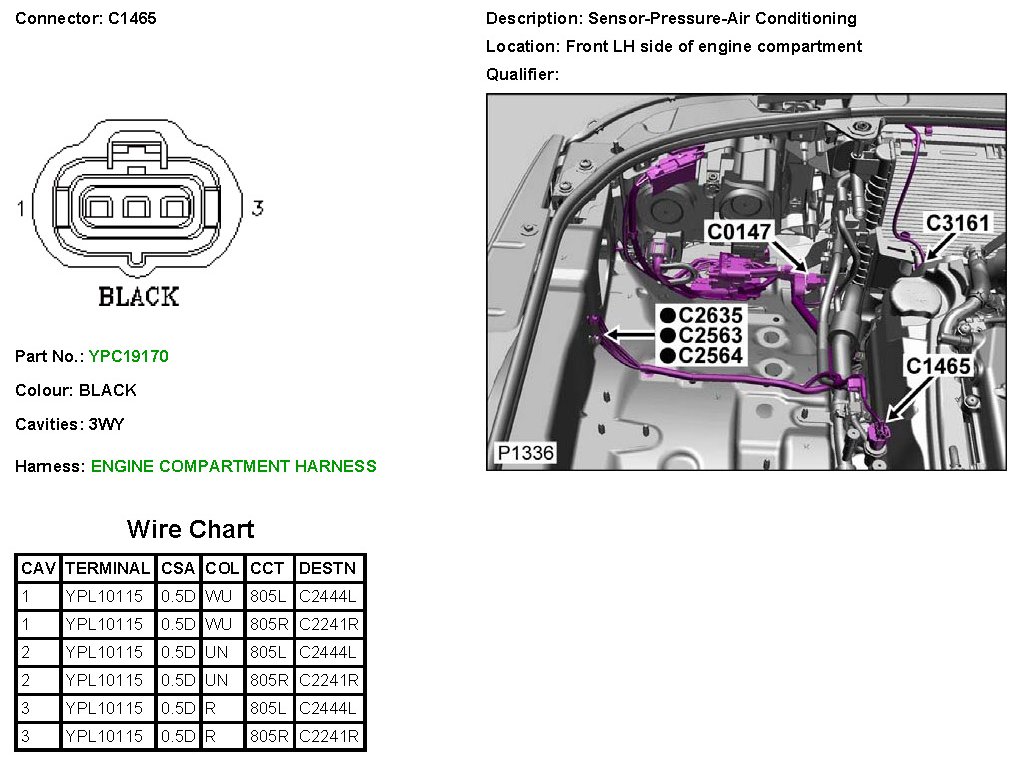

Sensor-Pressure-Air Conditioning



C1465


C1465:
