Side Air Curtain Module

Side Air Curtain Module

Removal

WARNING: It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

WARNING: Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE:
If the SRS component is to be replaced, the bar code of the new unit must be recorded.
1 Disconnect the battery ground cable. For additional information, refer to Specifications
2 Make the SRS system safe. For additional information, refer to Standard Workshop Practices Standard Workshop Practices
3 Remove the headliner. For additional information, refer to Headliner Service and Repair

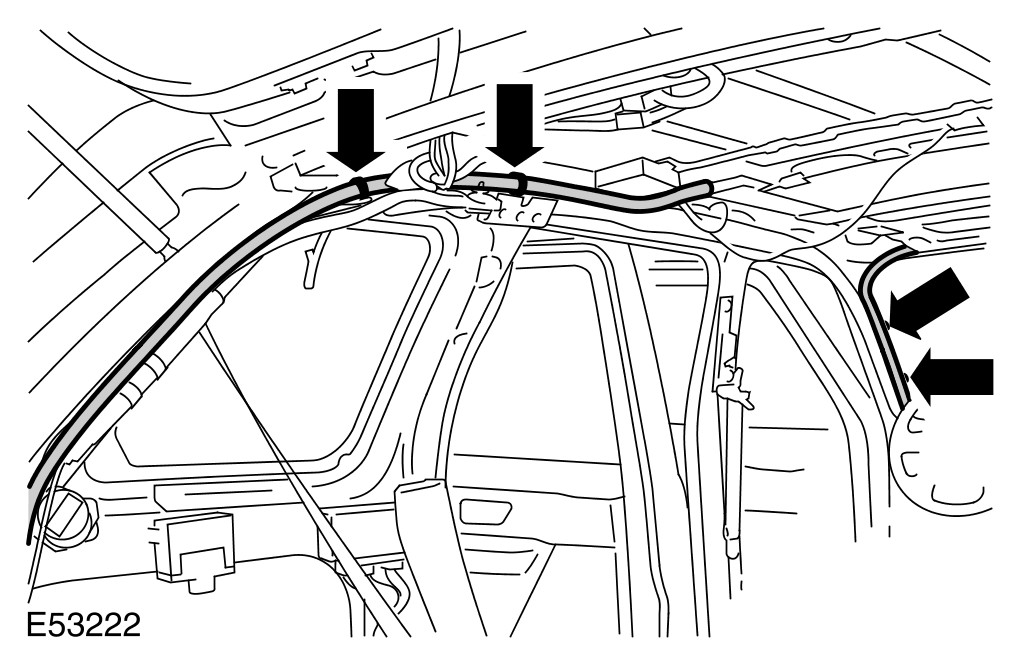

4 Release the roof opening panel drain tube from the securing clips.
- Release from the 2 clips.
- Remove and discard 2 cable ties.




5
NOTE:
If the SRS component is to be replaced, the bar code of the new unit must be recorded.

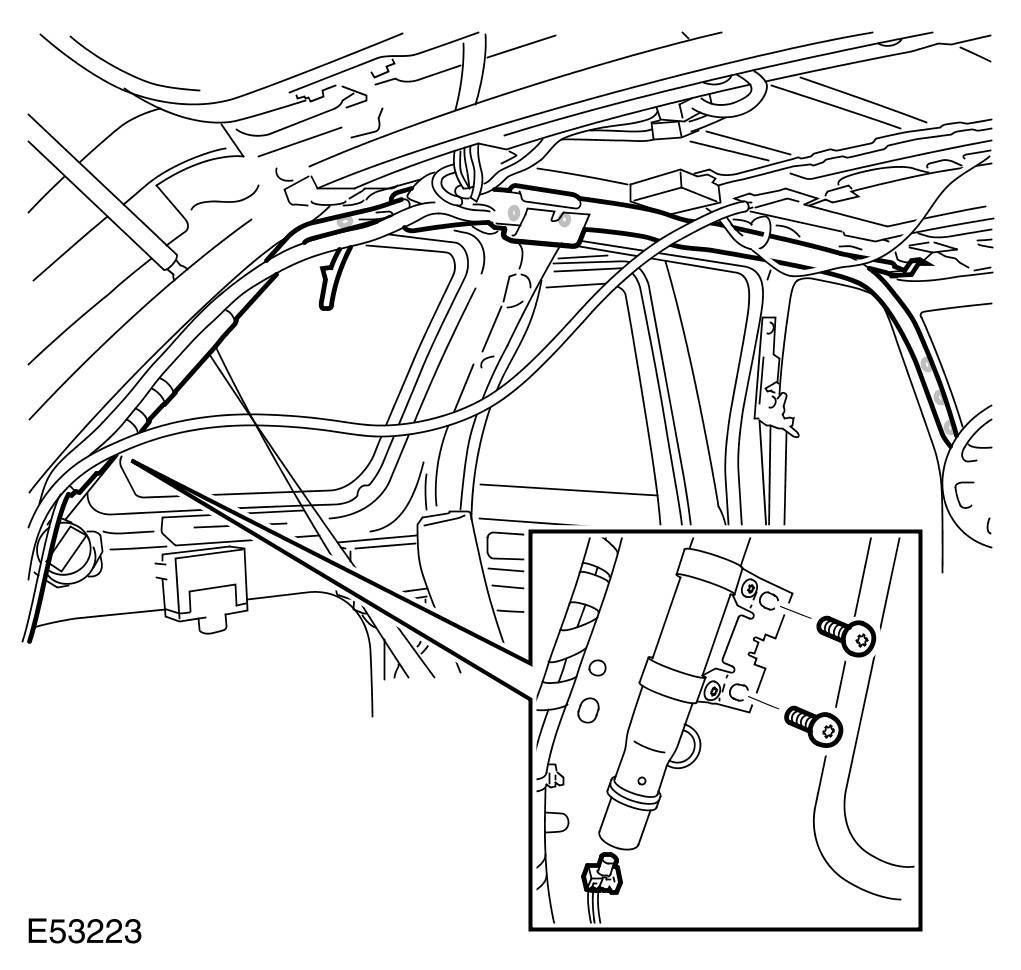

With assistance, remove the side air curtain module.
- Disconnect the electrical connector.
- Remove the 9 Torx bolts.
- Remove the 2 screws.

Installation
1 With assistance, install the side air curtain module.
- Tighten the Torx screws to 10 Nm (7 lb.ft).
- Tighten the screws.
- Connect the electrical connector.
2 Secure the roof opening panel drain tube into the clips.
- Install new cable ties.
3 Install the headliner. For additional information, refer to Headliner Service and Repair
4 Connect the battery ground cable. For additional information, refer to Specifications
