Land Rover
>>
2011
>>
Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Sensors and Switches - HVAC
>>
Ambient Temperature Sensor / Switch HVAC
>>
Locations
>>

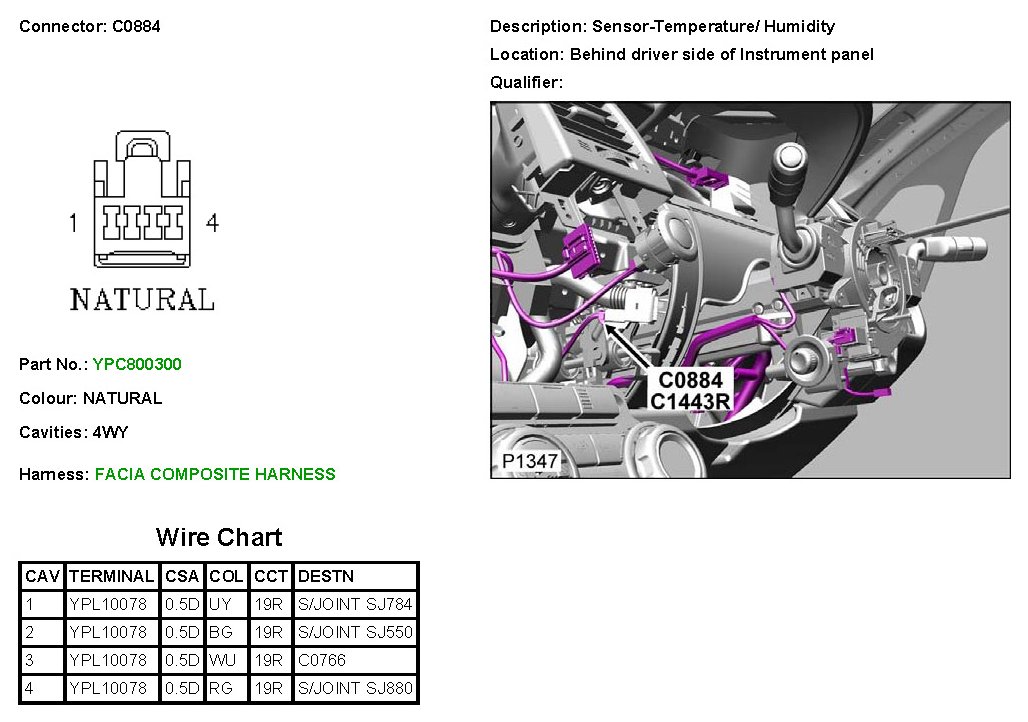

Sensor-Temperature/Humidity
Sensor-Temperature/Humidity
C0884
C0884:
