Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C2819L - C2875T
>>

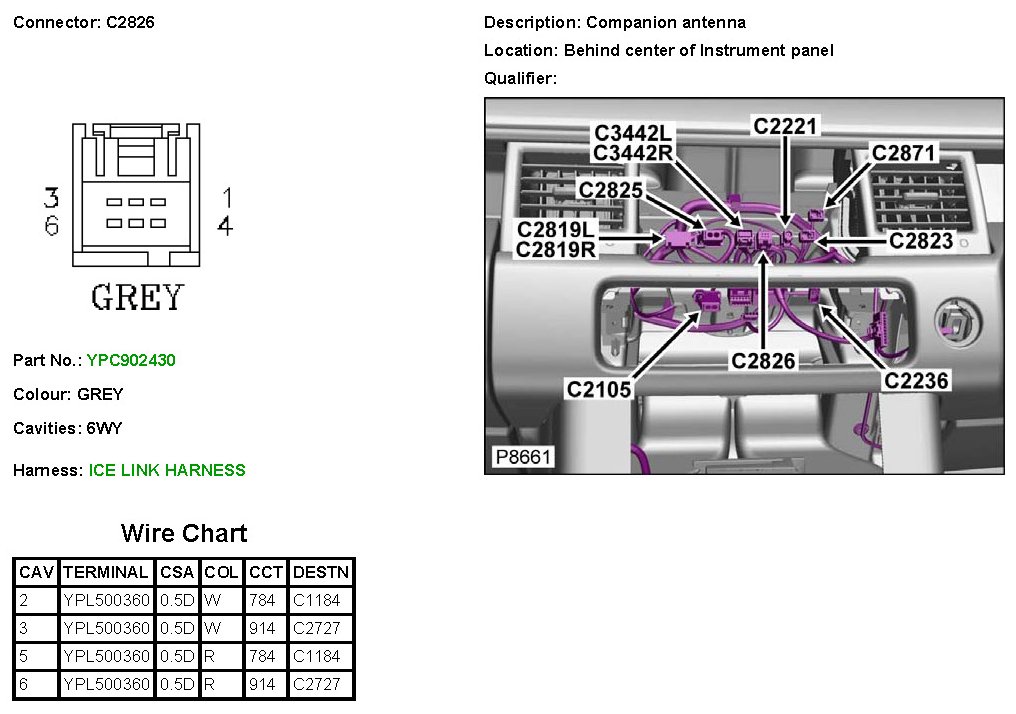

C2826
C2826
C2826
C2826:
