Home >> Land Rover >> 2011 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C2201T - C2299 >> C2293

C2293



C2293

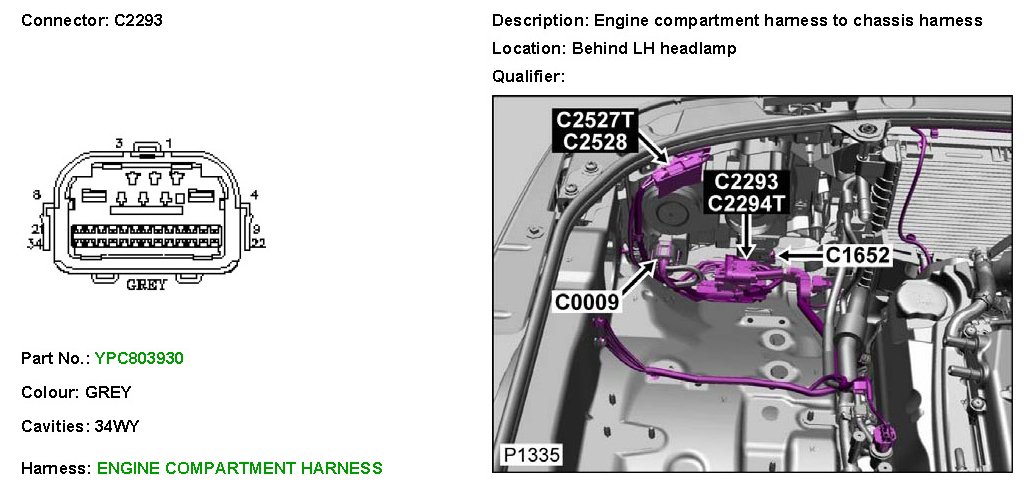

C2293 (Part 1):

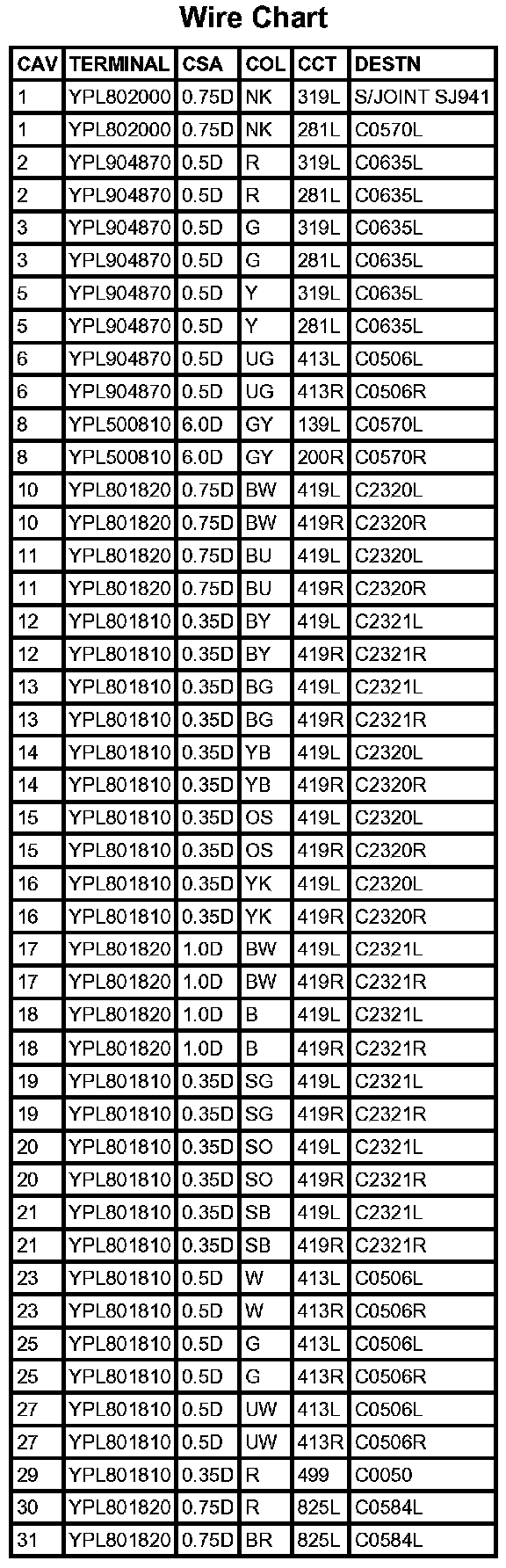

C2293 (Part 2):
