FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Land Rover
>>
2011
>>
Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C1254 - C1396R
>>

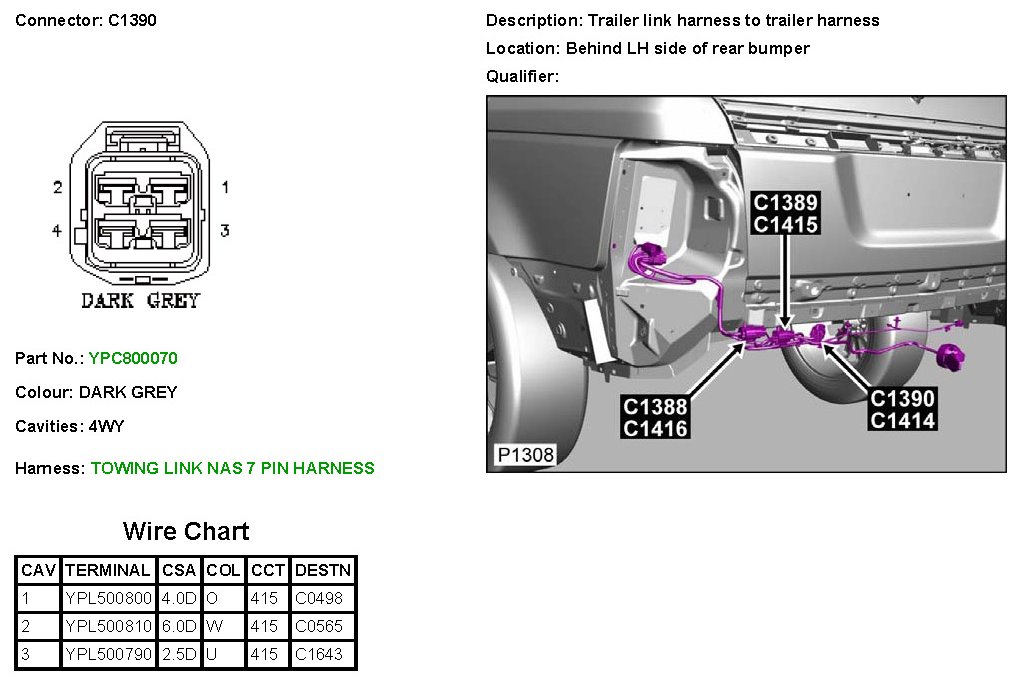

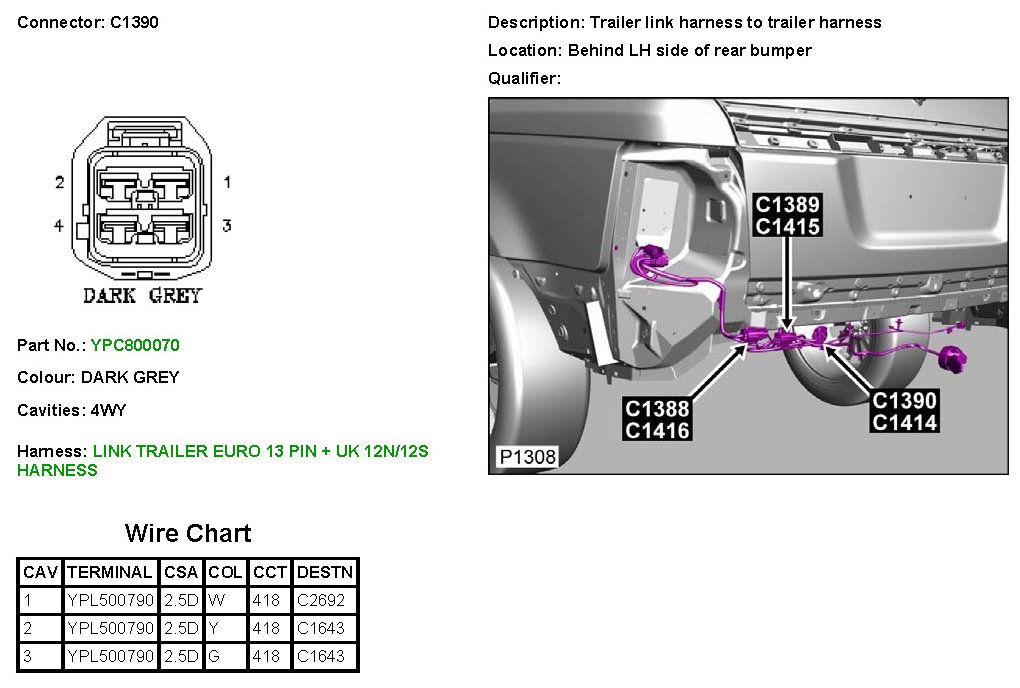

C1390
C1390
C1390
C1390:
C1390:
