Home >> Land Rover >> 2011 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0610 - C0700R >> C0635R

C0635R



C0635R

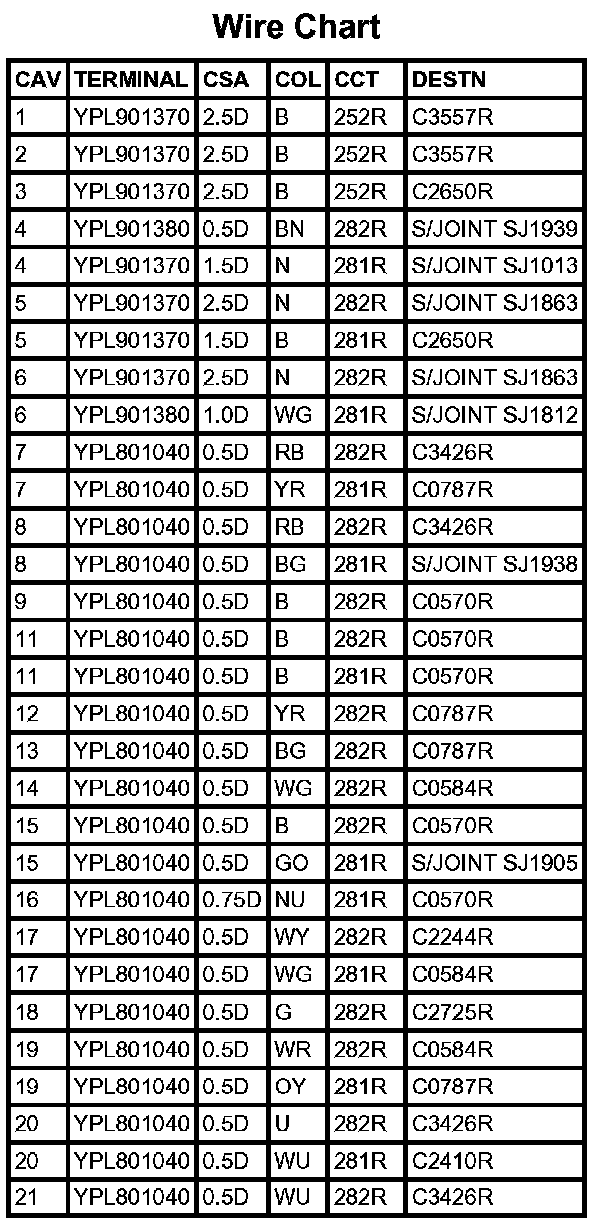

C0635R (Part 1):

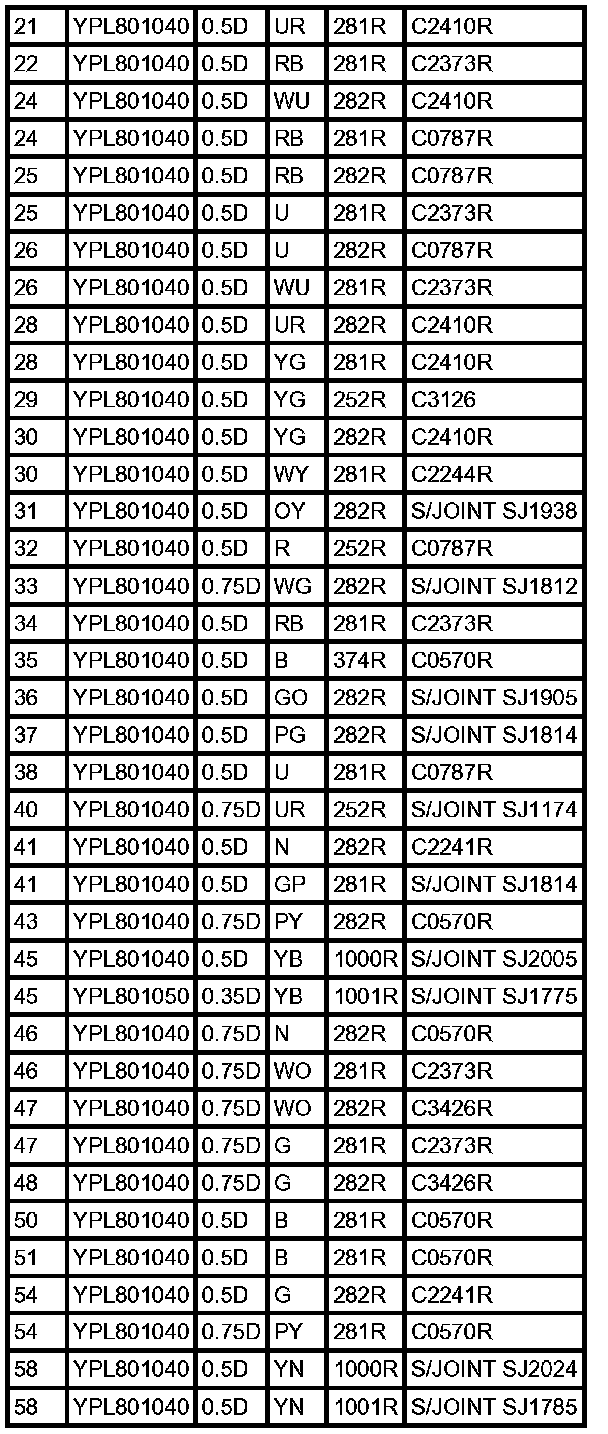

C0635R (Part 2):

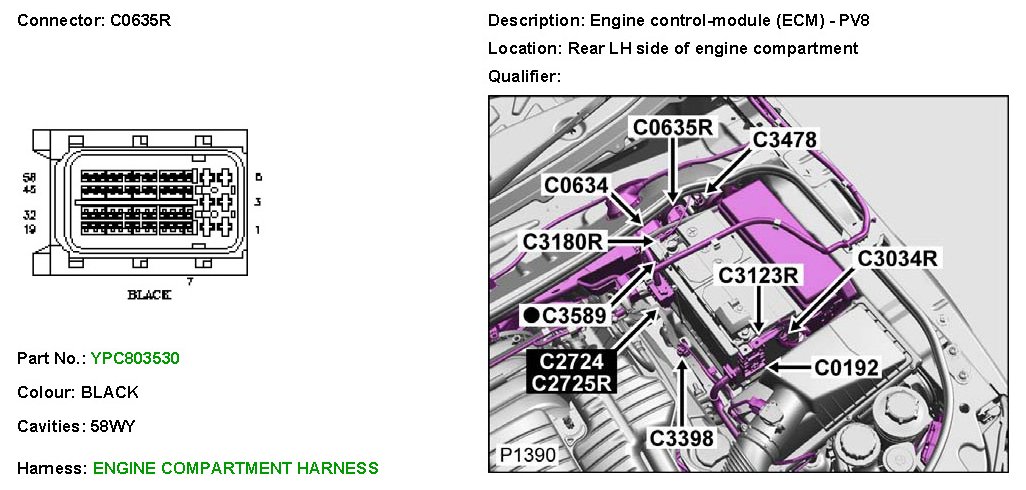

C0635R (Part 3):
