Home >> Land Rover >> 2011 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C0502 - C0586R >> C0586R

C0586R



C0586R

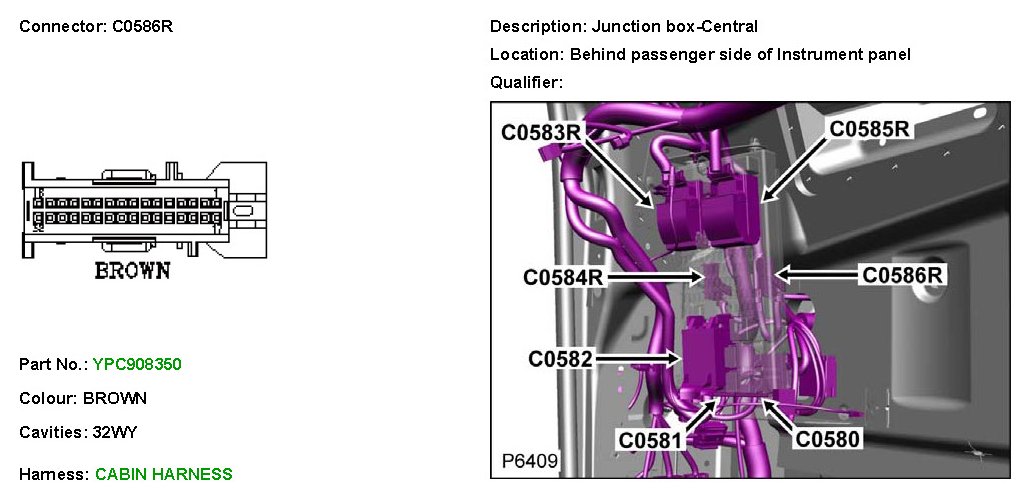

C0586R (Part 1):

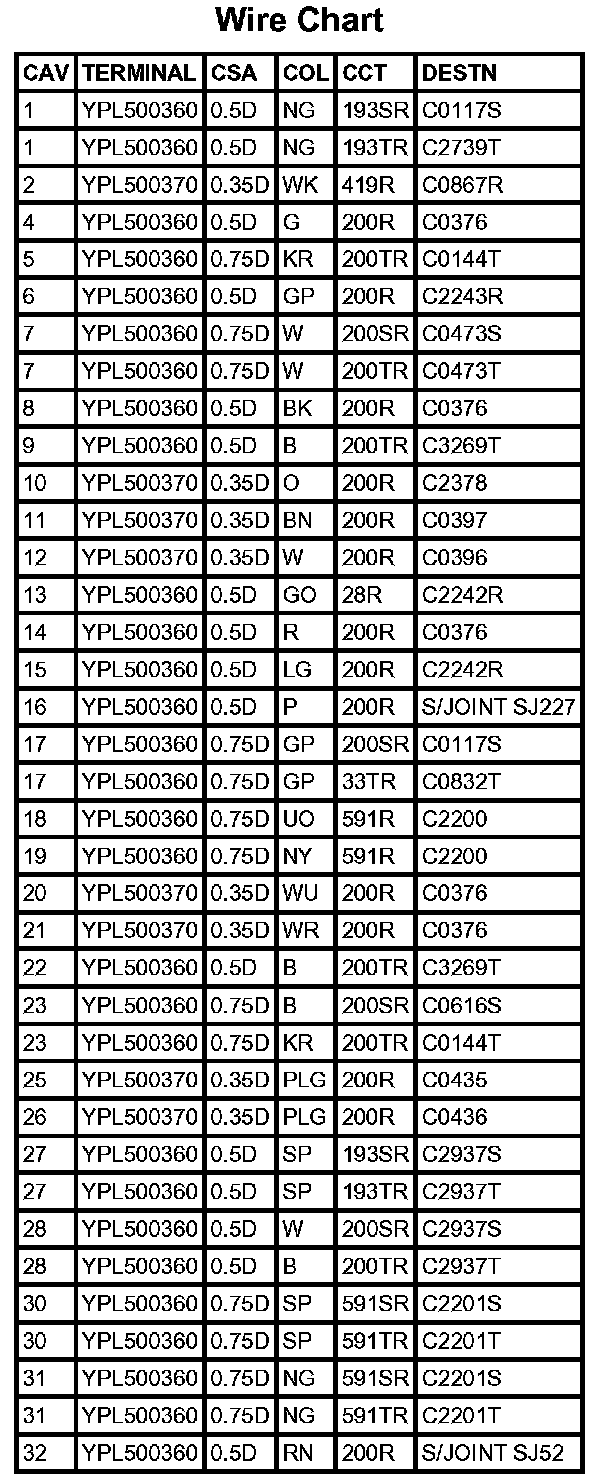

C0586R (Part 2):
