Liftgate Window Latch

Liftgate Window Latch

Removal
1 Remove the liftgate lower trim panel. For additional information, refer to Liftgate Trim Panel Service and Repair

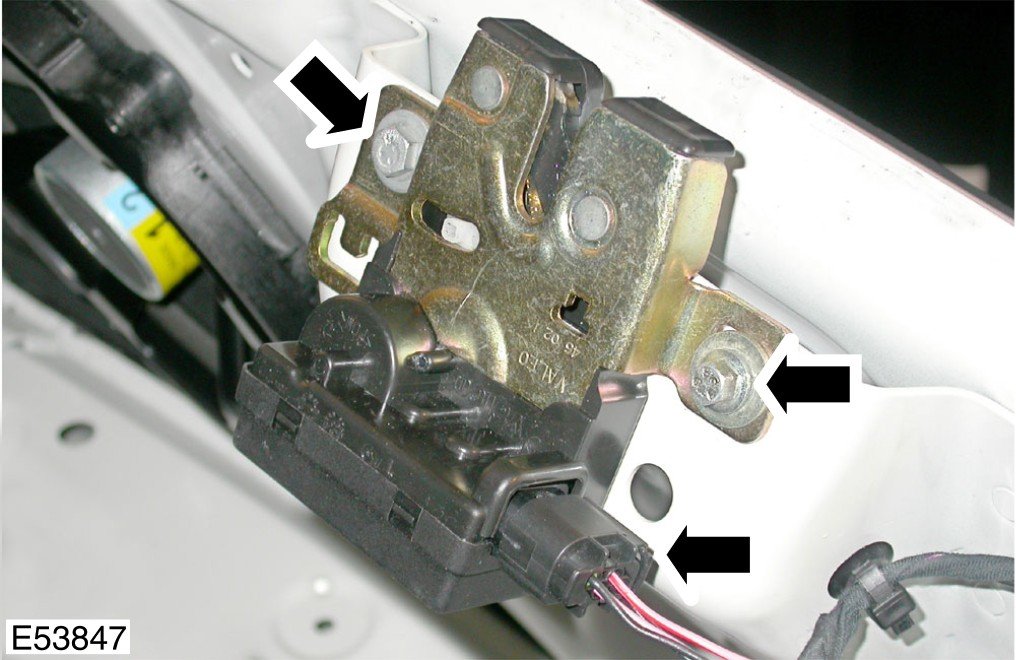

2 Remove the liftgate window latch.
- Disconnect the electrical connector.
- Remove the 2 bolts.

Installation
1 Install the liftgate window latch.
- Install the bolts and tighten to 10 Nm (7 lb.ft).
- Connect and secure the electrical connector.
2 Check and adjust the liftgate glass latch. For additional information, refer to Liftgate Window Latch Adjustment Liftgate Window Latch Adjustment
3 Install the liftgate lower trim panel. For additional information, refer to Liftgate Trim Panel Service and Repair
