DVD Player: Service and Repair

Digital Versatile Disc (DVD) Player

Removal
1 Remove the RH lower rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel




2 Release the DVD player harness.
- Release the clip.




3 Release the DVD player from the body.
- Remove the 2 bolts.
- Remove the nut.




4 Detach the DVD player from the body.




5
CAUTION: Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
CAUTION: Make sure that the optical connectors are clean and free of foreign material.

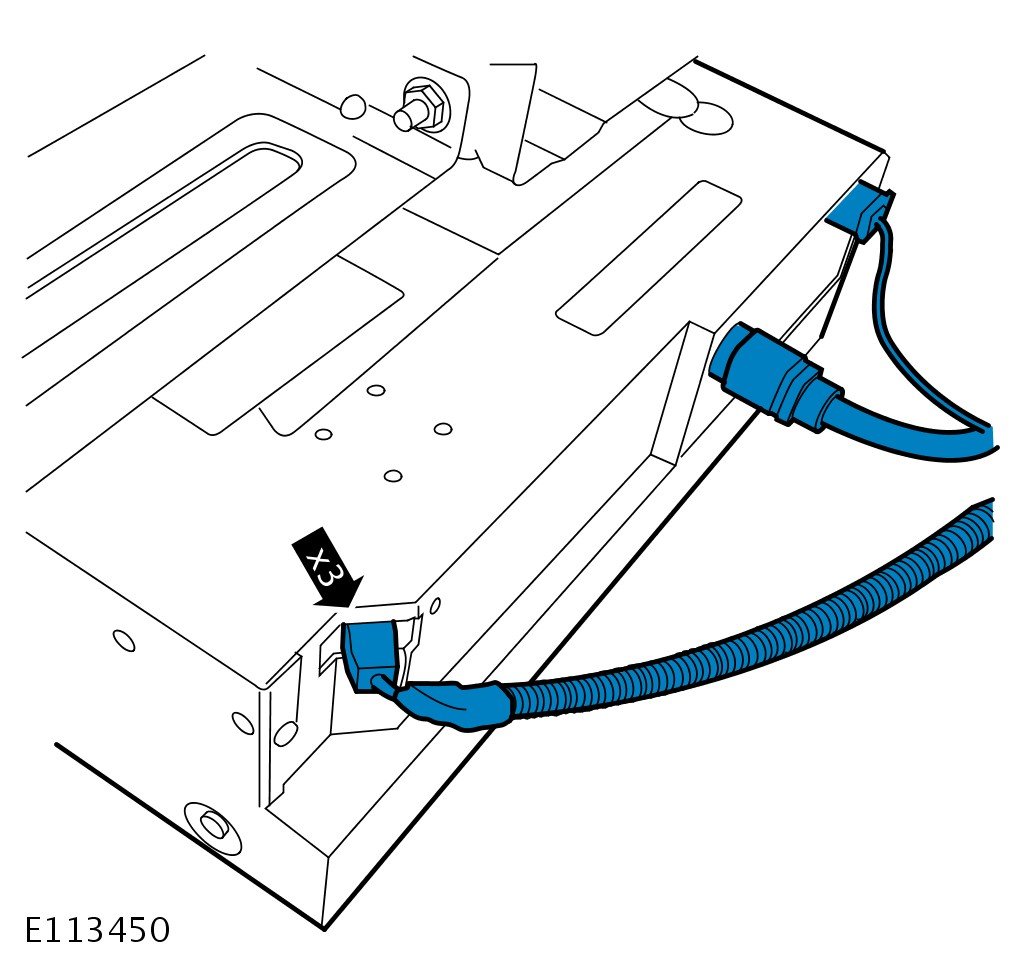

Remove the DVD player.
- Disconnect the 3 electrical connectors.




6 Remove the DVD player mounting bracket.
- Remove the 8 screws.
- Loosen the 2 nuts.

Installation
1 To install, reverse the removal procedure.
