Side Parking Aid Camera Wiring Harness - Front Door Section

Side Parking Aid Camera Wiring Harness - Front Door Section

Removal





1 Remove the closing trim panel.
- Release the clip.
- Remove the 2 screws.
- Disconnect the electrical connector.
2 Remove the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel




3
NOTE:
RHD shown, LHD is similar.
If equipped, remove the dynamic stability control module.
- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.




4
NOTE:
Door shown removed for clarity.
Release the gaiter.




5 Remove the wiring harness cover.
- Release the 4 clips.




6 Disconnect the electrical connector.
- Release the electrical connector bracket.
- Release the 6 clips.
7 Remove the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair

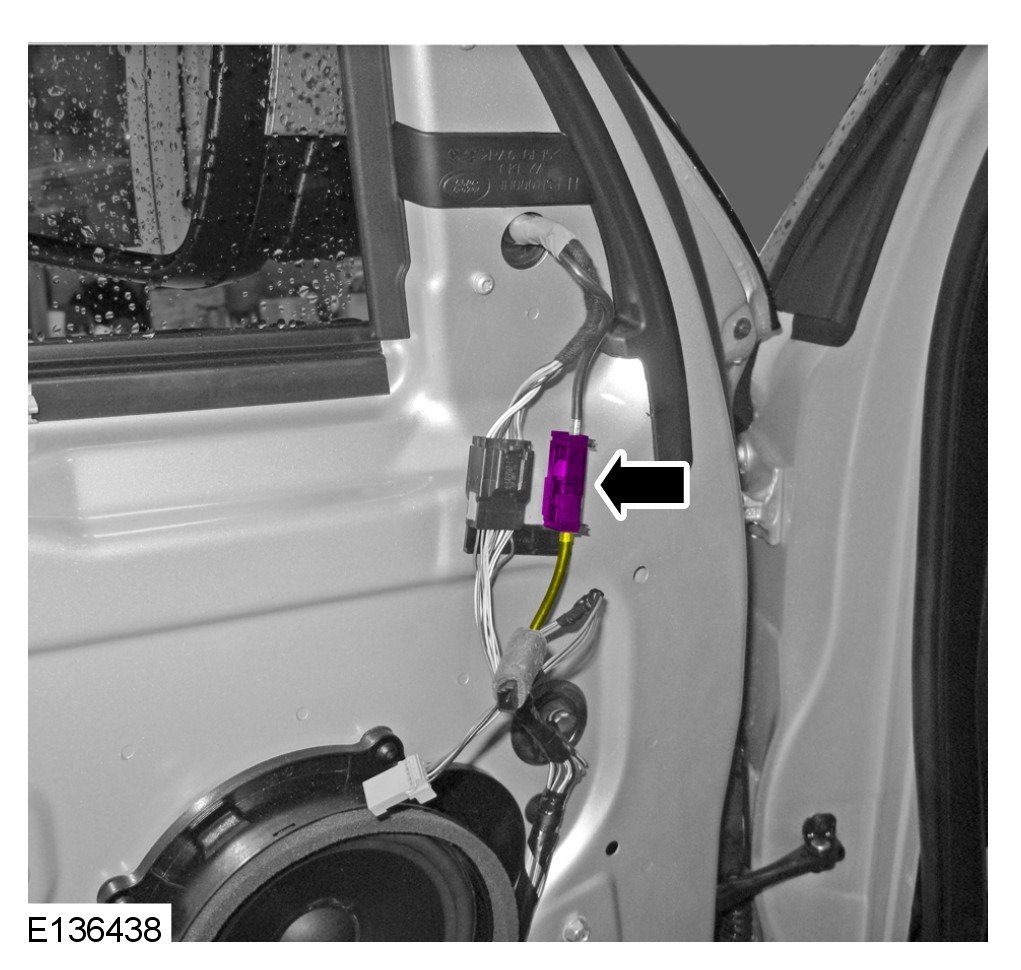

8 Disconnect the electrical connector.

Installation

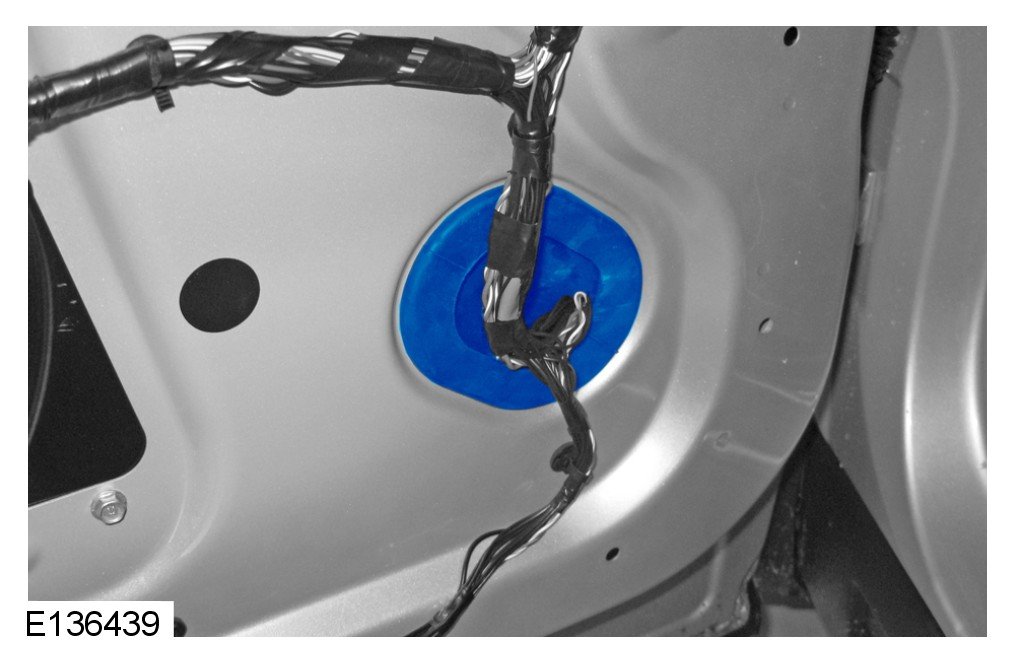

1 Release the grommet.

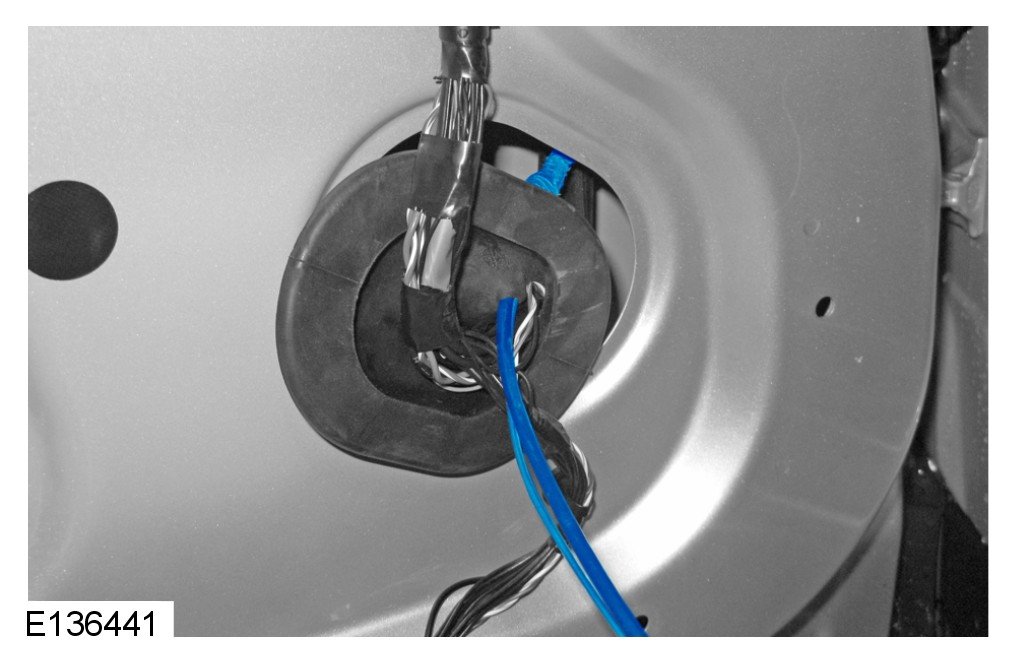

2 Using a suitable tool, make a hole in grommet in the position shown.




3
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the camera overlay wiring harness.




4
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Remove the connector from the camera wiring harness.
- Remove the locking tab.
- Carefully release the clip.
- Apply suitable tape to protect the end of the camera wiring harness.




5 Using suitable tape, secure a suitable rod to the camera overlay wiring harness.




6 Carefully feed the wiring harness through the grommet.




7 Carefully feed the camera overlay wiring harness through the gaiter.




8
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Install the connector to the camera wiring harness.
- Remove the protective tape.
- Install the electrical connector.
- Secure the locking tab.




9 Connect the electrical connector.





10 Install the wiring harness cover.
- Secure the 4 clips.





11 Install the gaiter.





12 Secure the bracket.
- Secure the 6 clips.

13
CAUTION: Make sure that excessive force is not used when installing the tie straps to the wiring harness. Failure to follow this instruction may result in damage to the vehicle.

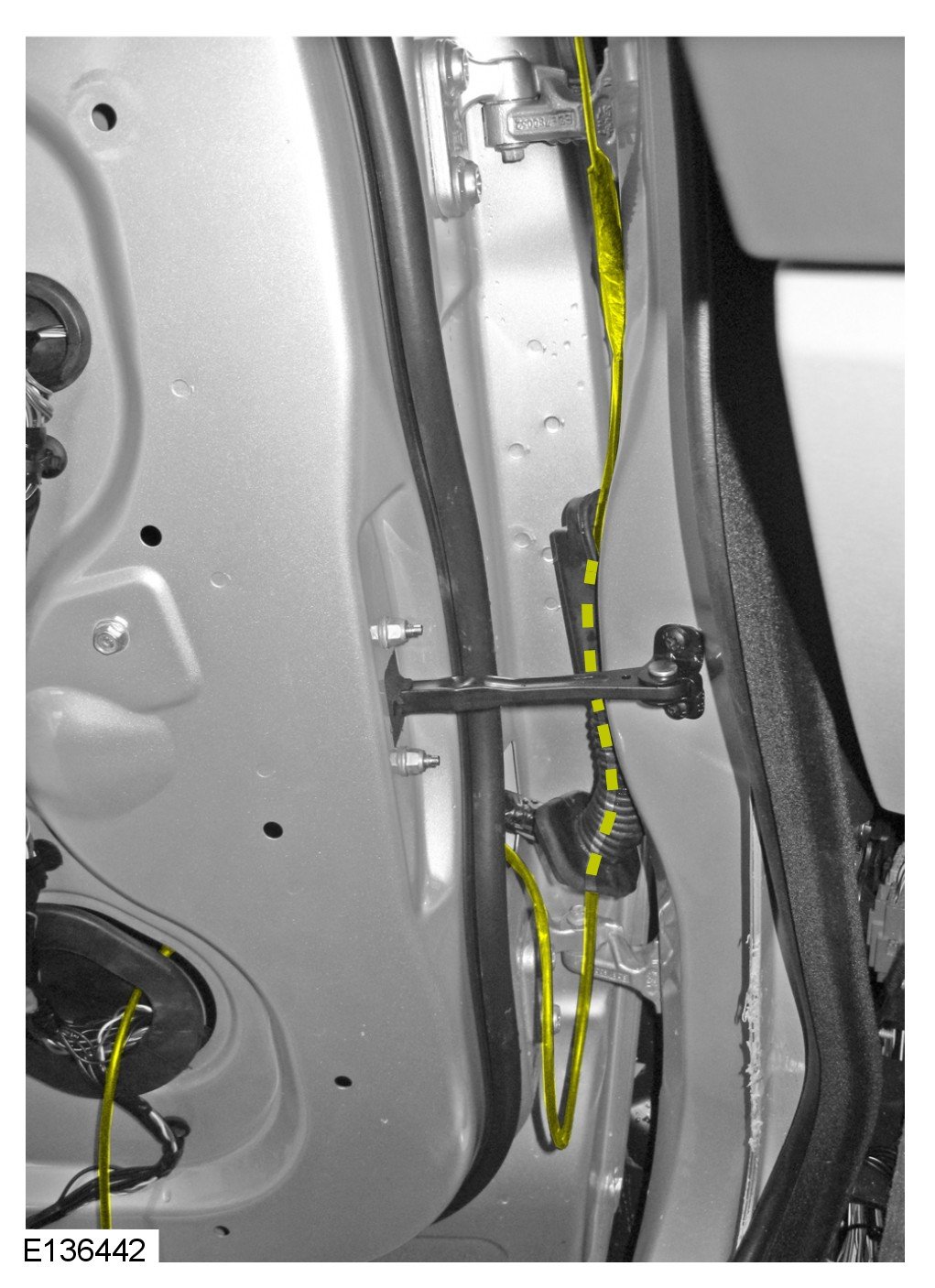

CAUTION: Make sure that the camera overlay harness is correctly routed and clear of the front door window regulator and motor. Failure to follow this instruction may result in damage to the vehicle.
Using suitable tie straps, secure the camera overlay harness to the door wiring harness.





14 Secure the grommet.





15
NOTE:
RHD shown, LHD is similar.
If equipped, install the dynamic response control module.
- Tighten the 2 bolts.
- Connect the 2 electrical connectors.

16 Install the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel





17 Install the closing trim panel.
- Connect the electrical connector.
- Secure the clip.
- Tighten the screws.





18 Connect the electrical connector.

19 Install the front door trim panel. For additional information, refer to Front Door Trim Panel Service and Repair
