Body - Rear Door Laminated Glass Discolored
No.: LTB00398NAS223 NOV 2011
ISSUE 2 CHANGES ARE HIGHLIGHTED IN GRAY
SECTION: 501
Rear Door Laminated Glass Discoloration

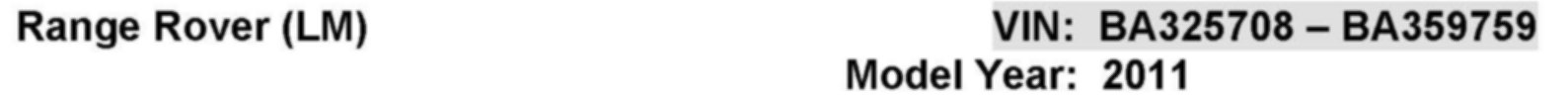

AFFECTED VEHICLE RANGE
CONDITION SUMMARY:
Situation:
The left and right rear door laminated glass may appear to be discolored in sunlight when viewed from inside or outside the vehicle. This may be caused by the laminate being an incorrect specification.
Action:
In the event of a customer concern of the above, refer to the Repair Procedure outlined below to replace the affected door glass.

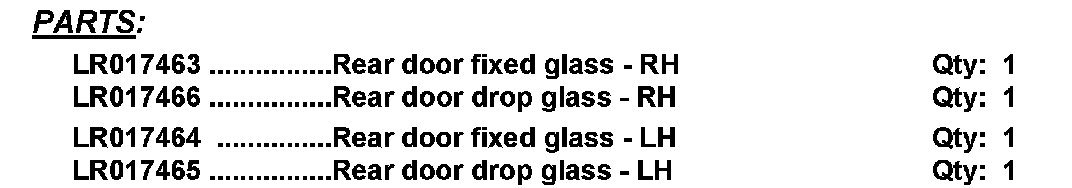

PARTS
TOOLS:
Refer to Workshop Manual for any required special tools

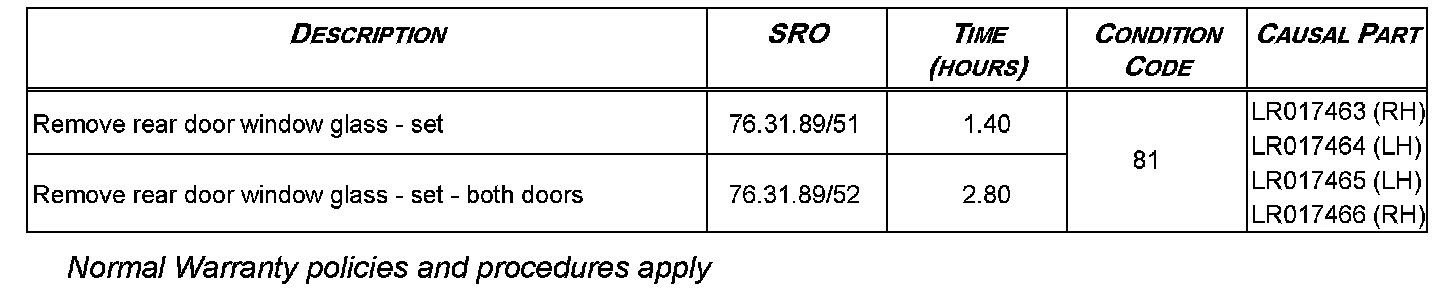

WARRANTY:
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
REPAIR PROCEDURE
REPLACE AFFECTED DOOR GLASS
1. Refer to Workshop Manual 501-11: Glass, Frames, and Mechanisms, and replace the affected rear door fixed and drop window glass.
2. Repeat step 1 for the opposite rear door (only if necessary).
