Home >> Land Rover >> 2011 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Application and ID

Differential Assembly: Application and ID

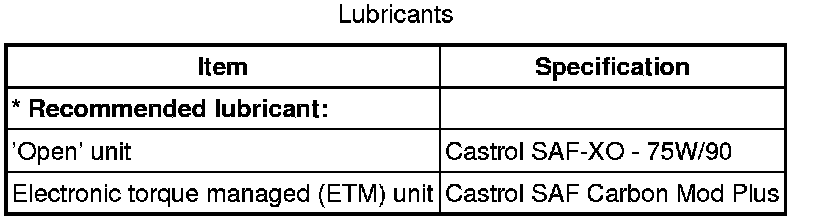

Specifications










* Do not use any lubricant other than that specified
