Rear Stabilizer Bar (Armored Vehicles)

Stabilizer Bar

Removal

NOTE:
The stabilizer bar bushes can be replaced with the stabilizer bar fitted to the vehicle.
1 Carry out steps 1 to 3 as detailed in the Range Rover Workshop Manual.

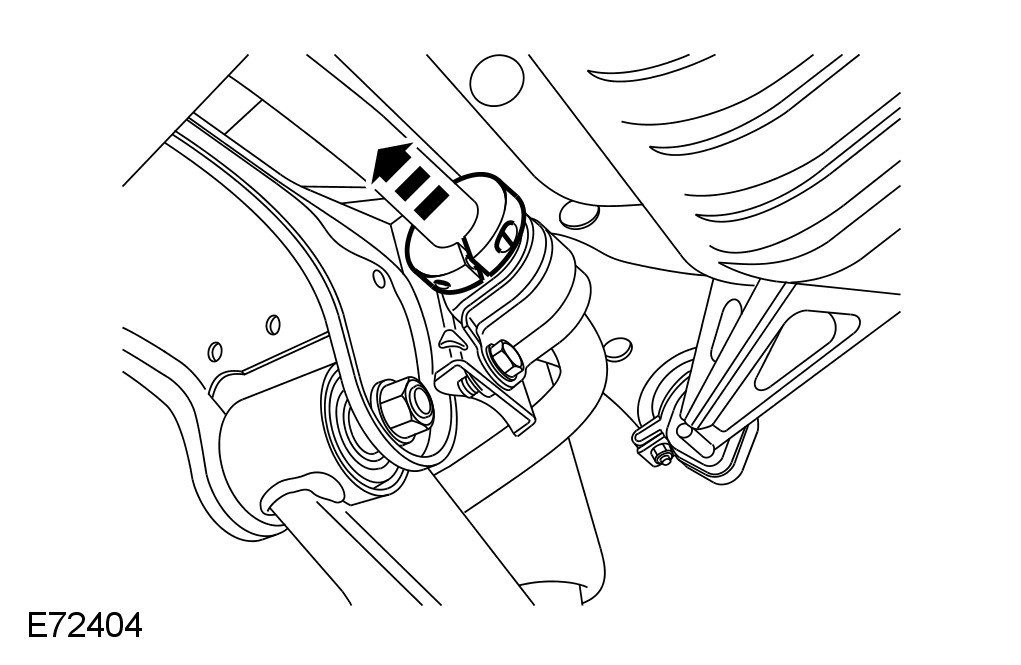

2 Slacken screws securing the anti-shuffle collars and slide the collars along the stabilizer bar.

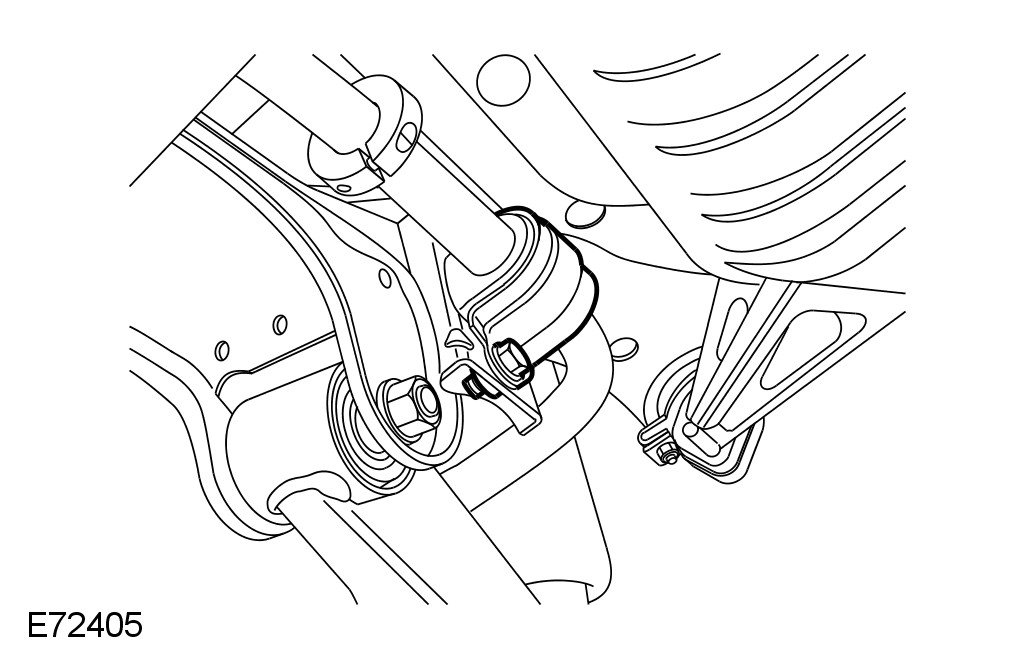

3 Remove 2 nuts securing each stabilizer bar bush clamp.
4 Carry out steps 5 and 6 as detailed in the Range Rover Workshop Manual.

Installation
1 Carry out steps 1 and 2 as detailed in the Range Rover Workshop Manual.
2 Align stabilizer bar bush clamps, fit nuts and tighten to 45 to 65 Nm (35 to 48 lbf.ft).
3 Position anti-shuffle collars adjacent to each stabilizer bar clamp and tighten the screws to 9 Nm (7 lbf.ft).
4 Carry out steps 4 and 5 as detailed in the Range Rover Workshop Manual.
