Land Rover
>>
2011
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C0114-C0190
>>
C0128B
C0128B
C0128B

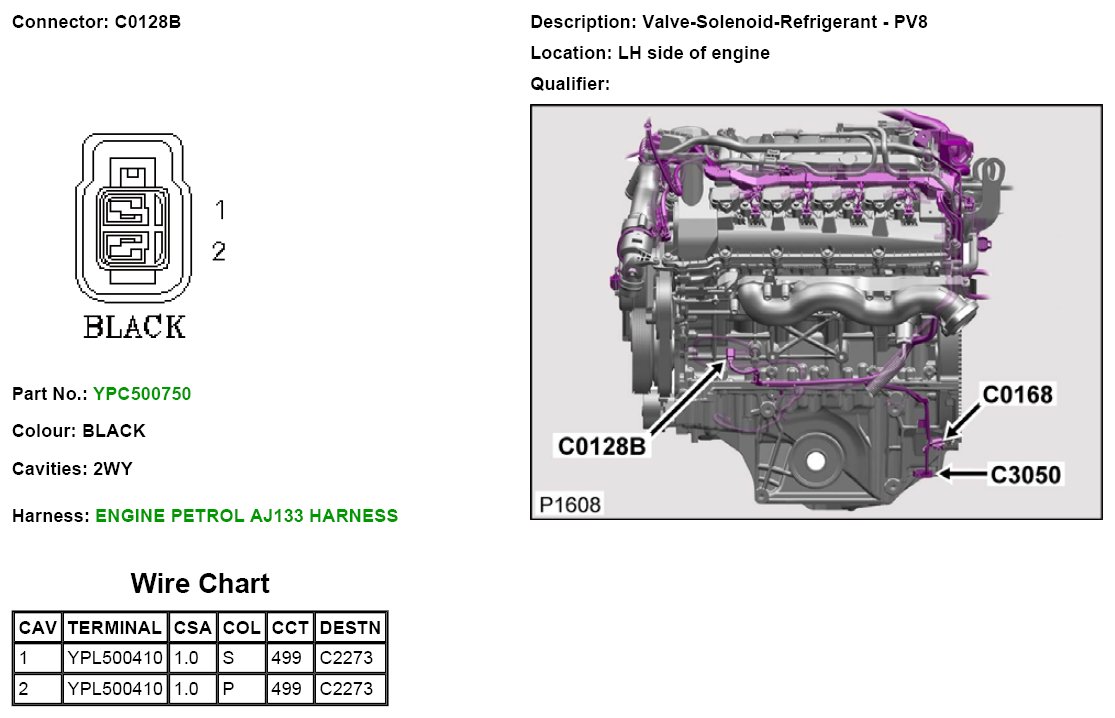

C0128B:
