Land Rover
>>
2011
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1770-C1972
>>

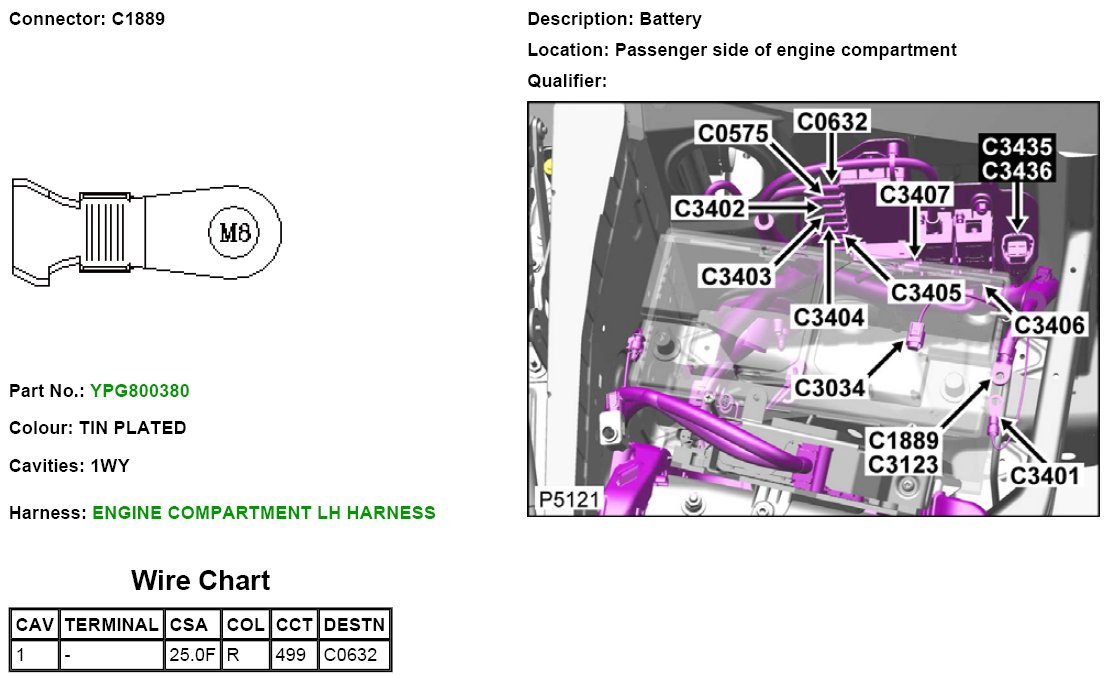

C1889
C1889
C1889
C1889:
