Rear Door Trim Panel (Armored Vehicles)

Rear Door Trim Panel

Removal

NOTE:
This procedure should be used in conjunction with Trim Casing - Rear Door, SRO 76.34.04. as published in the Range Rover Workshop Manual.
1 Carry out steps 1 and 2 of the Workshop Manual procedure.

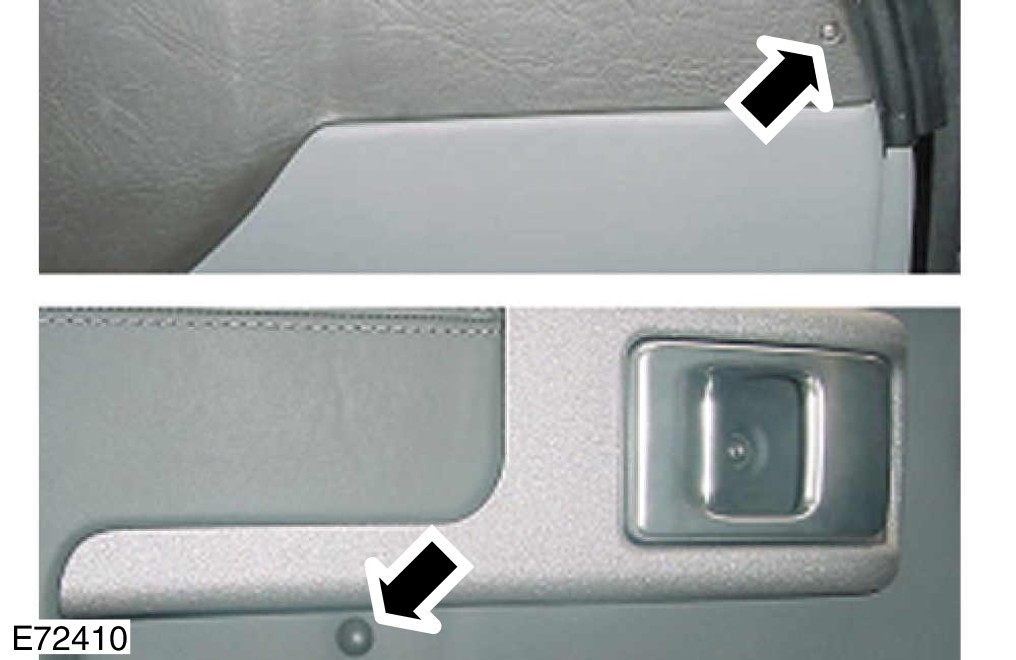

2 Remove the 2 additional screws from the trim casing (arrowed).
3 Carry out steps 3 to 7 of the Workshop Manual procedure.
4 Disconnect the multiplug from the speaker.
5 Remove the 4 screws securing the speaker to the door.
6 Remove the speaker.
7 Remove the door insulating cover.

Installation
1 To refit the trim casing, reverse the removal procedure.
