Cellular Phone Microphone: Service and Repair

Microphone

Removal

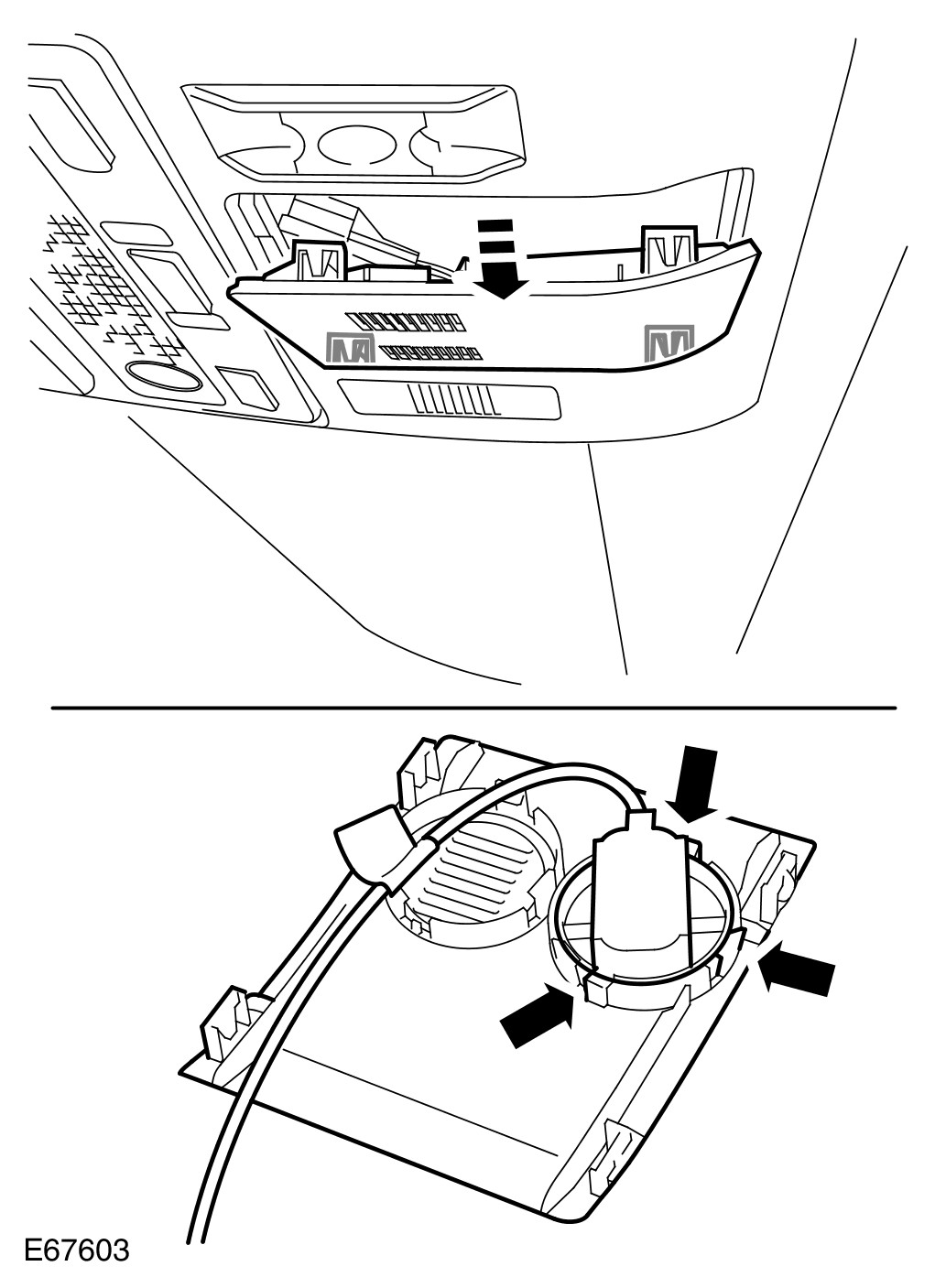

1 Carefully release the overhead console center panel.
- Release the 4 clips.




2 Remove the cellular phone microphone.
- Disconnect the electrical connector.
- Release the 3 clips.

Installation
1 Install the cellular phone microphone.
- Secure in the clips.
- Connect the electrical connector.
2 Install the overhead console center panel.
