Symptom Related Diagnostic Procedures

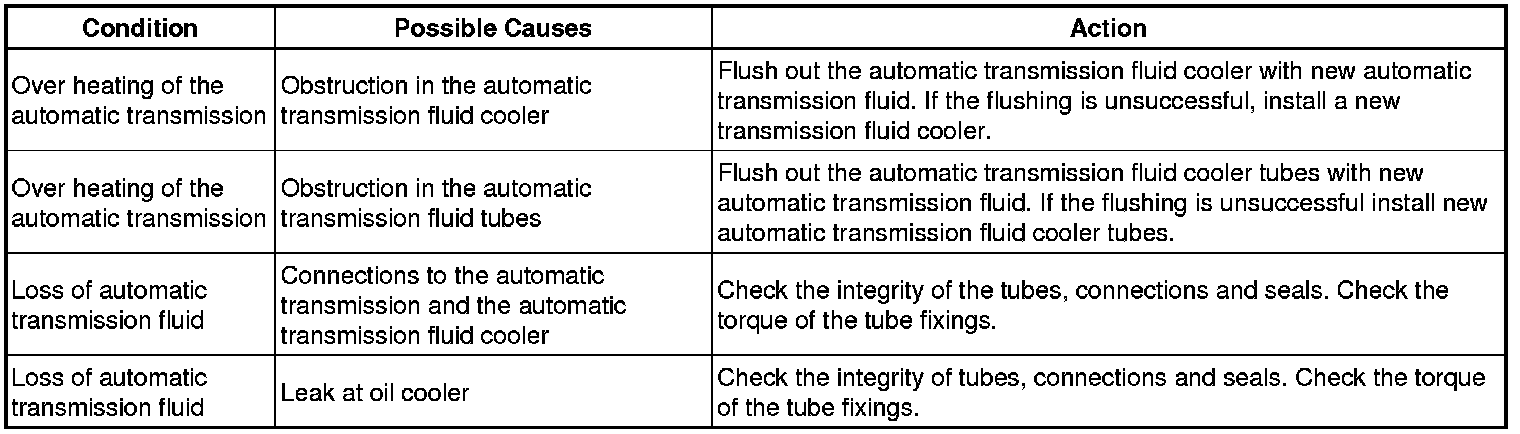

Symptom Chart






DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ) A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Transmission Control Module - Siemens Transmission Control Module (TCM) - Siemens
