Auxiliary Blower Motor: Service and Repair

Auxiliary Blower Motor

Removal
1 Disconnect the battery ground cable. For additional information, refer to Procedures
2 Remove the floor console upper panel. For additional information, refer to Floor Console Upper Panel Floor Console Upper Panel

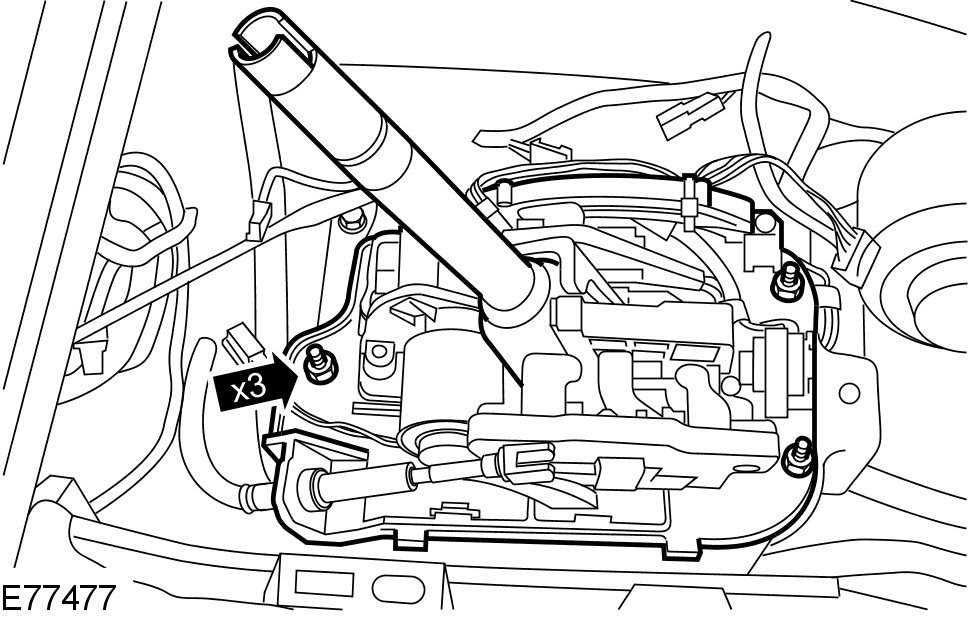

3 Reposition the transmission selector lever assembly for access.
- Remove the 3 nuts.

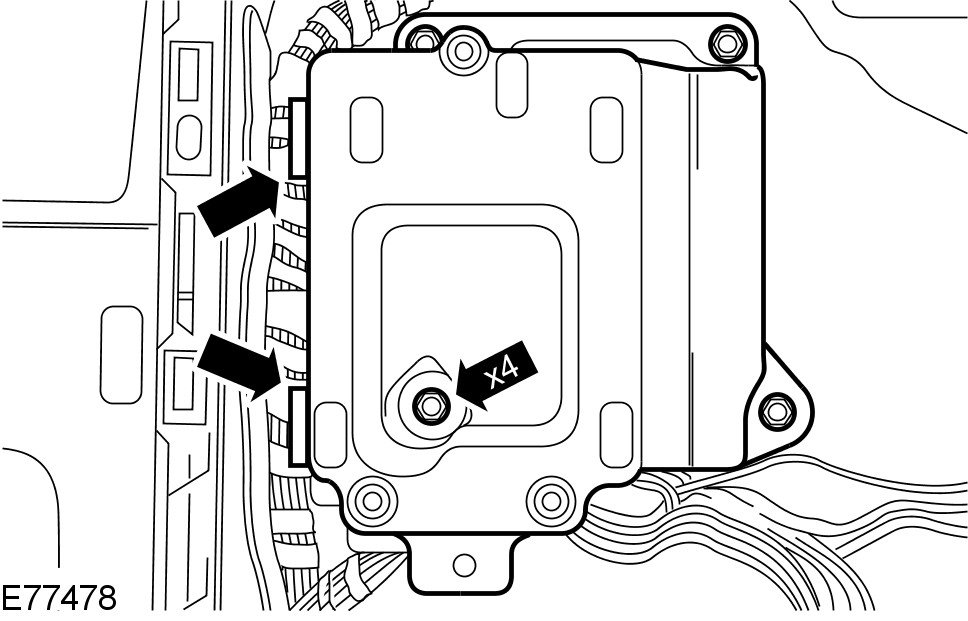

4 Remove the transmission selector lever mounting plate.
- Remove the 4 nuts.
- Release the 2 wiring harness clips.

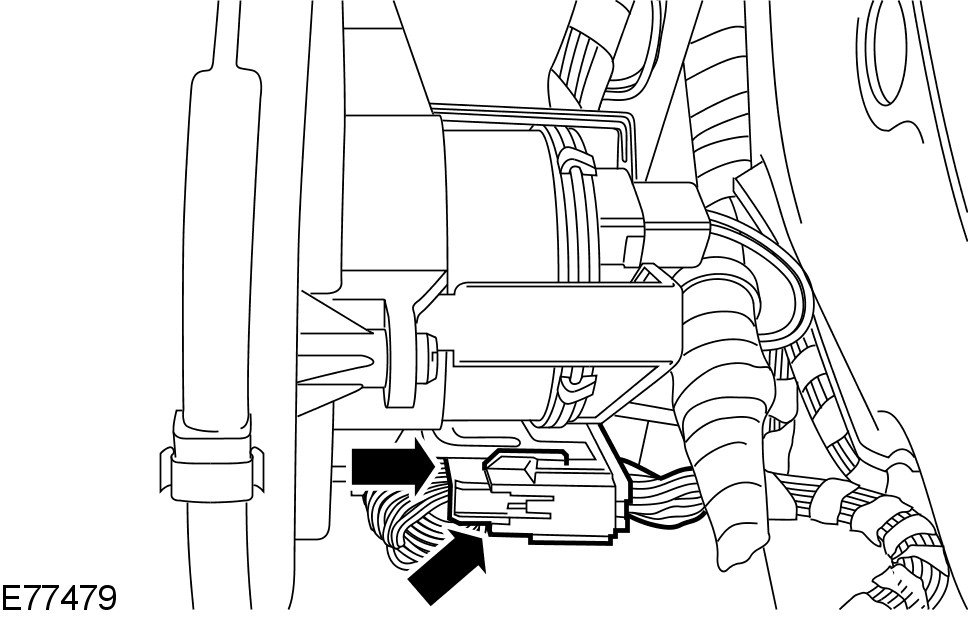

5 Release the auxiliary climate control main wiring harness electrical connector from the wiring harness support bracket.
- Reposition the wiring harness.




6 Disconnect the blower motor electrical connector.
- Detach the wiring harness clip.
- Release the wiring harness clip.




7
NOTE:
Note the fitted position.

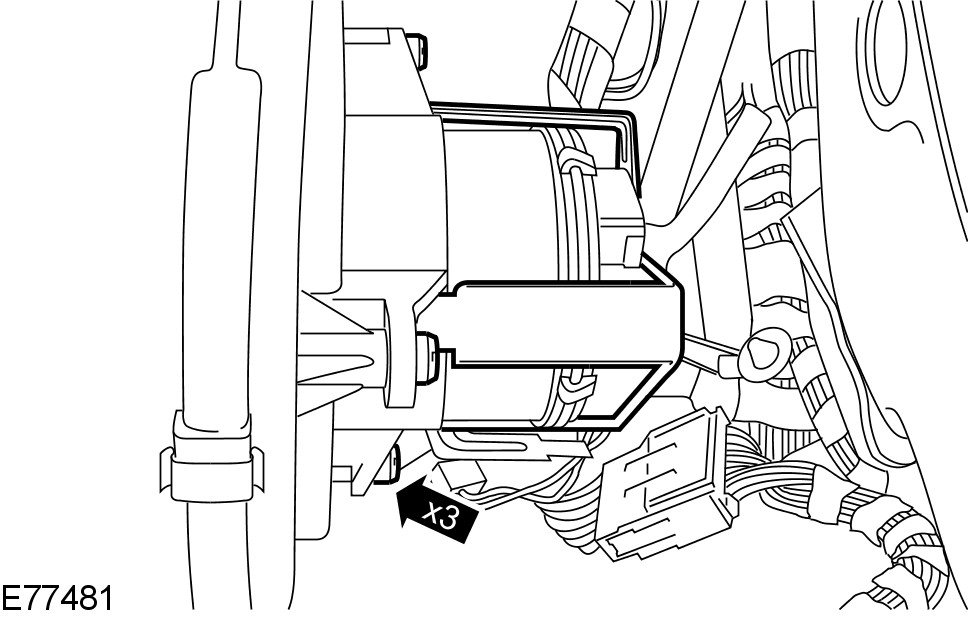

Remove the blower motor.
- Remove the 3 screws.
- Remove the wiring harness support bracket.

Installation
1 Install the blower motor.
- Install the wiring harness support bracket.
- Install the 3 screws.
2 Connect the blower motor electrical connector.
- Reposition the wiring harness.
- Secure the wiring harness clip.
3 Attach the auxiliary climate control main wiring harness electrical connector to the wiring harness support bracket.
- Reposition the wiring harness.
4 Install the transmission selector lever mounting plate.
- Secure the 2 wiring harness clips.
- Install the 4 nuts and tighten to 10 Nm (7 lb ft).
5 Install the transmission selector lever.
- Install the 3 nuts and tighten to 10 Nm (7 lb ft).
6 Install the floor console upper panel. For additional information, refer to Floor Console Upper Panel Floor Console Upper Panel
7 Connect the battery ground cable. For additional information, refer to Procedures
