Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1023 - C1972
>>

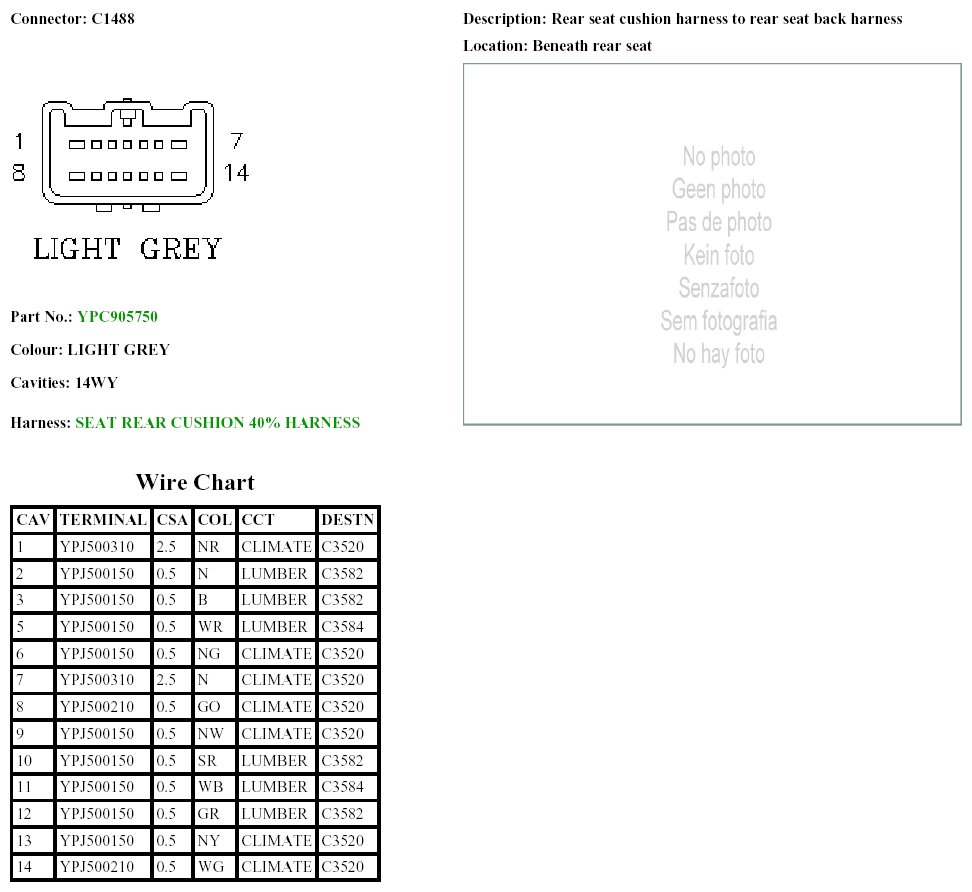

C1488
C1488
C1488
C1488:
