Speaker: Description and Operation

Speakers
The speaker configuration depends on the level of audio unit fitted to the vehicle. The following details the speaker configuration and control for each system.

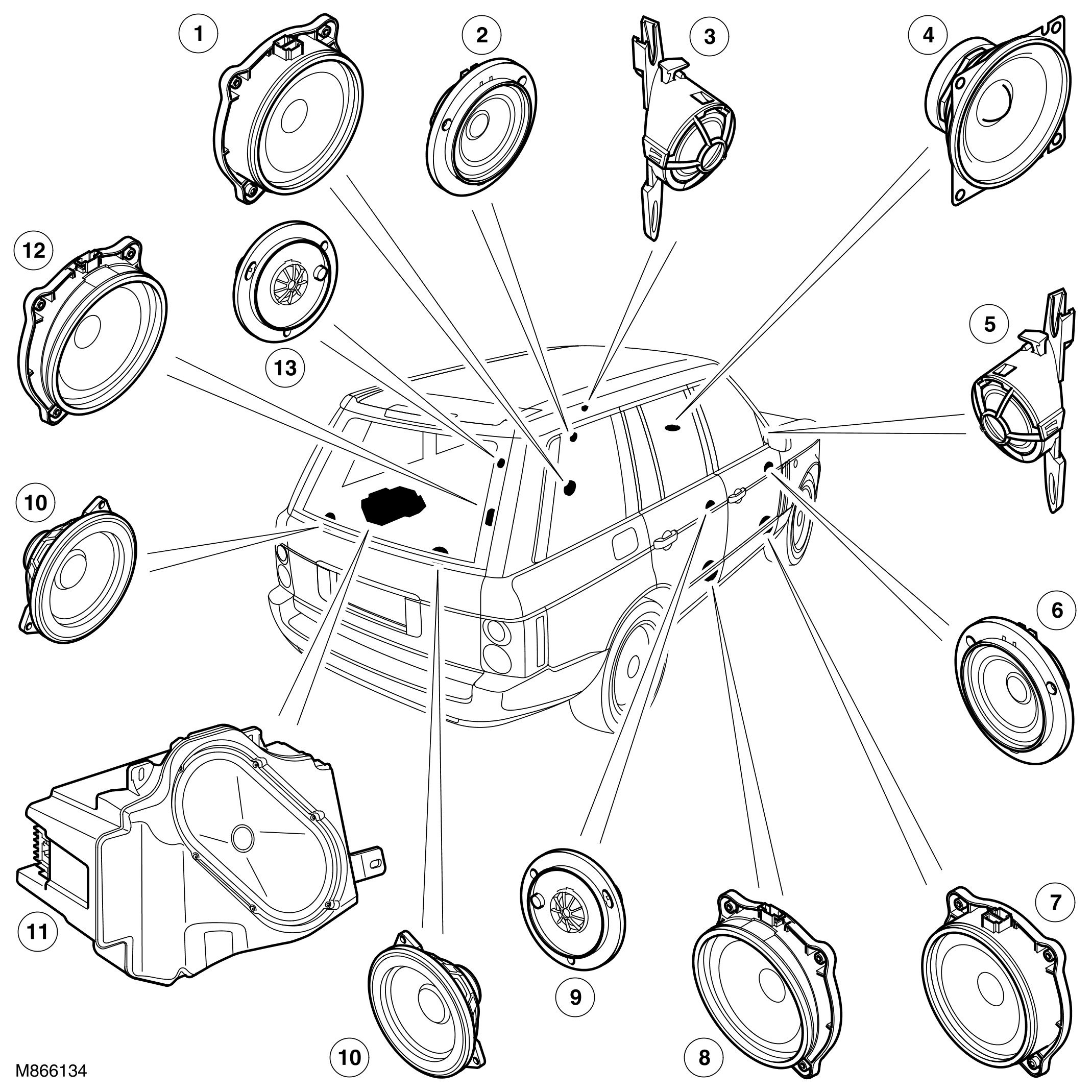

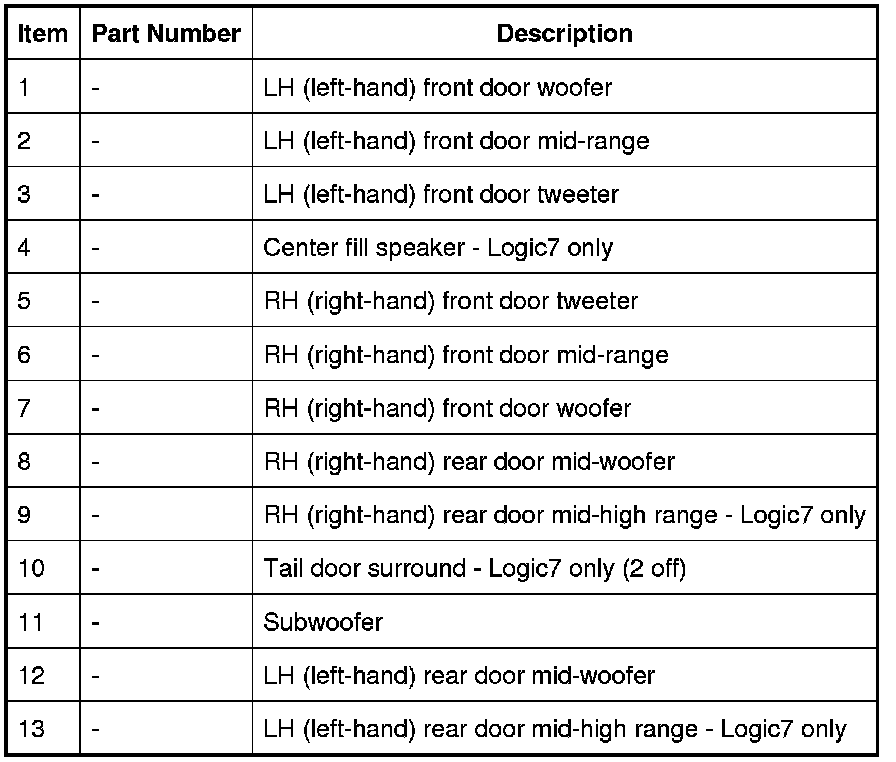

SPEAKER COMPONENT LOCATION

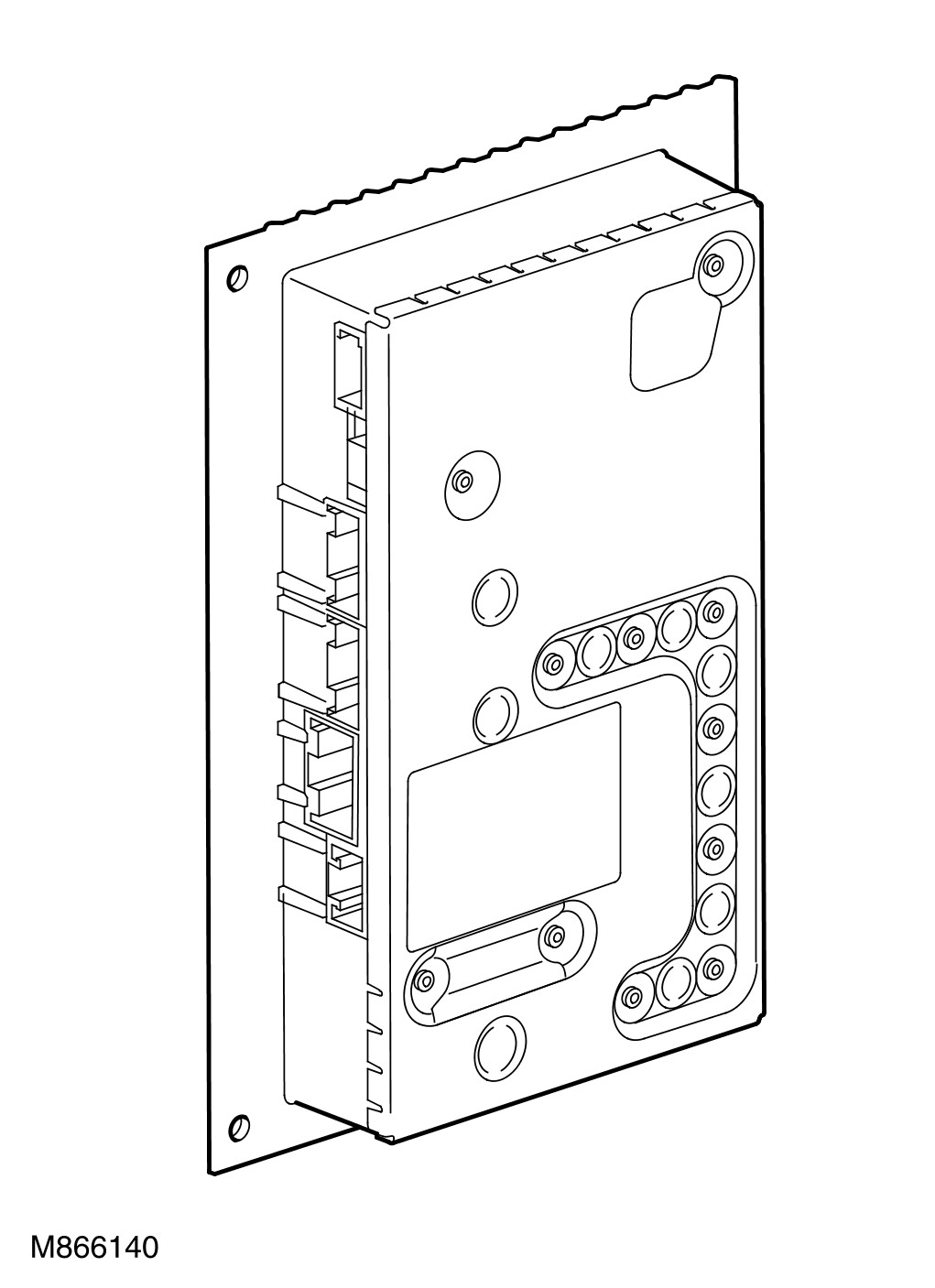

DSP SYSTEM AMPLIFIER





The Digital Sound Processor (DSP) amplifier is located in the rear LH (left-hand) side of the luggage compartment. The DSP amplifier drives eleven speakers; two front door mid-range, four front and rear door bass, four front and rear door tweeters on eight channels and a passive subwoofer. The amplifier produces 320 Watts of digital amplification to power the speakers.

HARMAN/KARDON LOGIC7 AMPLIFIER





The Logic7 amplifier is located in the rear LH (left-hand) side of the luggage compartment. The Logic7 amplifier drives fourteen speakers on 5.1 surround channels; two front door mid-range, four front and rear door bass, four front and rear door tweeters on eight channels and a passive subwoofer as on the DSP system, but with two additional surround sound speakers located in the upper tail door and a Center surround speaker located in the fascia.

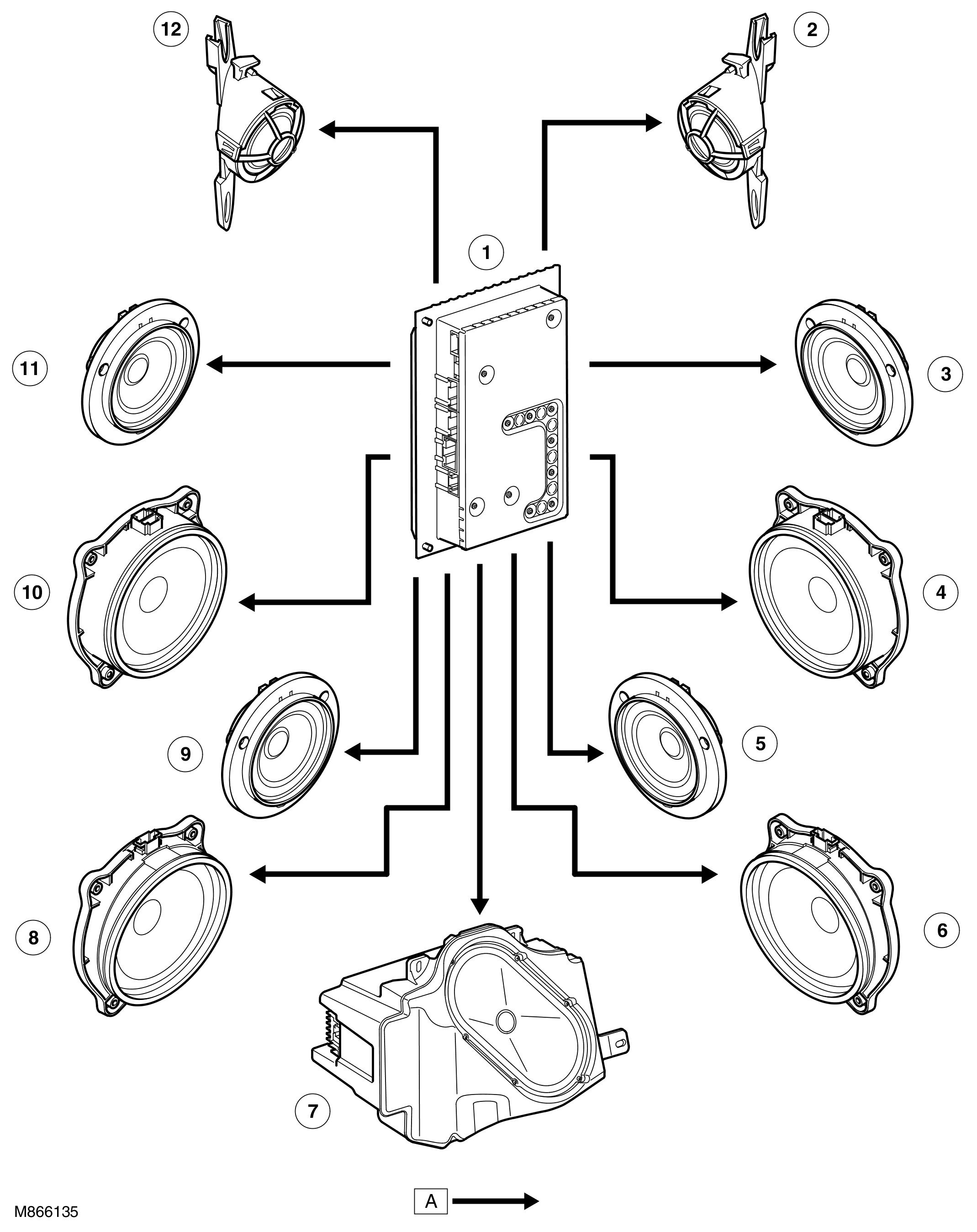

DSP SYSTEM - SPEAKER CONTROL DIAGRAM

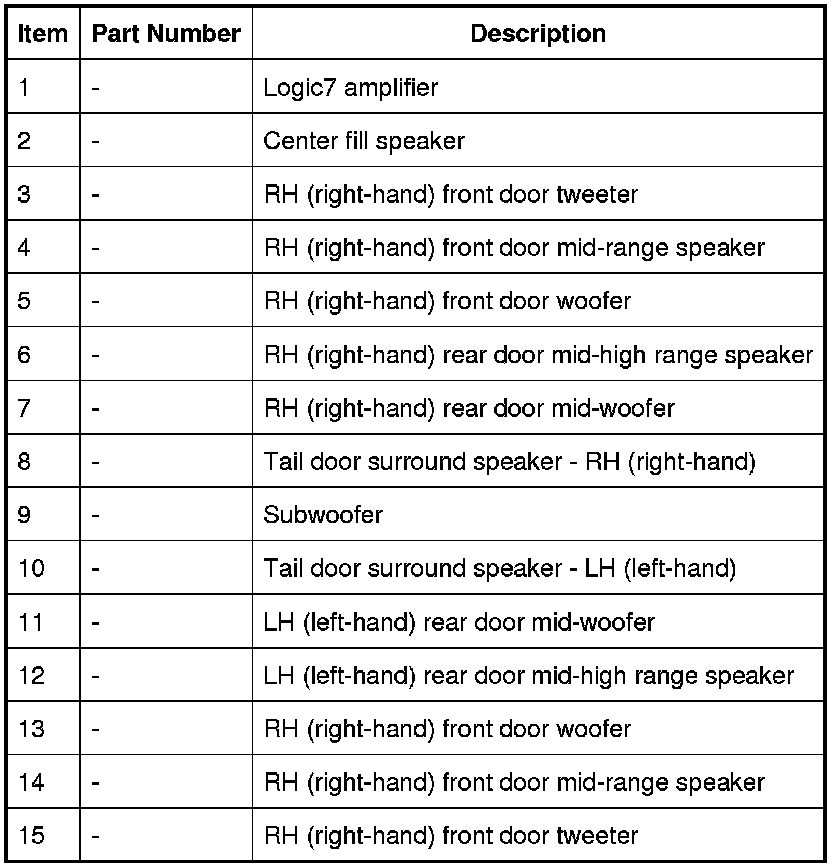

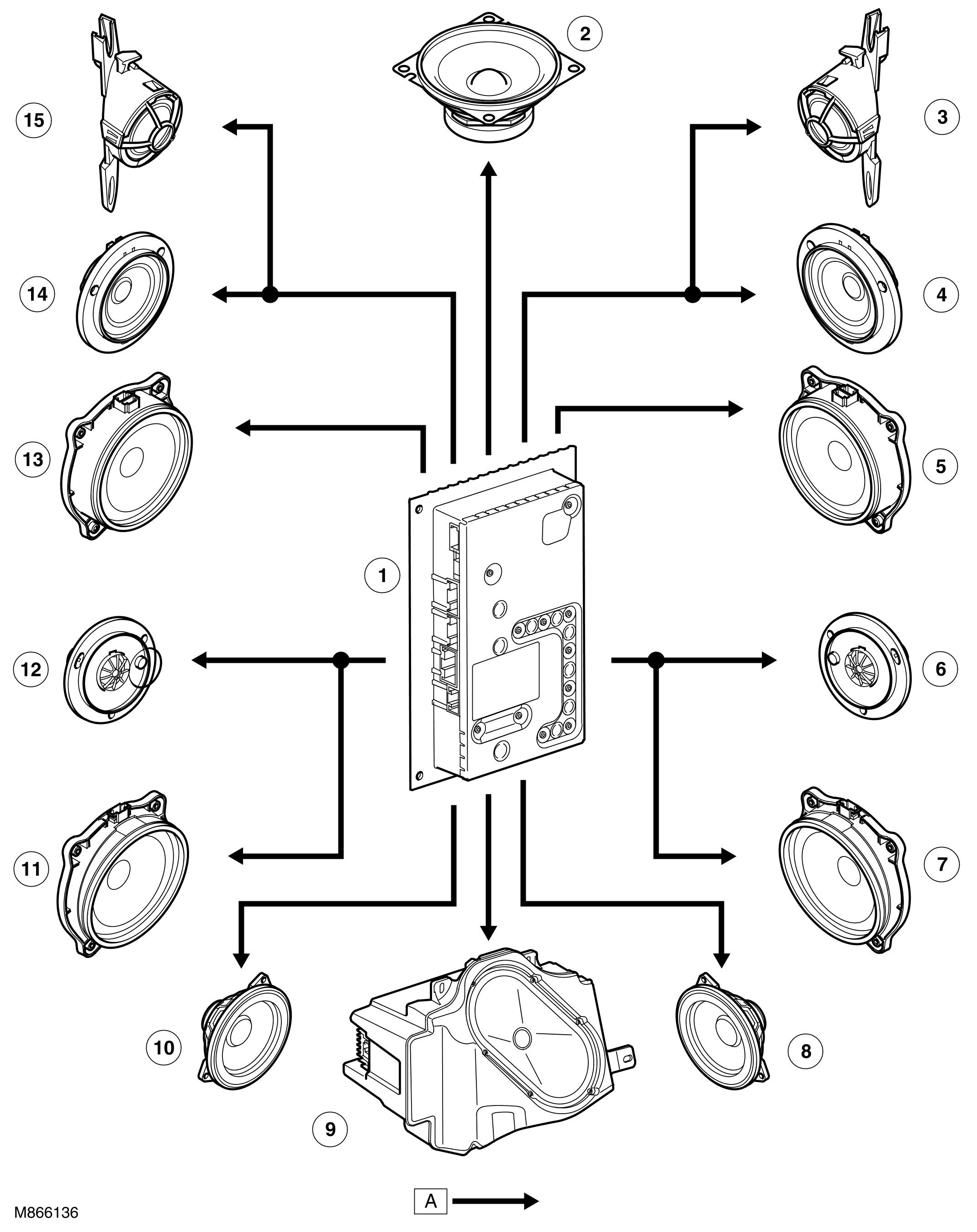

LOGIC 7 SYSTEM - SPEAKER CONTROL DIAGRAM
