Cabin Air Filter / Purifier: Service and Repair

Climate Control Air Filter Replacement (If equipped)

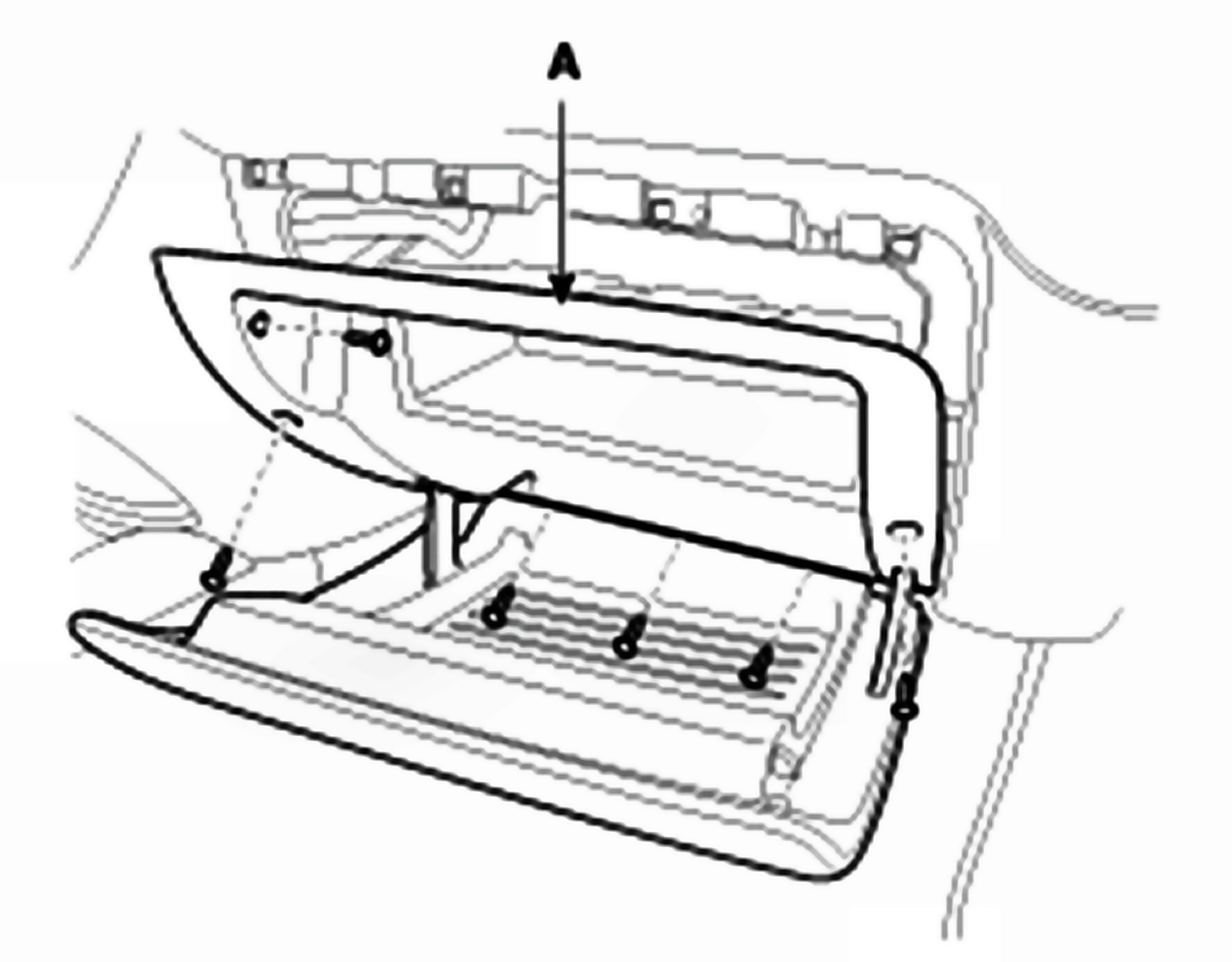

1. Loosen the mount screw and then remove the glove box (A).





2. Remove the filter cover (A) with pushing the knob.

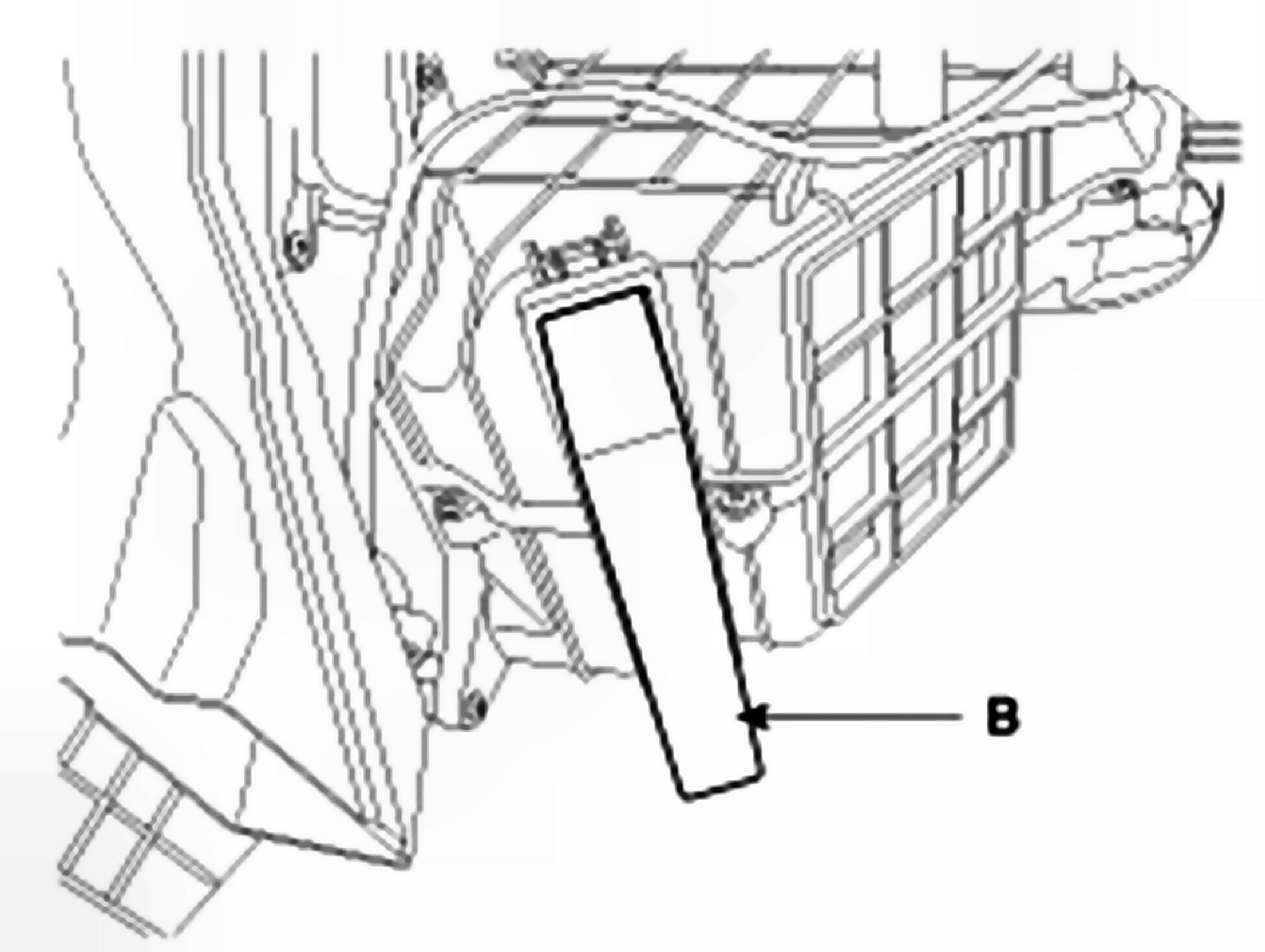

3. Replace the air filter (B), install it after making sure of the direction of air filter.
4. Installation is the reverse order of removal.

NOTE:
In case of driving in an air-polluted area or rugged terrain, check and replace the climate control air filter as frequently as possible.
