Kia
>>
2012
>>
Soul L4-2.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Subassemblies
>>
Oil Pump
Oil Pump

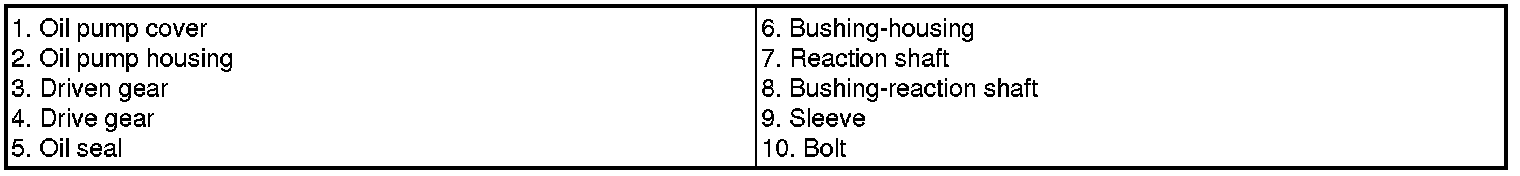

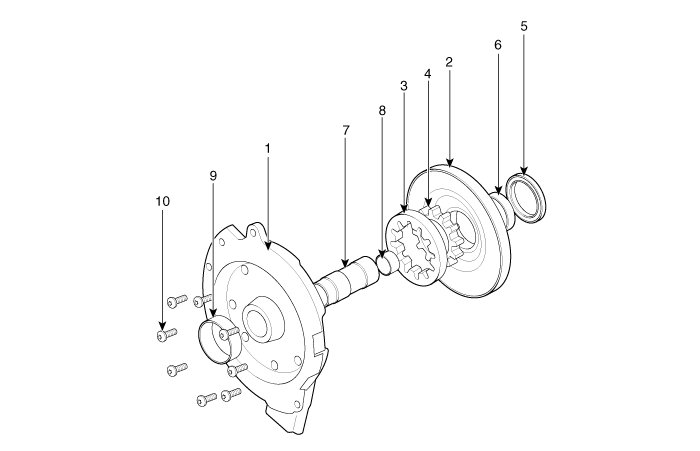

Components

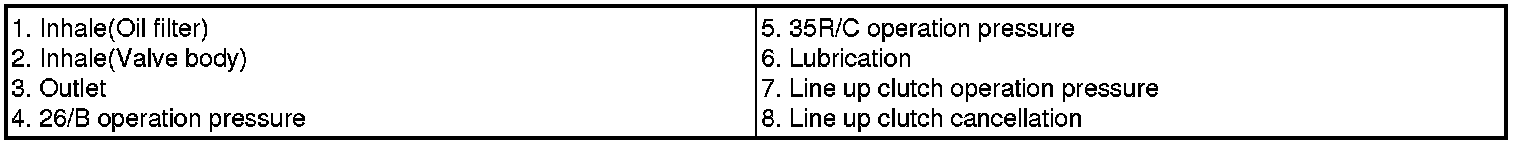

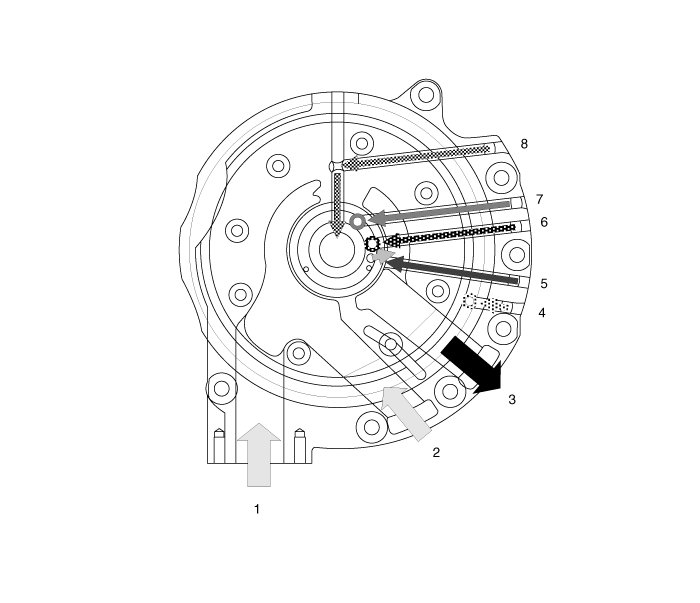

Oil Pump Operation Flow
