Repair procedures

Battery Sensor Recalibration Procedure

If disconnecting the negative (-) battery cable from the battery during repair work for the vehicle equipped with ISG function, Battery sensor recalibration procedure should be performed after finishing the repair work.
1. Turn the Ignition switch ON and OFF.
2. Park the vehicle about 4 hours under below states.
A. Park the vehicle about 4 hours under below states.
B. Closing the hood, trunk, and all doors.

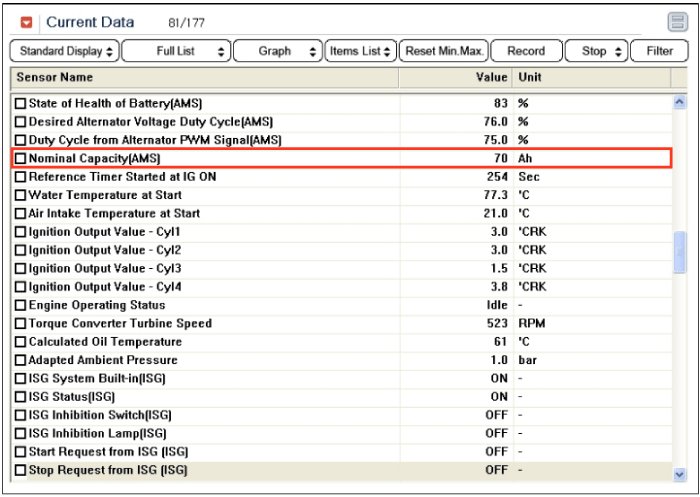

3. After 4 hours later, check whether the current data are displayed normally or not using GDS.
A. Nominal capacity(AMS) = 70Ah

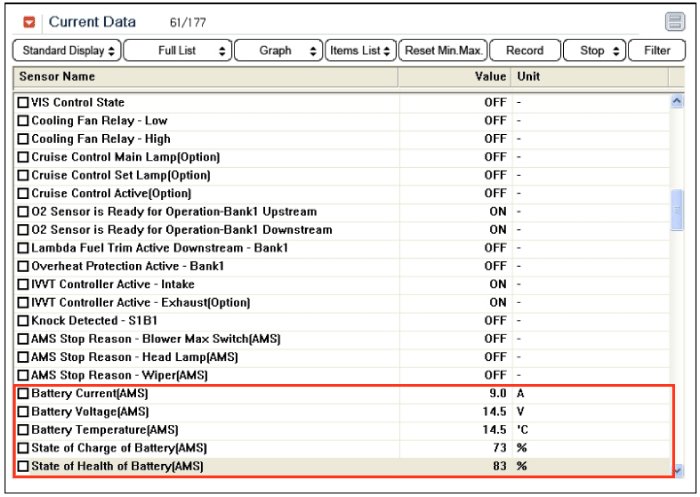

B. State of Charge of Battery(AMS) = (0 - 100%)
C. State of Health of Battery(AMS) = (0 - 100%)
4. After cranking the engine 2 times or more, check State of Function of Battery(AMS) =(0 - 12V).
