Cylinder Head Assembly

Cylinder Head

Install the cylinder head bolts with washers.

Using SST (09221-4A000), install and tighten the 10 cylinder head bolts, in several passes, in the sequence as shown.

Tightening torque

1st step 32.4 - 36.3 N.m (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft)
2nd step 90 - 95°
3rd step 90 - 95°











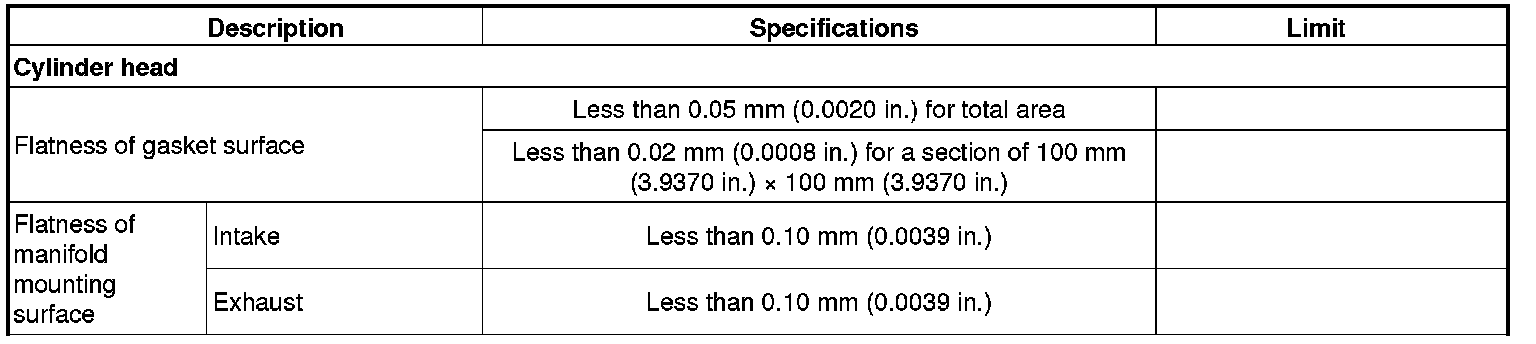

SURFACE VARIATION - WARPAGE






Camshaft Bearing

Install the camshaft bearing cap (A).






Tighten the bolts, in several passes, in the sequence as shown.

Tightening torque

M6 bolts 11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)
M8 bolts 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)






CAUTION: Be careful not to change the position and direction of bearing caps.


For Intake Manifold specifications, refer to Specifications. Specifications

For Exhaust Manifold specifications, refer to Specifications. Specifications

For Camshaft Gear/Sprocket specifications, refer to Specifications. Specifications
