Home >> Kia >> 2012 >> Soul L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Service and Repair >> Components And Components Location

Components And Components Location

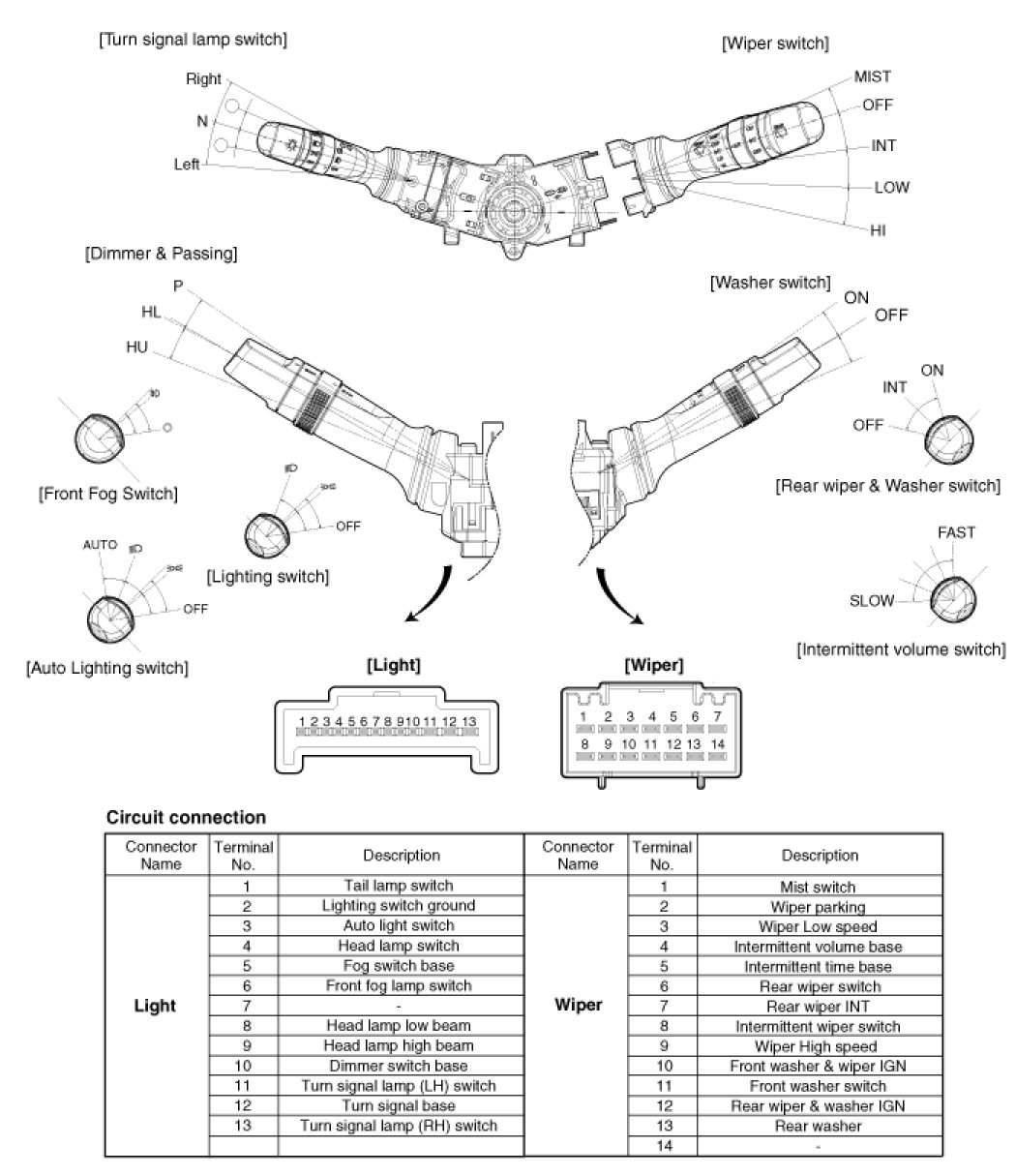

Component (1)




B->C->D>

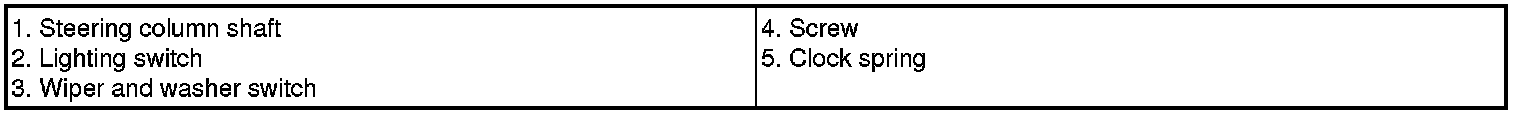

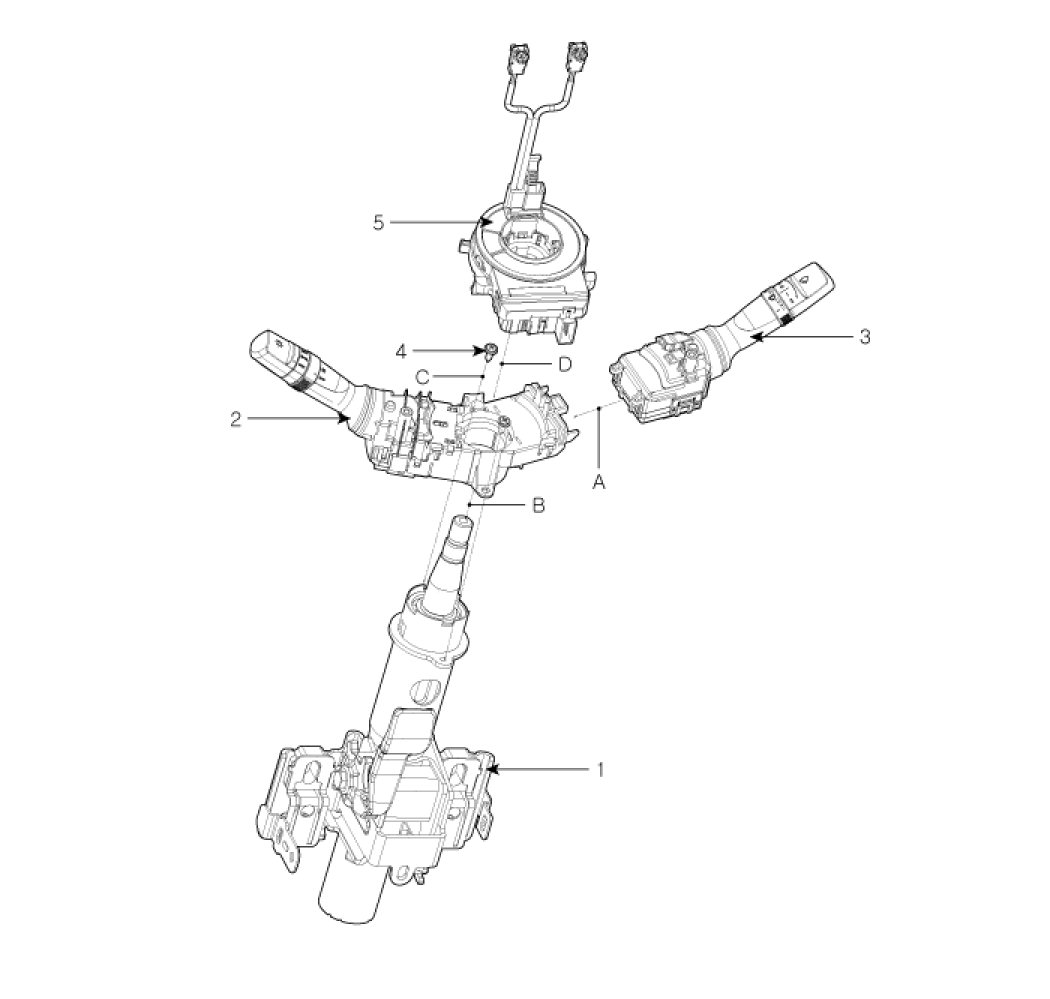

Component (2)
