Collision Avoidance Sensor: Service and Repair

Removal

Front ultrasonic sensor
1. Disconnect the negative(-) battery terminal.
2. Remove the front bumper.

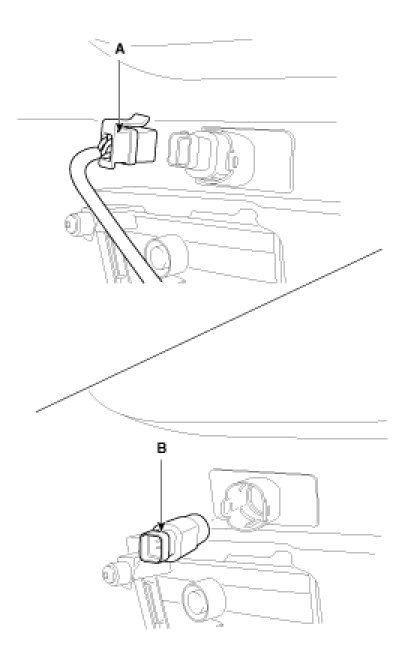

3. Disconnect the front ultrasonic sensor joint connector (A) and the fog lamp connector (B).




4. Disconnect the front ultrasonic sensor connector (A).




5. Remove the front ultrasonic sensor (B) after removing the front ultrasonic sensor housing cover (A).





Rear ultrasonic sensor
1. Disconnect the negative(-) battery terminal.
2. Remove the rear bumper.

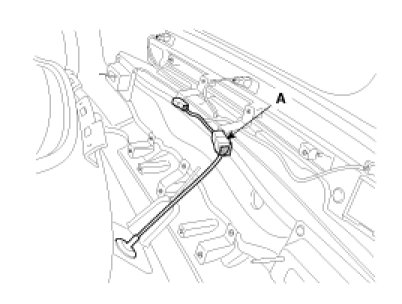

3. Disconnect the connector (A) from the rear bumper.




4. Disconnect the sensor connector (A) at the inside of the rear bumper, and then remove the sensor (B) from the housing.






Installation

Front ultrasonic sensor
1. Connect the front ultrasonic sensor connector, and then install the sensor.
2. Install the front bumper.

Rear ultrasonic sensor
1. Connect the rear ultrasonic sensor connector, and then install the sensor.
2. Install the rear bumper.
