Repair Procedures

Replacement

Front Seat Belt Replacement

CAUTION:
- When installing the belt, make sure not to damage the pretensioner.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the following items fist :
A. Front seat assembly.

B. Front door scuff trim & Rear door scuff trim.

3. To remove the seat belt anchor pretensioner (C), keep on pushing the lock pins (A) as arrow direction.
And then remove the seat belt after pushing the lock pin (B).




4. Using a screwdriver or remover, remove the center pillar lower trim (A).




5. After loosening the mounting bolts, then remove the center pillar upper trim (B).

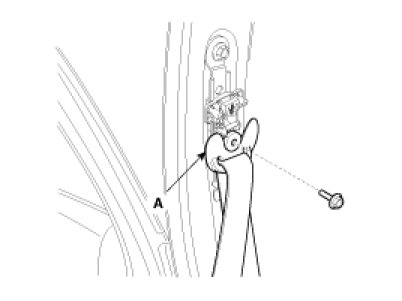

6. After loosening the mounting bolt, then remove the front seat belt upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)




7. After disconnecting the pretensioner connector lock pin, remove the SIS connector (B), Loosen the mounting bolt, then remove the pretensioner (C).




8. Installation is the reverse of removal.

Height adjuster replacement
1. Remove the following items first :
A. Front seat assembly

B. Front door scuff trim & Rear door scuff trim

C. Front seat belt lower anchor
D. Center pillar lower trim

E. Center pillar upper trim

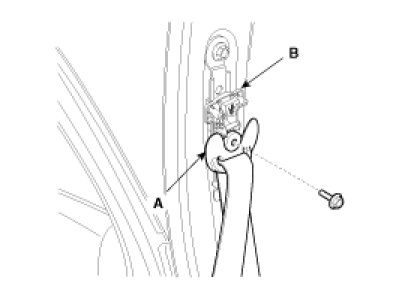

2. After loosening the mounting bolt, then remove the front seat belt upper anchor (A).
3. After loosening the mounting bolt, then remove the height adjustor (B).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




4. Installation is the reverse of removal.

Front Seat Belt Buckle Replacement
1. Remove the following items first.
A. Front seat assembly.

2. Remove the wire harness of buckle from seat.

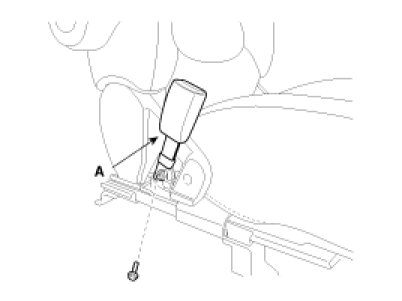

3. After loosening the mounting bolt, then remove the seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




4. Installation is the reverse of removal.
