Components And Components Location

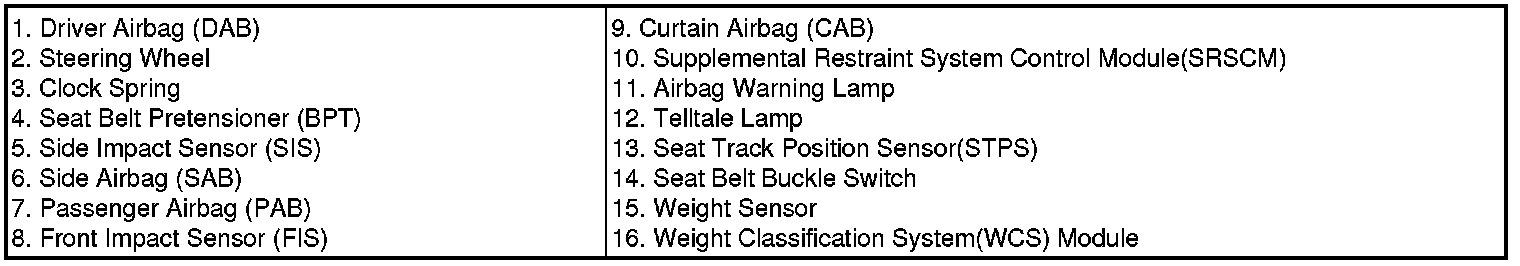

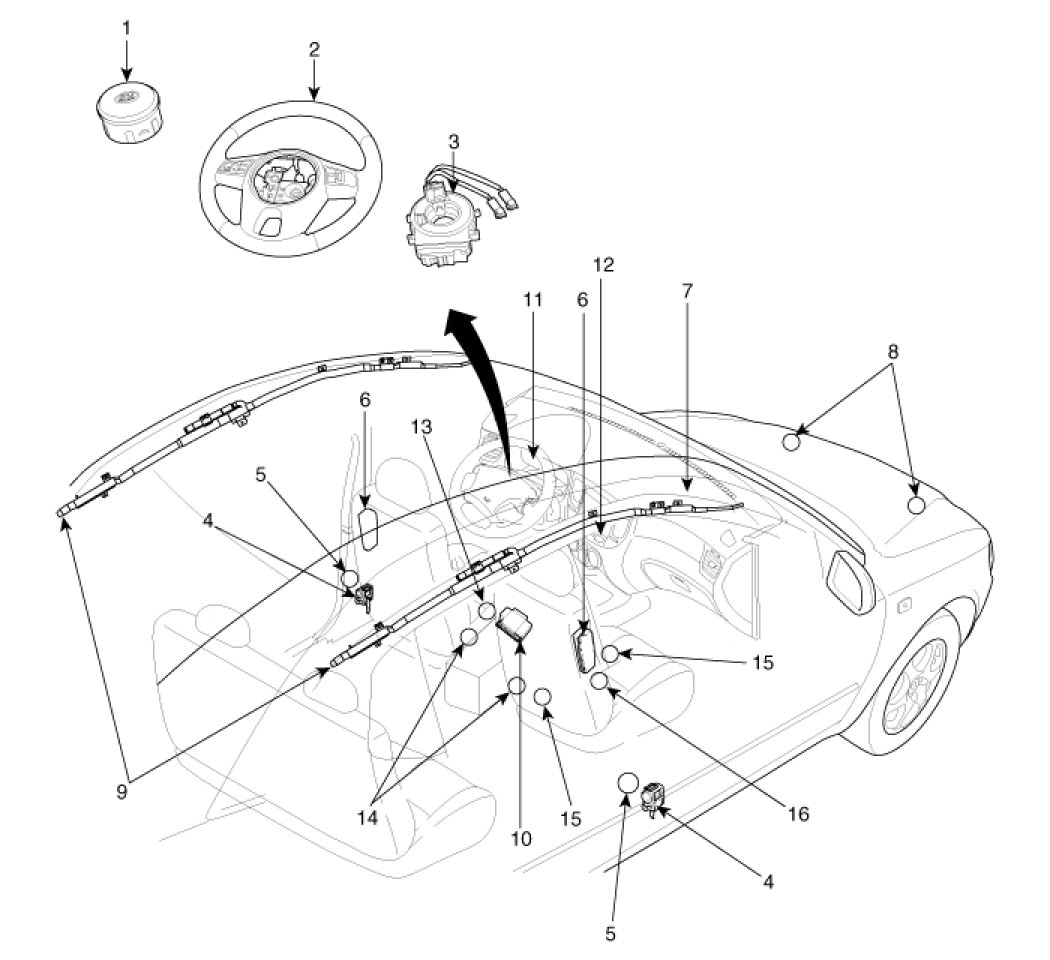

Components










Components Location

Supplemental Restraint System Control Module (SRSCM)




Front Impact Sensor (FIS)

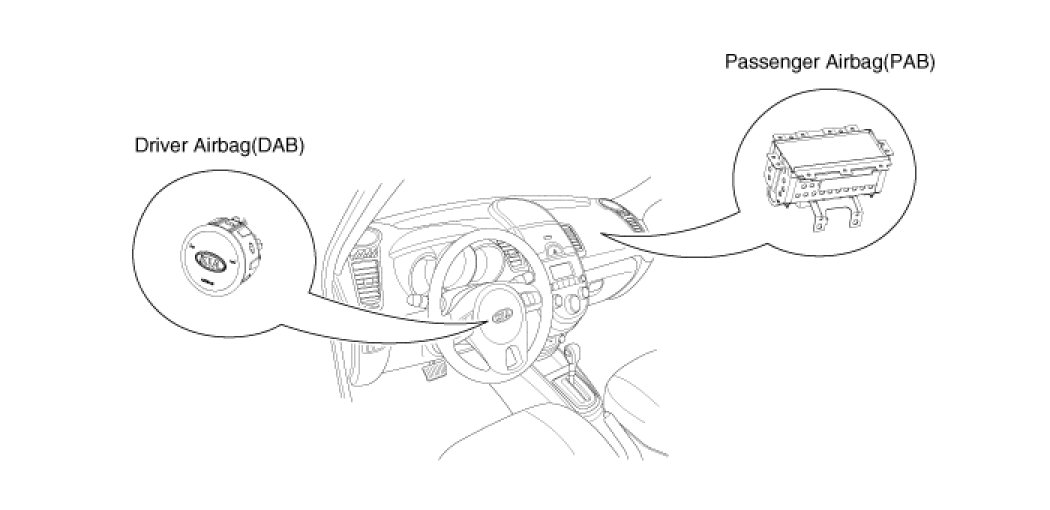

Driver Airbag (DAB) / Passenger Airbag (PAB)

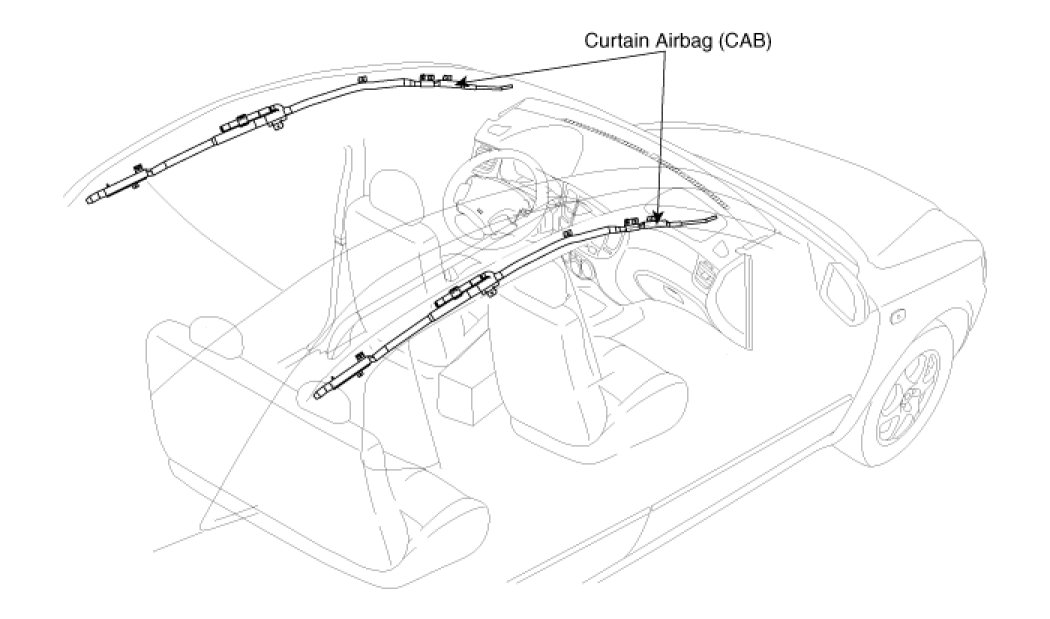

Curtain Airbag (CAB)

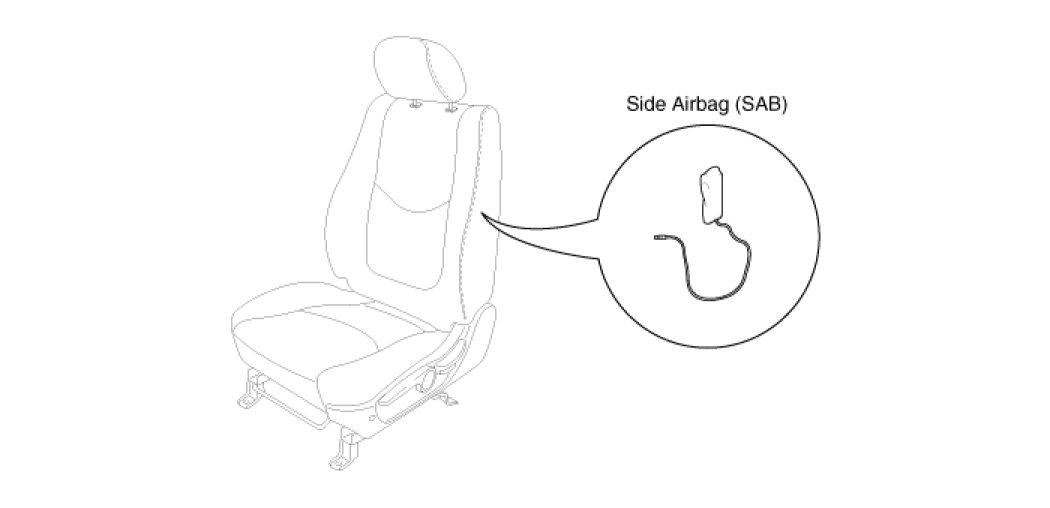

Side Airbag (SAB)

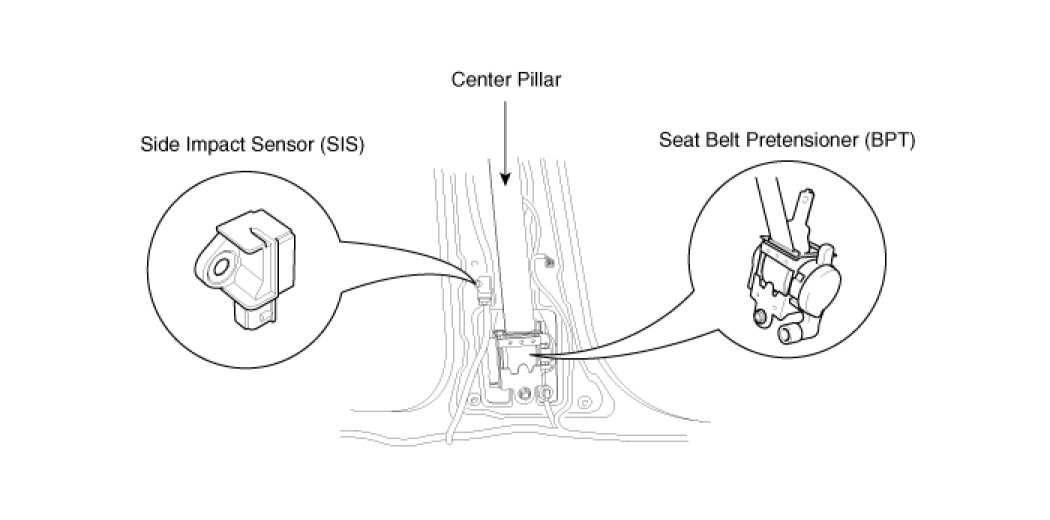

Seat Belt Pretensioner (BPT)/Side Impact Sensor (SIS)
