Fuel Pump: Service and Repair

Removal

1. Release the residual pressure in fuel line .
2. Remove the rear seat cushion .
3. Open the service cover (A).




4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).




5. Disconnect the fuel feed tube quick-connector (A), the vapor hose (B) and the vapor tube quick-connector (C).

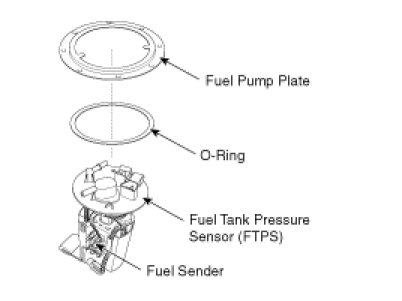

6. Remove the fuel pump installation nuts and remove the fuel pump assembly.






Installation

1. Installation is reverse of removal.

Fuel pump installation nut:2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

CAUTION:
When installing the fuel pump module, be careful not to get the seal-ring entangled.
