Evaporative Emission Control Canister: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

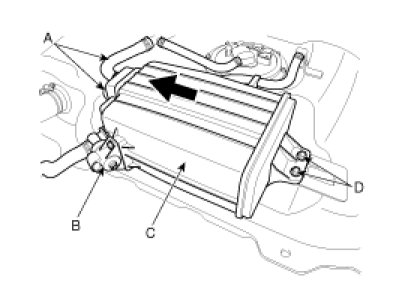

2. Disconnect the vapor hoses (A).
3. Remove the canister close valve (B) after removing the installation bolts.
4. Remove the canister assembly (C) in the direction of the arrow after removing the installation bolts (D).






Inspection

1. Check for the following items visually.
- Cracks or leakage of the canister
- Loose connection, distortion, or damage of the vapor hose/tube

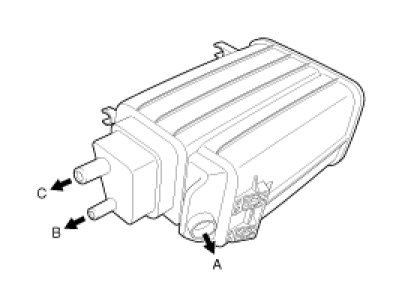

A: Canister <-> Atmosphere
B: Canister <-> Intake manifold
C: Canister <-> Fuel tank

Installation

1. Installation is the reverse of removal.
