Cabin Air Filter / Purifier: Service and Repair

Replacement

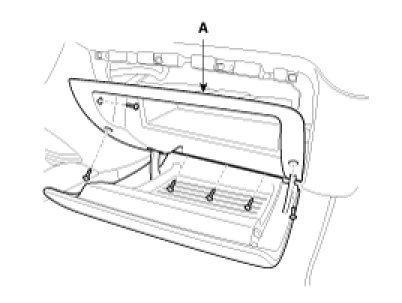

1. Loosen the mount screw and then remove the glove box (A).




2. Remove the filter cover (A) with pushing the knob.

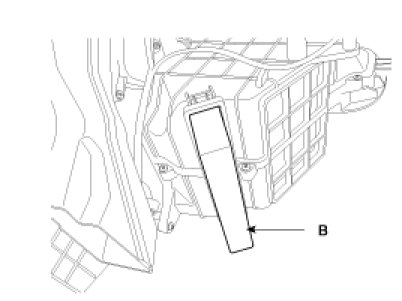

3. Replace the air filter (B), install it after making sure of the direction of air filter.




4. Installation is the reverse order of removal.

NOTE:
- In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
