Turn Signal Lamp: Service and Repair

Removal

Side marker
1. Disconnect the negative (-) battery terminal.

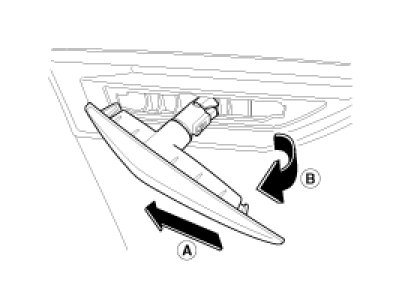

2. Push the side marker lamp assembly in the direction of (A) and then pull it in the direction of (B).





CAUTION:
Be careful not to damage the fixing clip.

3. Replace the lamp bulb.

Installation

Side marker
1. Install the lamp bulb.
2. Install the the side marker lamp assembly.
