Electrical Diagrams

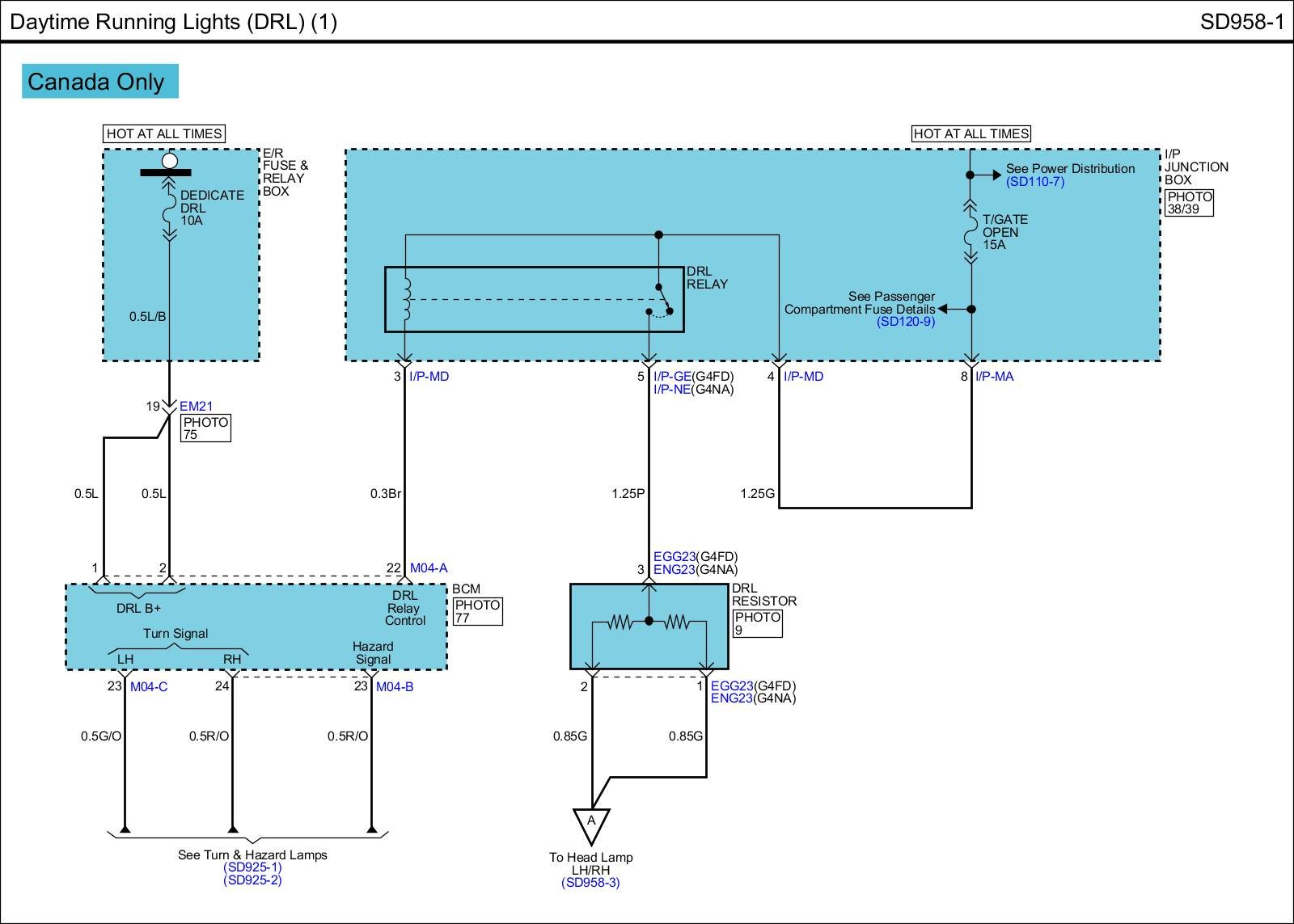

SD958-1 Daytime Running Lights (DRL) (1):

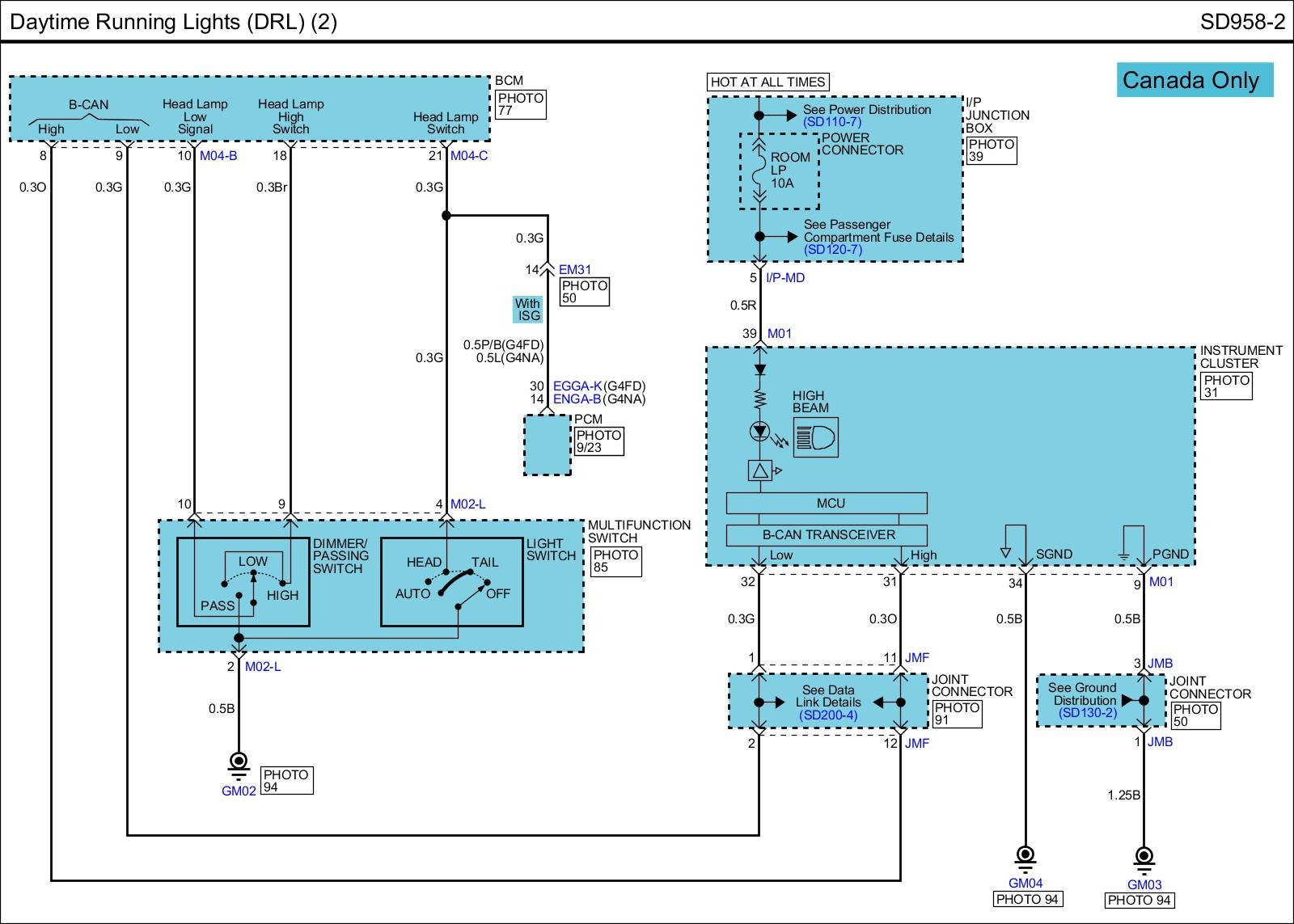

SD958-2 Daytime Running Lights (DRL) (2):

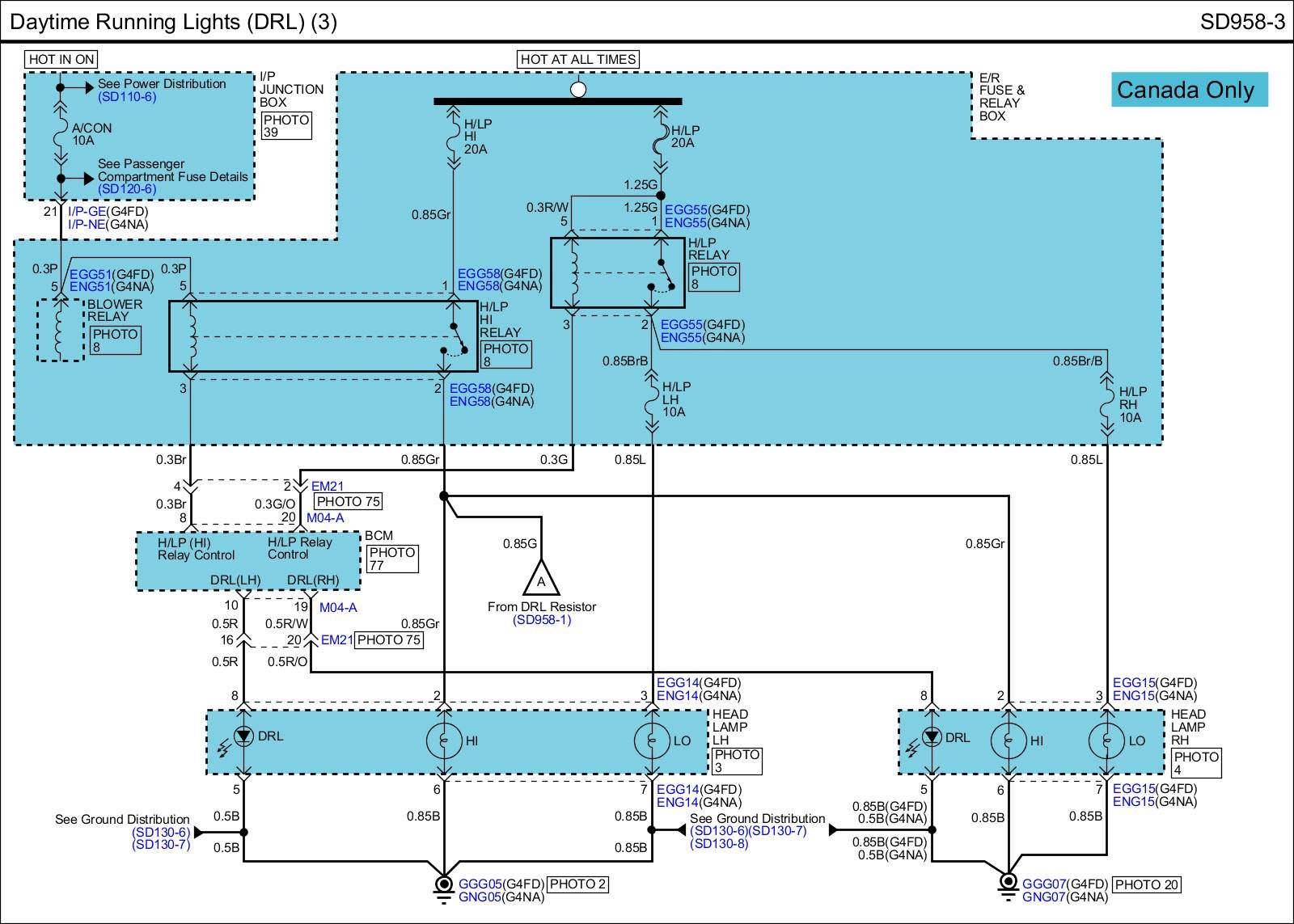

SD958-3 Daytime Running Lights (DRL) (3):

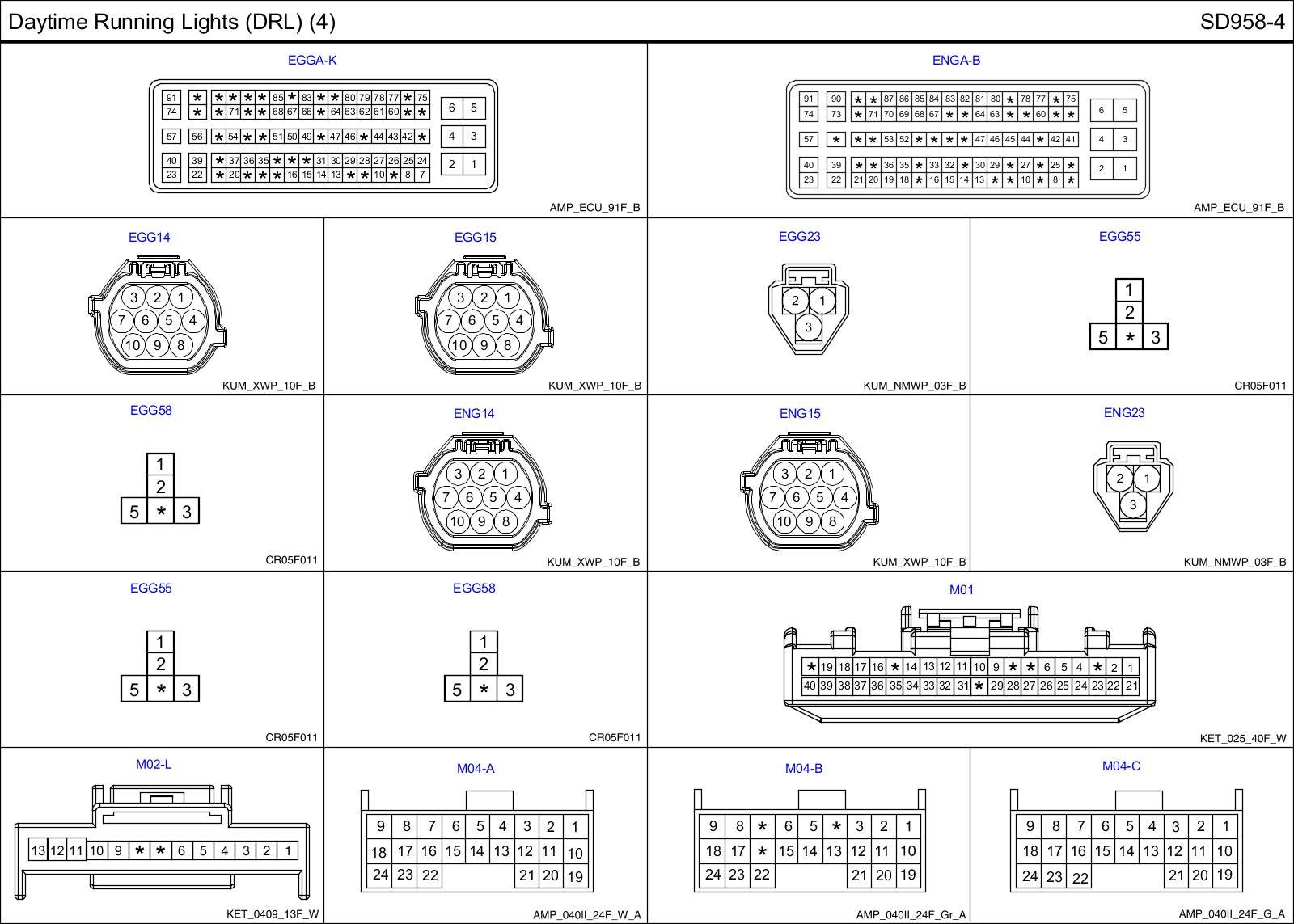

Daytime Running Lights (DRL) (4) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
