Electrical Diagrams

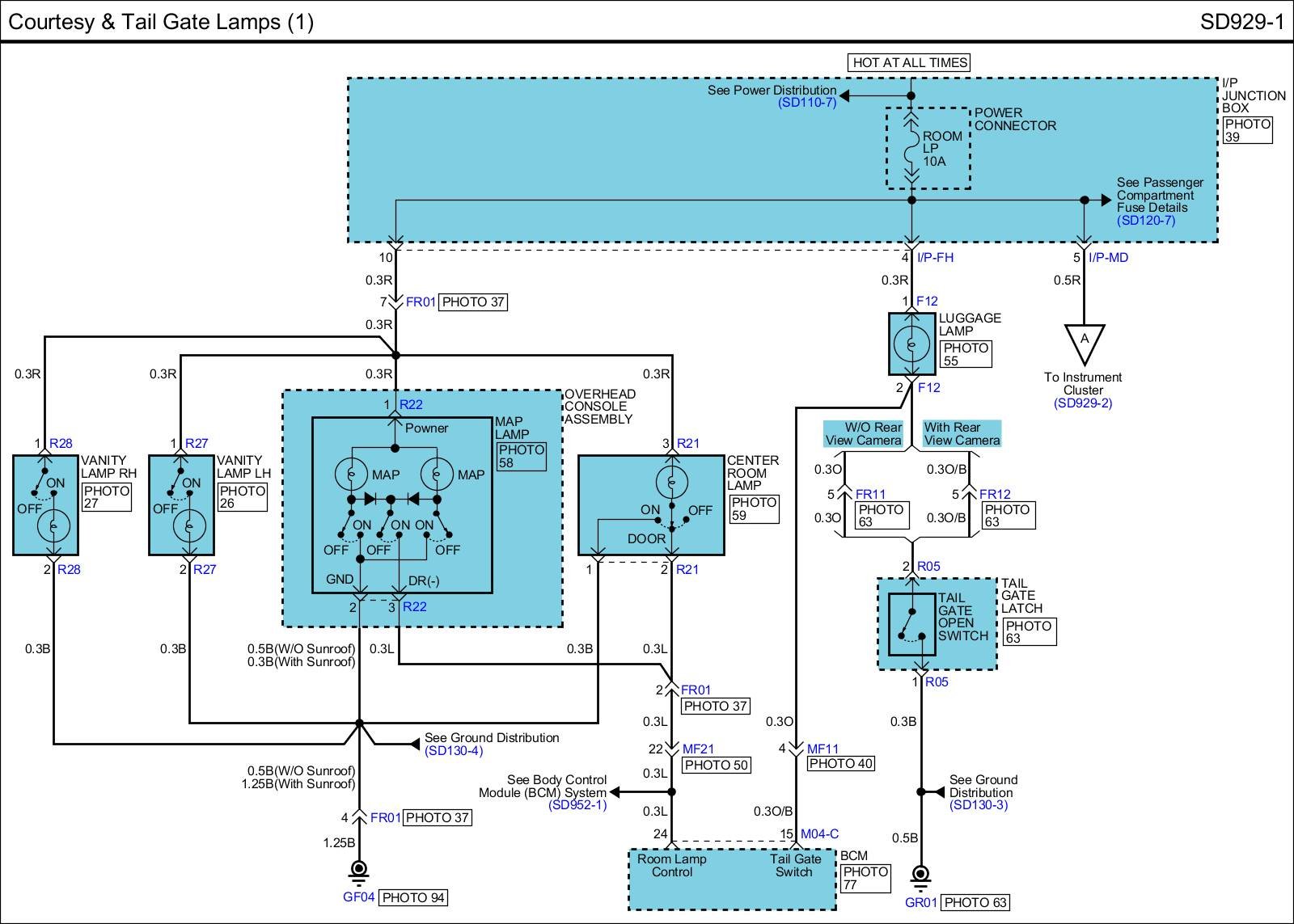

SD929-1 Courtesy & Tail Gate Lamps (1):

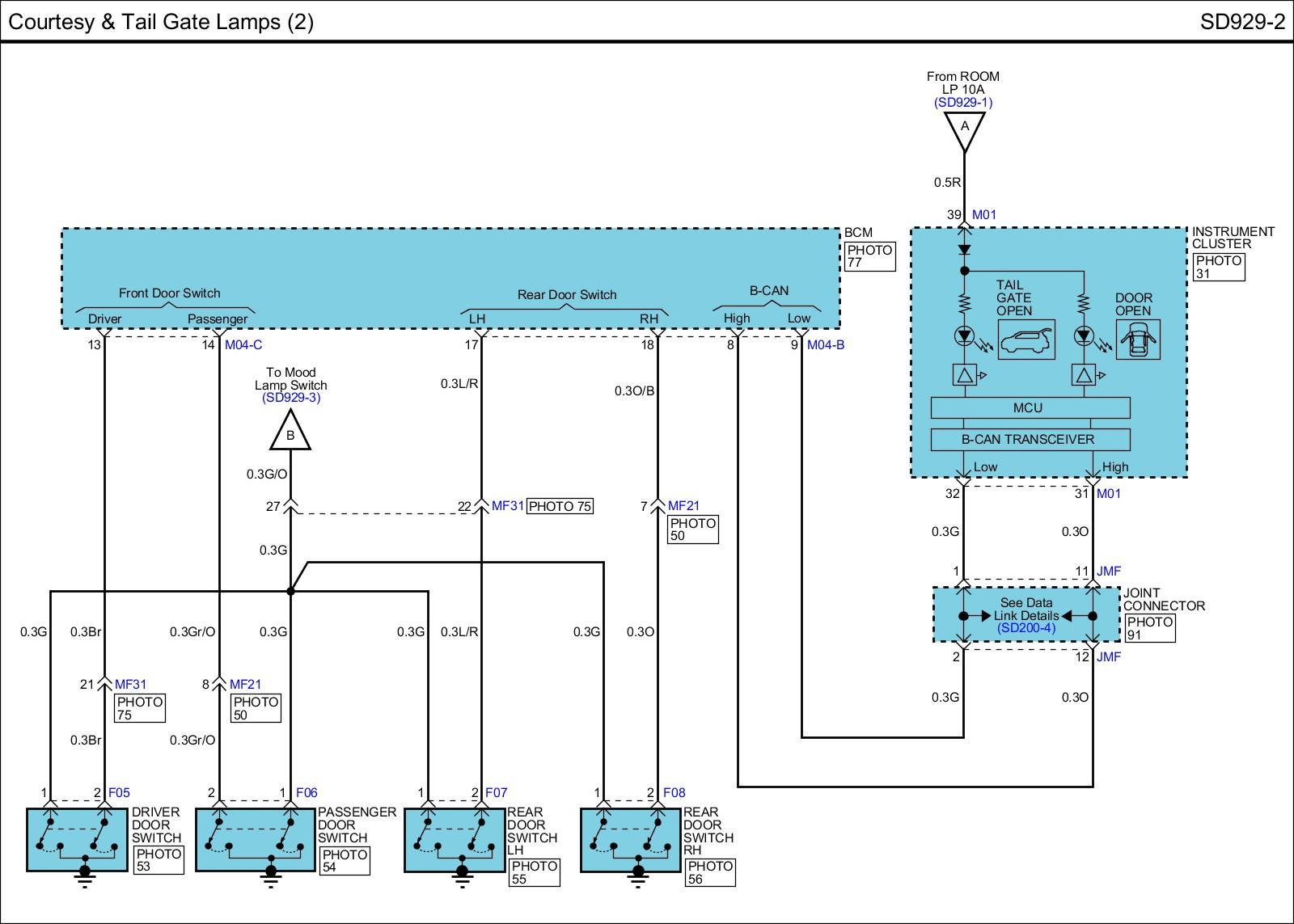

SD929-2 Courtesy & Tail Gate Lamps (2):

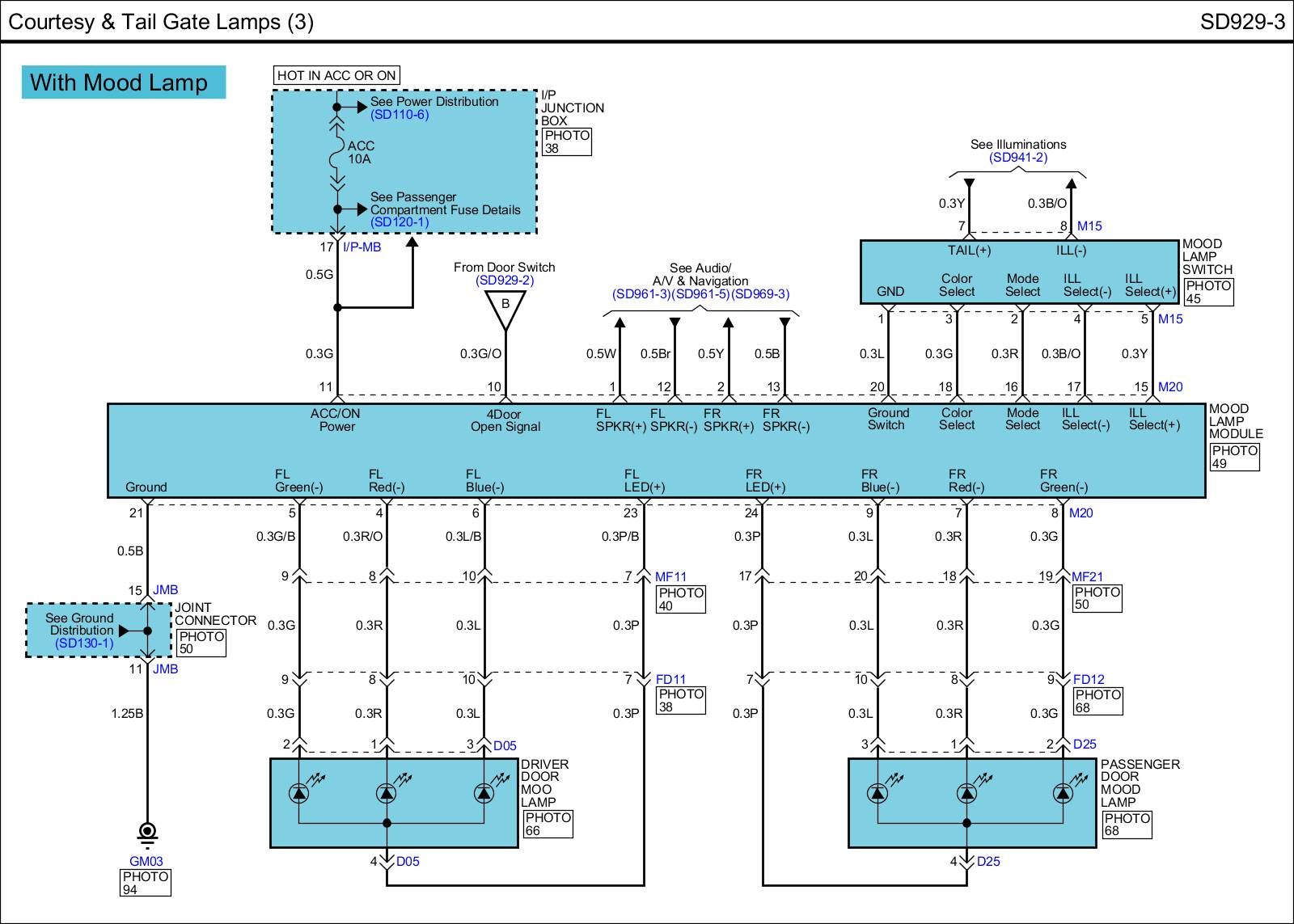

SD929-3 Courtesy & Tail Gate Lamps (3):

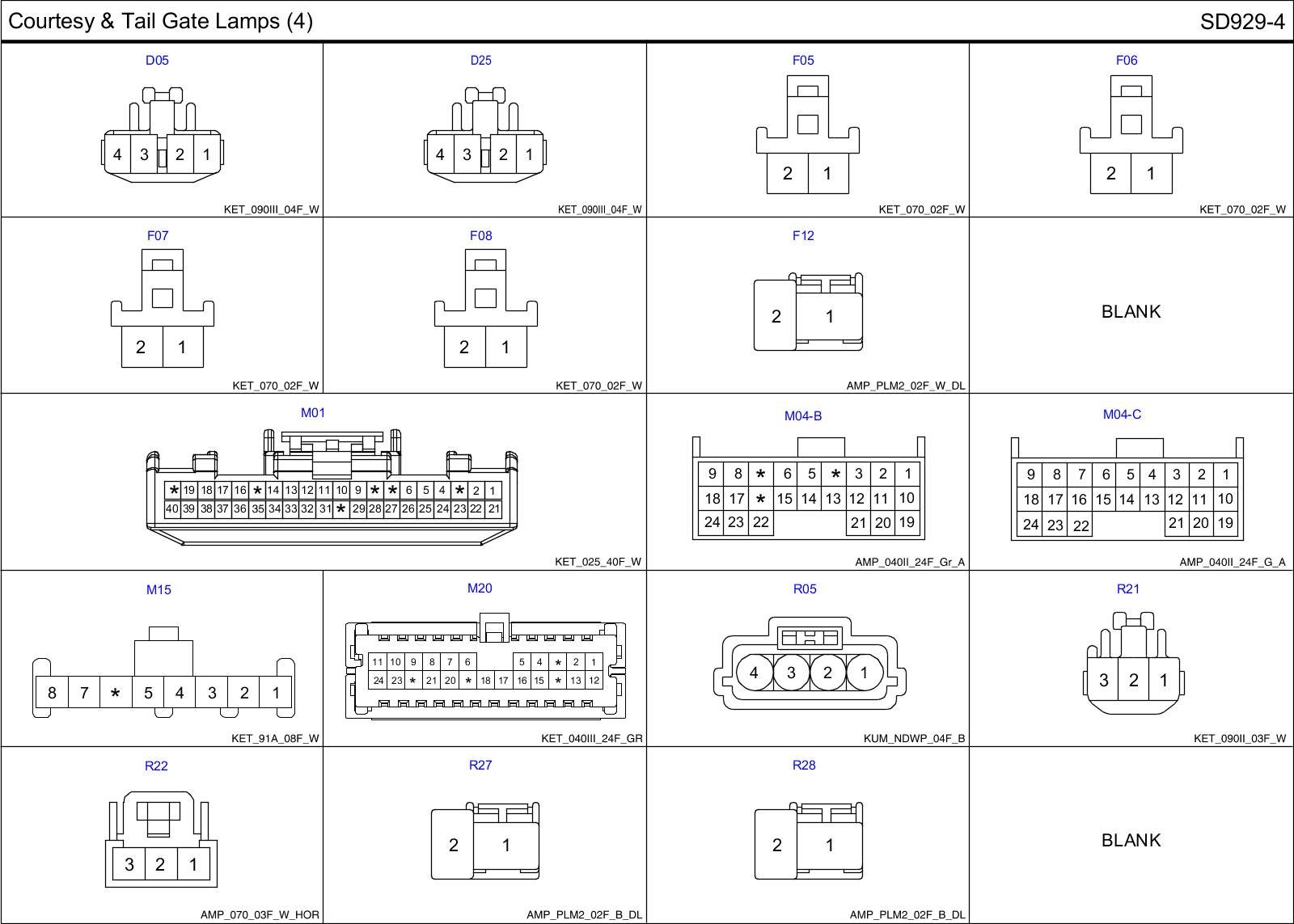

Courtesy & Tail Gate Lamps (4) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
