Components And Components Location





Component

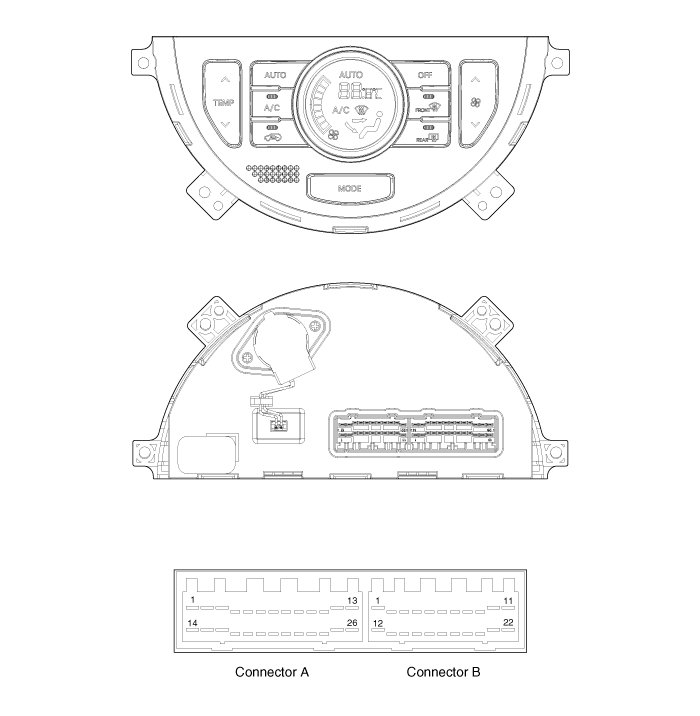

CDP Type

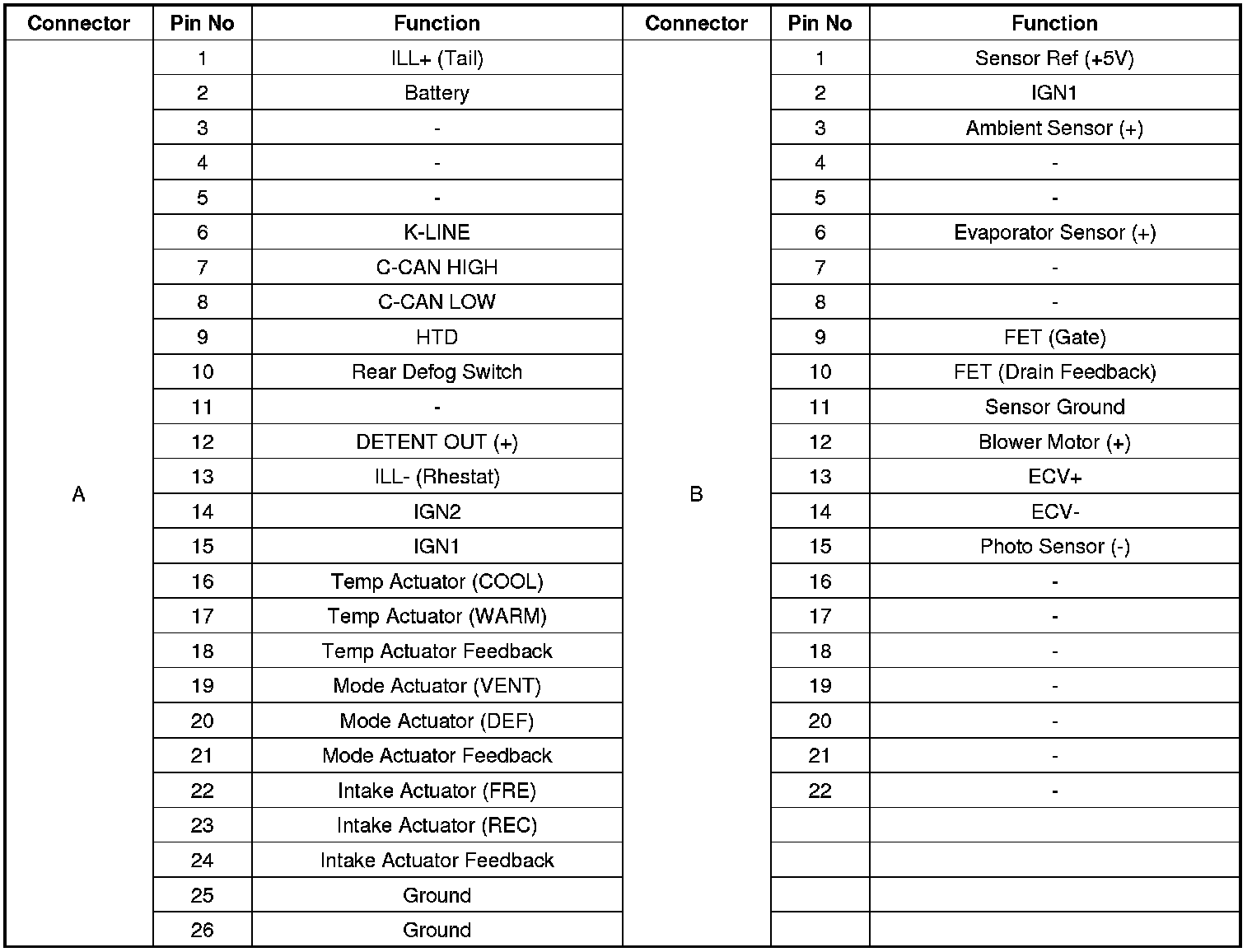

Connector pin function

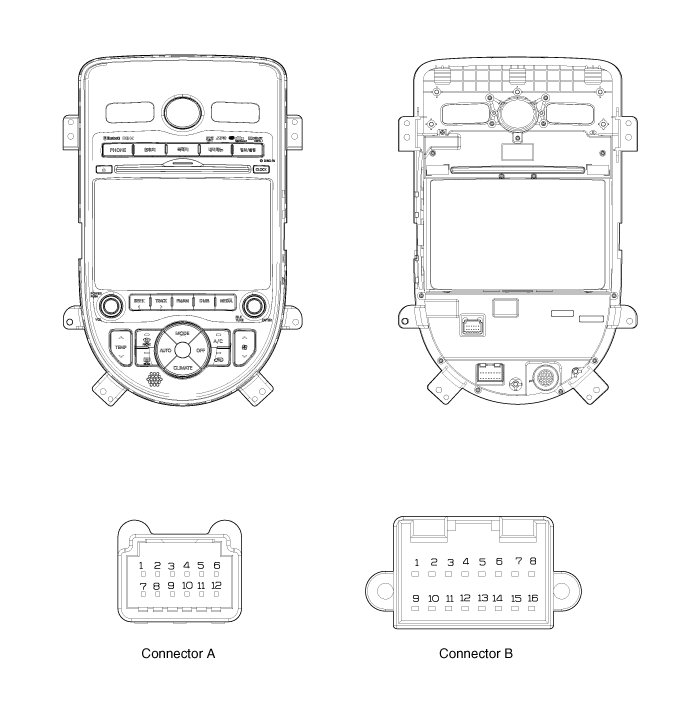

AVN Type

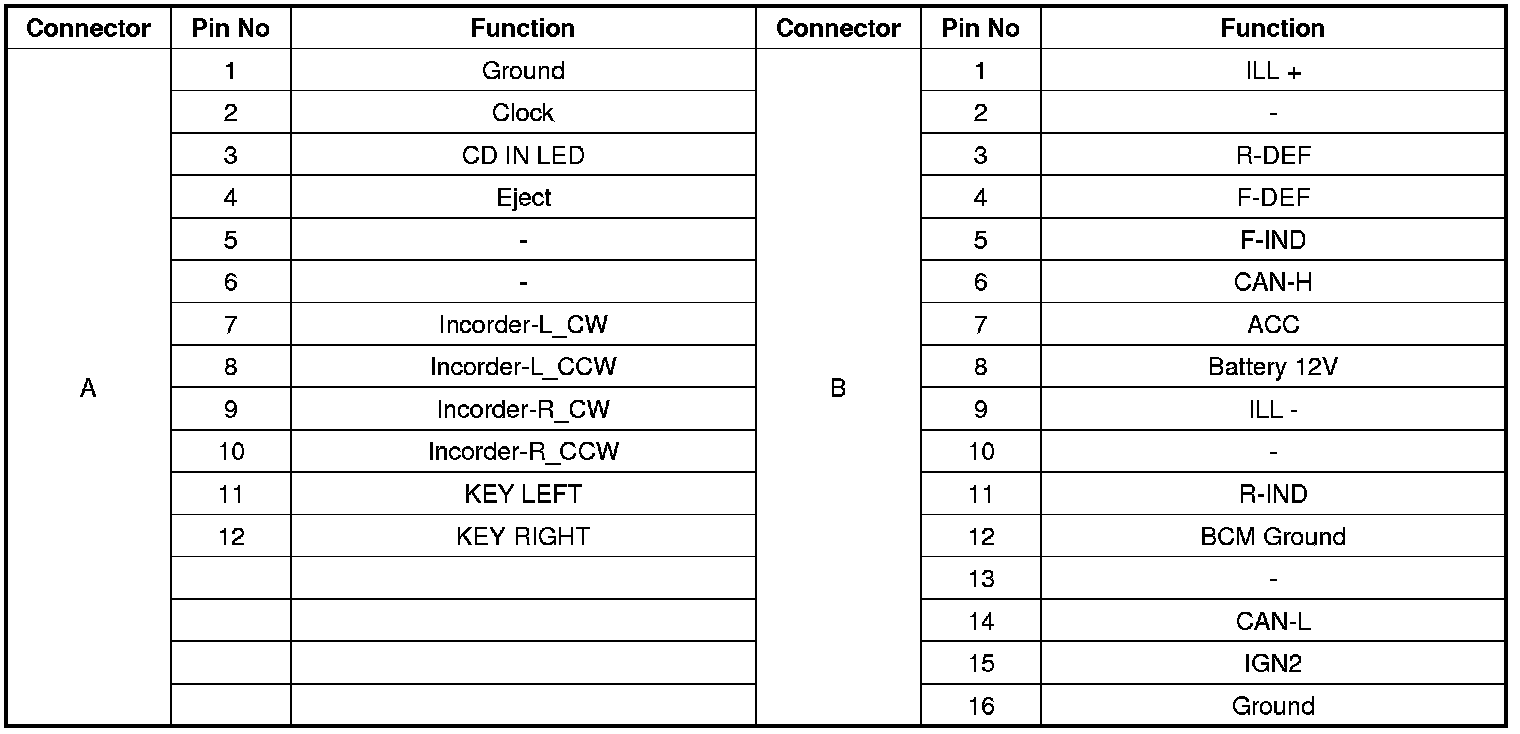

Connector Pin Function
