Turn Signals

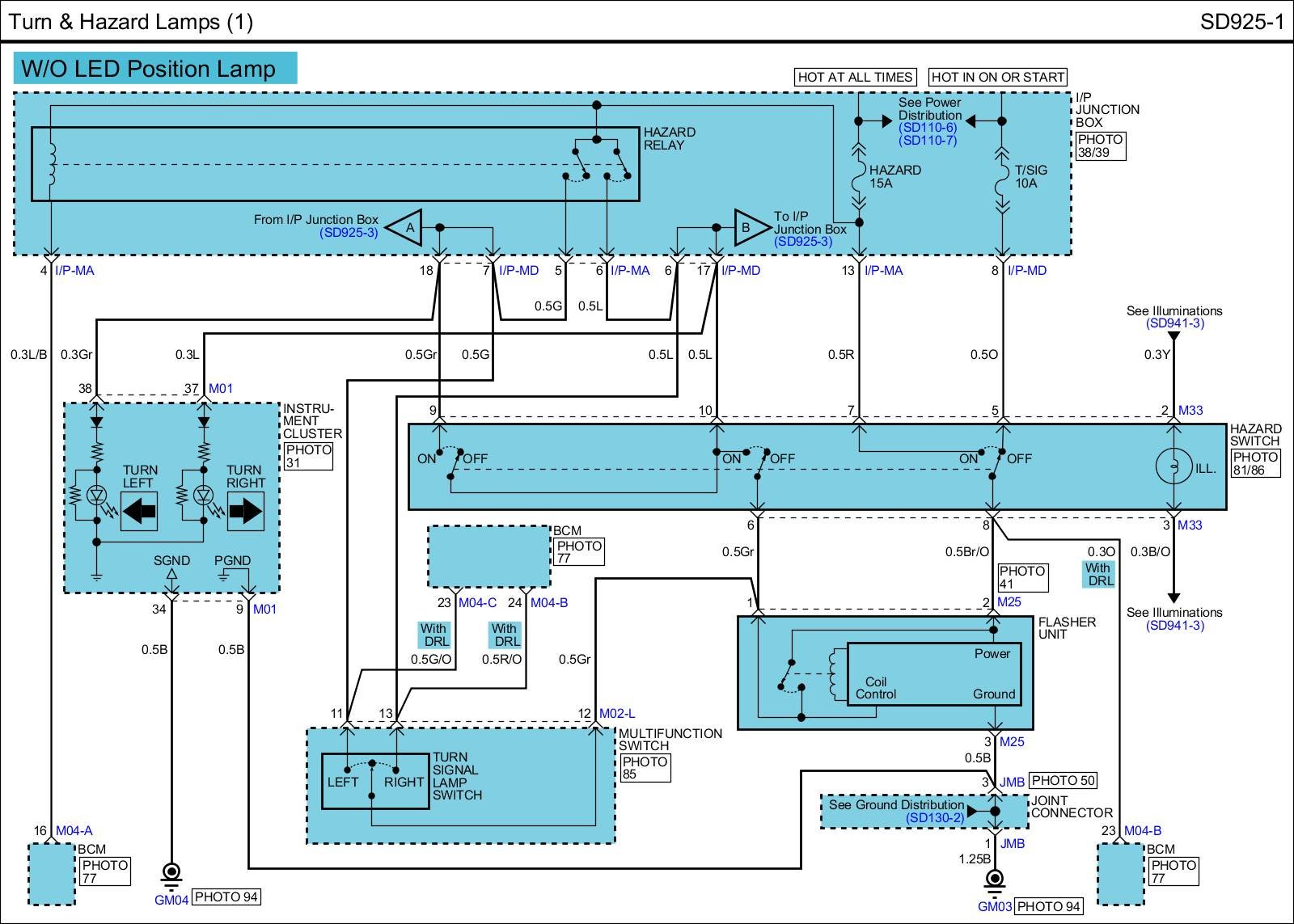

SD925-1 Turn & Hazard Lamps (1):

SD925-2 Turn & Hazard Lamps (2):

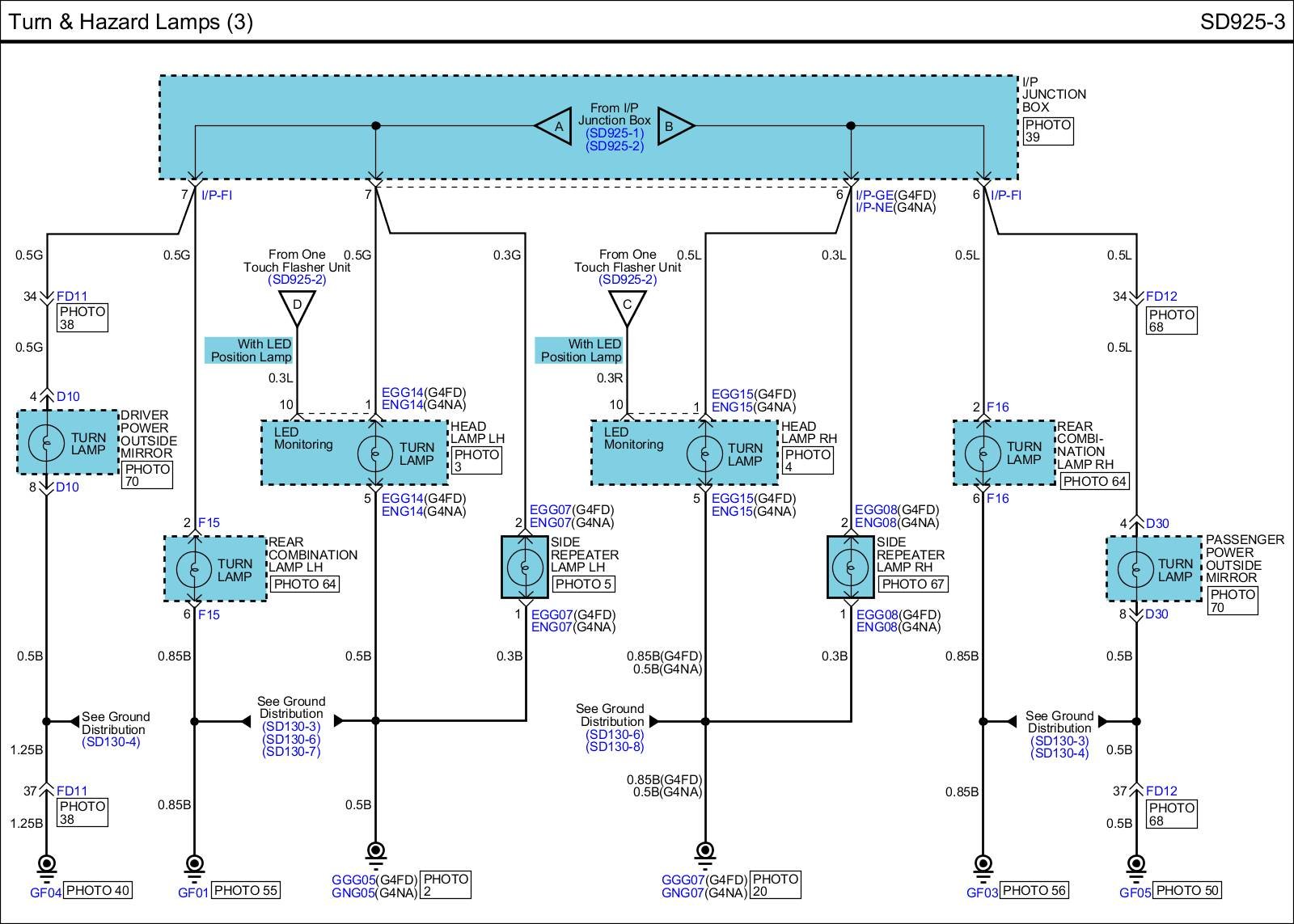

SD925-3 Turn & Hazard Lamps (3):

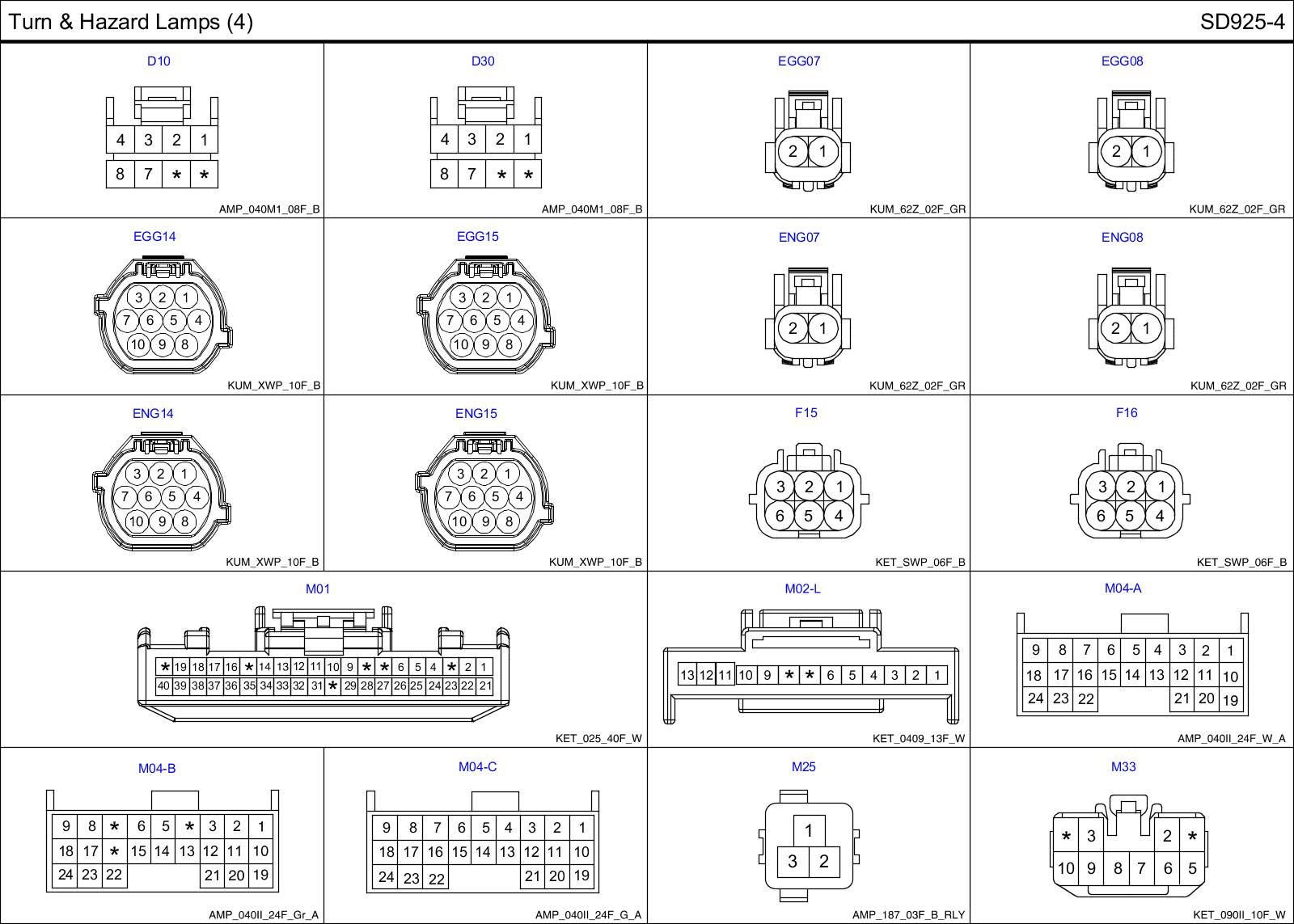

Turn & Hazard Lamps (4) Connector Pin Outs:

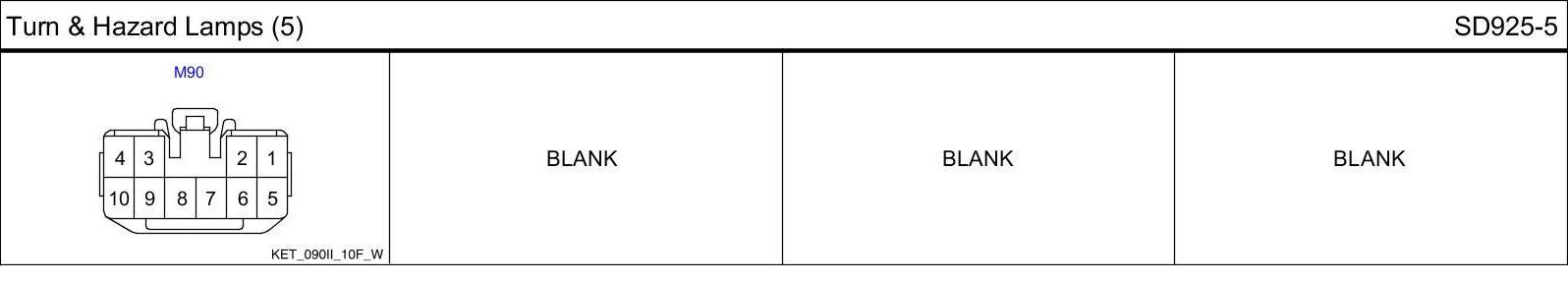

Turn & Hazard Lamps (5) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
