Home >> Kia >> 2012 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Injector

Fuel Injector

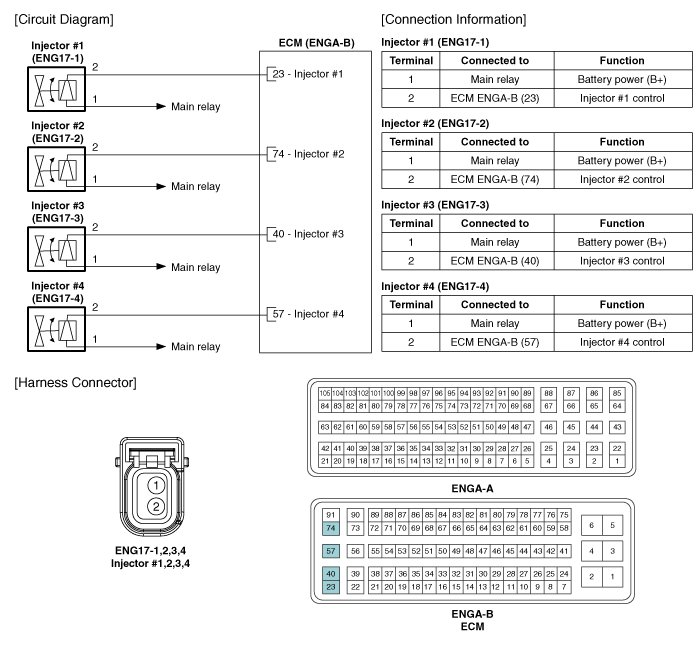

Circuit Diagram

(M/T)




(A/T)
