Diagram Set SD952 (Body Control Module (BCM) System)

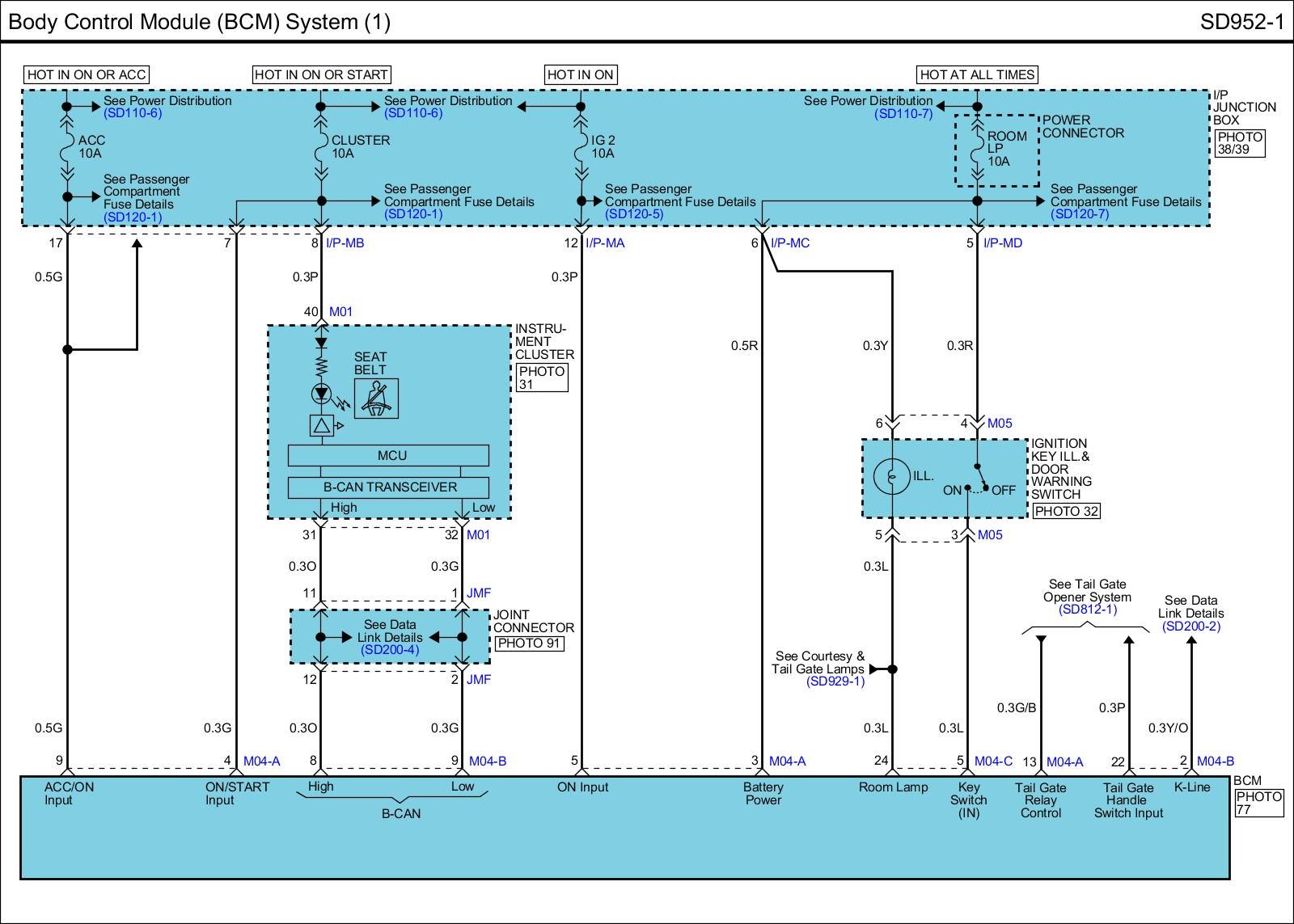

SD952-1 Body Control Module (BCM) System (1):

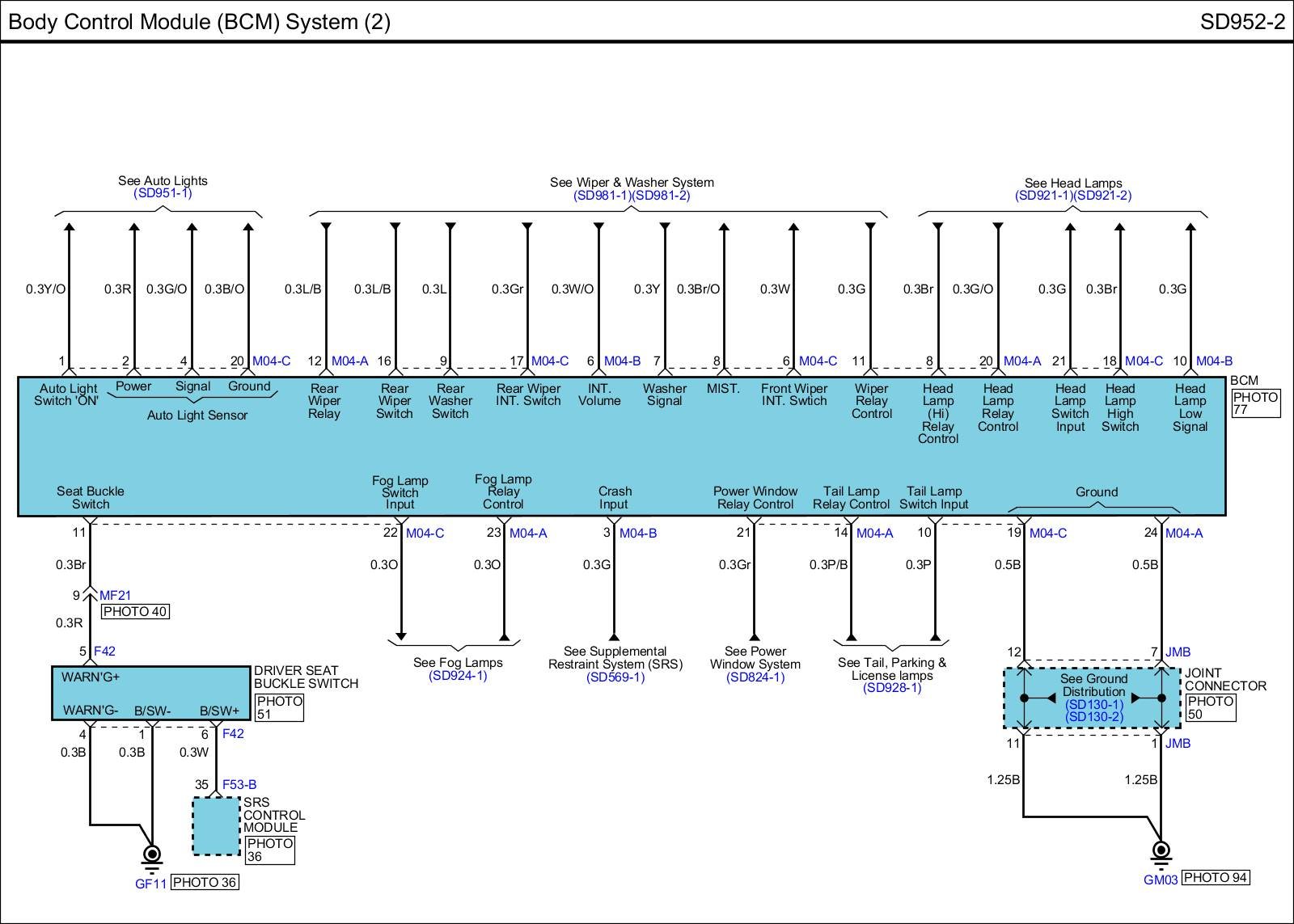

SD952-2 Body Control Module (BCM) System (2):

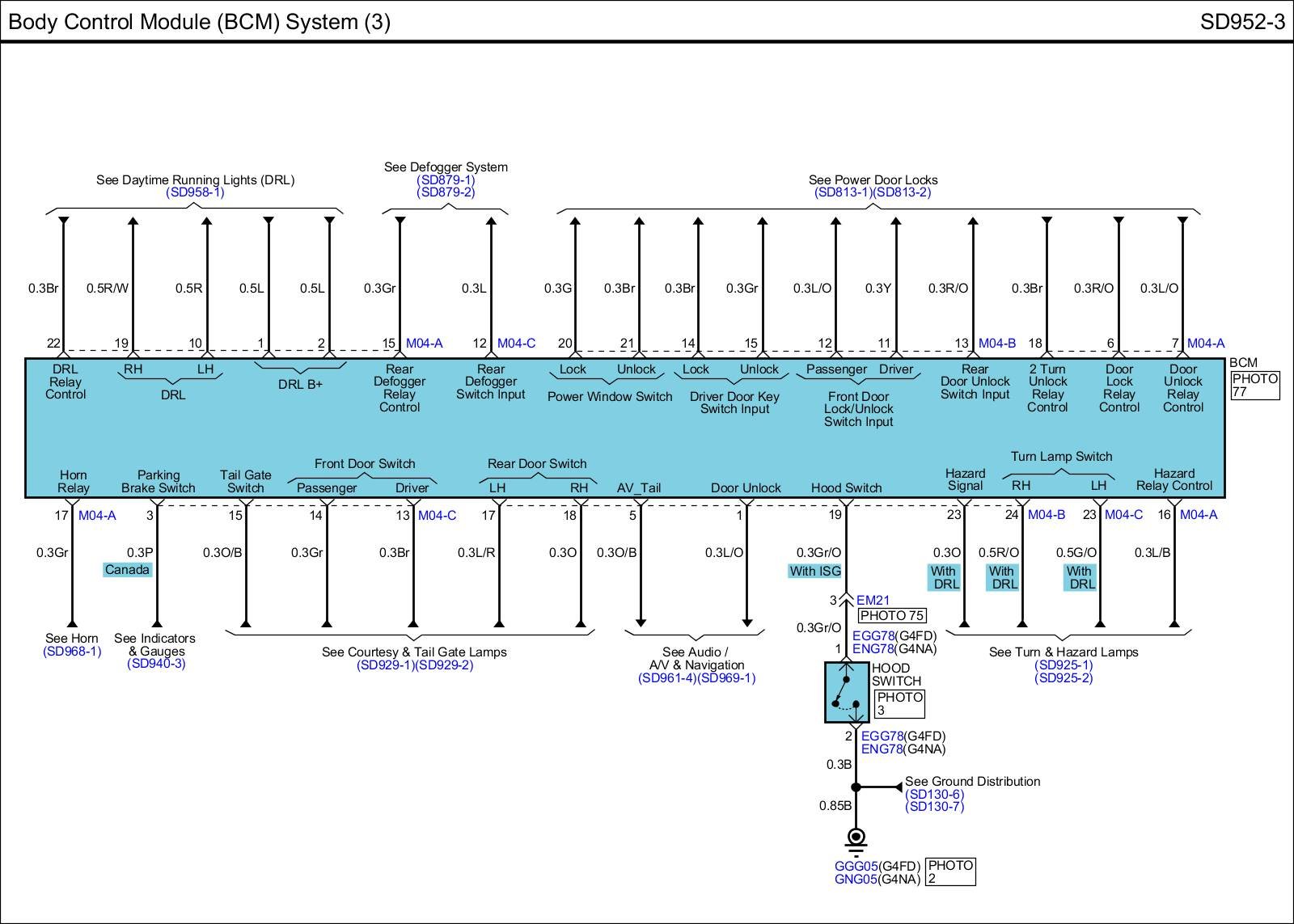

SD952-3 Body Control Module (BCM) System (3):
