Diagram Set SD889 (Seat Warmer System)

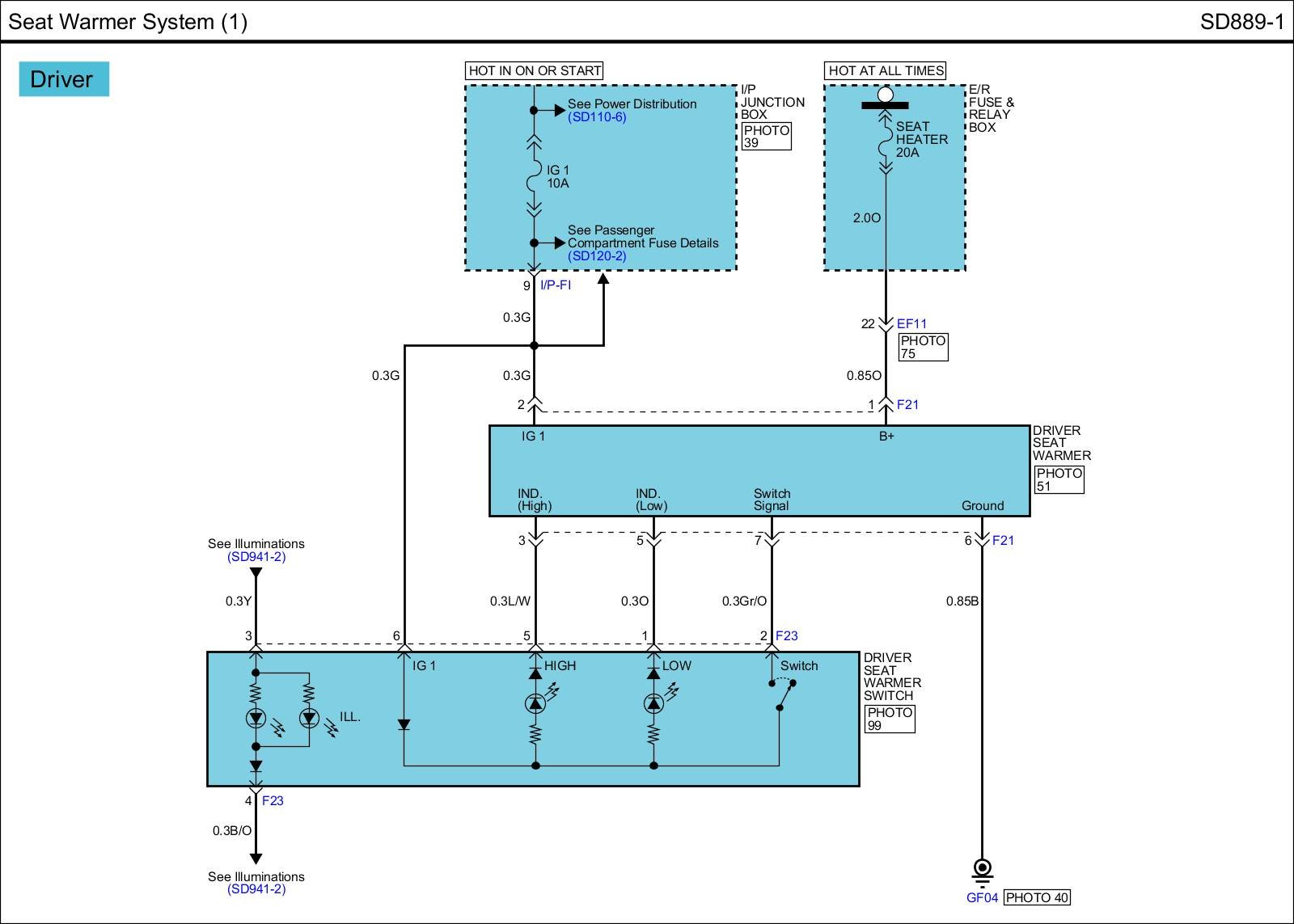

SD889-1 Seat Warmer System (1):

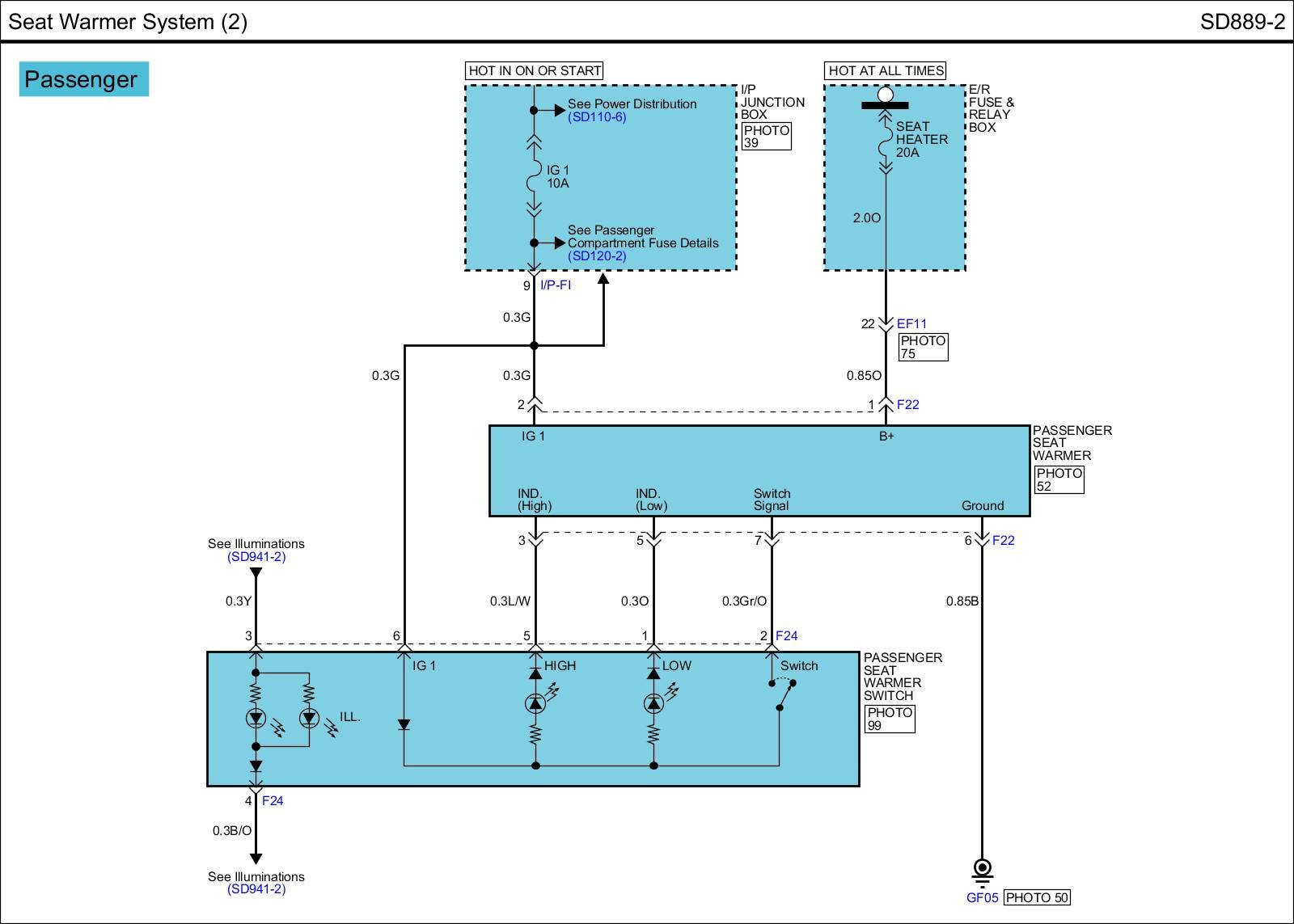

SD889-2 Seat Warmer System (2):
