Home >> Kia >> 2012 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD452 (Shift & Key Lock System)

Diagram Set SD452 (Shift & Key Lock System)

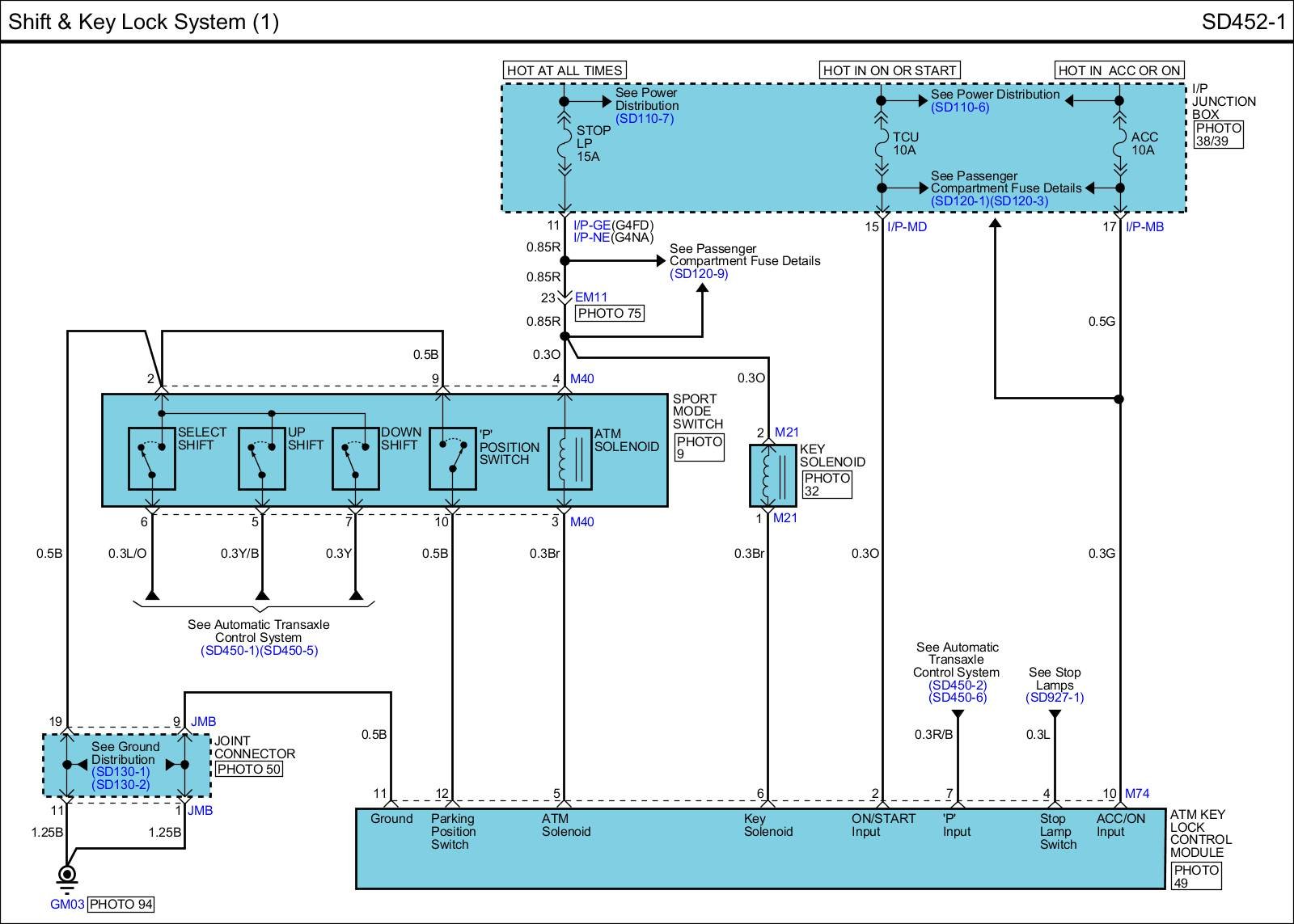

SD452-1 Shift & Key Lock System (1):
